Summary

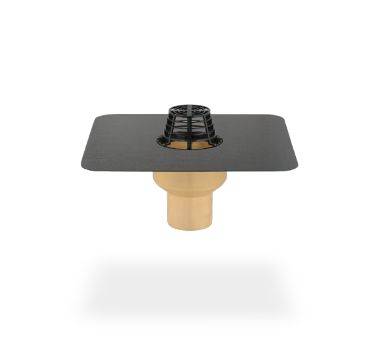

Range of small, strong, flexible thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.
-
-
Application
For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.
-
-
Description
Range of small, strong, flexible thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.
Features and benefits:
- Compact design.
- High discharge rate, considerably above the requirements of DIN EN 1253-2.
- Also available with foamed-in heating element.
- With foamed-in connection sleeve of choice, screw-on flange or adhesive flange.
- Not sensitive to the weather (UV/ IR radiation, rain/ snow, temperature, ozone, etc.).
- Impact and shock resistant.
- Durable.
- Up to size DN 125.
- Suitable for bridging all insulation thicknesses from 60 to 520 mm.
-
-
Product certifications
- TUV - Safety and Quality Report LGA Certification - EN 1253-2:2015
-
-
Digital objects
-
-
Color
Black, Beige
-
-
Material
Polyurethane (PUR), Bitumen, PVC, Thermoplastic polyolefin (TPO), Thermoplastic elastomer (TPE)
-
-
Shape
Circle, Square
-
-
Warranty description
Six year
-
-
SKU Code
150200, 150400, 150400, 150600, 150300, 150500, 150700, 151400, 151600, 151800, 151500, 151700, 151900, 150299, 150199, 150499, 150699, 150399, 150599, 150799, 151499, 151699, 151899, 151599, 151799, 151999, 152290, 150190, 150490, 150690, 150390, 150590, 150790, 151490, 151690, 151890, 151590, 151790, 151990
-
-
Specification
Classification data
Roof construction
-
-
-
Form
-
-
-
Roof insulation thickness
-
-
-
Material
Body: Rigid polyurethane integral foam.
-
-
Grating
Domed.
-
-
Spigots
DN70, outer diameter 75 mm., DN90, outer diameter 90 mm., DN100, outer diameter 110 mm., DN125, outer diameter 125 mm.
-
-
Integral accessories
Bitumen sleeve 495 x 495 mm.
-
-
Additional properties
Orientation
Vertical.
-
-
Standard
For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.
-
-
Accessories
-
-
-
Reaction to fire
Euroclass E/ B2 normal flammability.
-
-
Sustainability data
Country of material origin
Germany
-
-
Country of product manufacture
Germany
-
-
Material
Polyurethane (PUR), Bitumen, PVC, Thermoplastic polyolefin (TPO), Thermoplastic elastomer (TPE)
-
-
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
13.4
Certified
A1–A3 ('Production stage') :
-
Certified
A1–A3 ('Production stage') :
-
