Polyfoam™ Floorboard Super
Polyfoam™ Floorboard Super
Polyfoam™ Floorboard Super

Last verified by manufacturer over a year ago

Polyfoam XPS Ltd

Last verified by manufacturer over a year ago

Polyfoam XPS Ltd

Last verified by manufacturer over a year ago

Polyfoam XPS Ltd
Summary

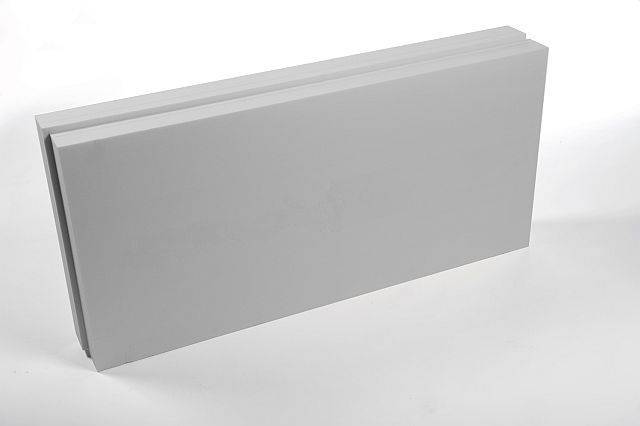

A rigid extruded polystyrene (XPS) board for floor construction.
-
-
Application

Suitable for almost any floor construction including:

  • Below a concrete slab;
  • Below a screed;
  • Below chipboard.


Application fields include:

  • Ground floor – insulation below slab; below screed, below T&G flooring.
  • Beam & Block;
  • Basements;
  • Swimming pool basin.
-
-
Description

A rigid extruded polystyrene (XPS) board suitable for almost any floor construction.


Features and benefits:

  • 50 to 100mm typical thickness
  • Square edged boards.
  • Very high compressive strength.
  • Protects the damp proof membrane from damage.
  • Highly resistant to water absorption.
  • Robust and can tolerate traffic from following trades.
  • Represents no known threat to the environment and has zero Ozone Depletion Potential (ODP) and a Global Warming Potential (GWP) of less than five.
  • 100% recyclable.


Technical characteristics:

  • Vapour resistivity: The XPS content of Polyfoam Floorboard Super has a water vapour resistivity of 750 MNs/g·m when tested in accordance with EN 12086.
  • Moisture absorption: 0.7% by volume when tested in accordance with EN 12087.
  • Resistant to moisture absorption and can be laid in standing water with negligible impact on the performance of the product as determined by testing to EN 12087.
  • Durability: Continuous service temperature limits up to +70ºC.
-
-
Digital objects
-
-
Color
Grey
-
-
Material
High density extruded polystyrene (XPS)
-
-
Shape
Rectangle
-
-
Length
1250 mm
-
-
Width
600 mm
-
-
Height
Bespoke
-
-

Specification

Standard
To BS EN 13164.
-
-
Third party product certification
UKCA, UKNI & CE Marked to BS EN 13164; BBA certified and conforms with the Construction Products Regulation.
-
-
Compressive strength (minimum) at 10% compression
500 kPa.
-
-
Thermal conductivity (maximum)
0.034 W/m·K.
-
-
Thickness
50 mm.
-
-
Face size (length x width)
1250 x 600 mm.
-
-
Edges
Lap joint.
-
-

Additional properties

Global warming potential
5.
-
-
MaximumOperatingTemperature
70°C.
-
-
Thermal resistance
1.45 m²K/W.
-
-
Water vapour resistance
750 MNs/g·m.
-
-
Water absorption
0.70.
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
France
-
-
Country of product manufacture
France
-
-
Recyclability
100%
-
-
