Summary
A range of stainless steel frame cramps for fixing to concrete, steel and masonry.
-
-
Application

Suitable for safely fixing to concrete, steelwork or masonry.

-
-
Description

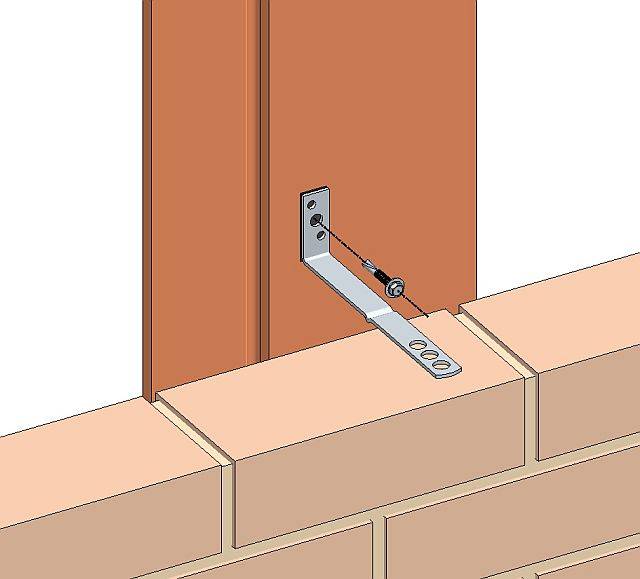

Frame cramps can be fixed to concrete, steelwork or masonry and have two outer 6 mm diameter holes and one central 7 mm diameter hole or an 8 x 30 mm fixing slot. Wincro WBEB M6 Expansion bolts are recommended for fixing to concrete, WBXS set screws or WBSD self-drill self-tapping screws for steelwork, and suitable plugs and screws for fixing to masonry. Large washers must be used with all WTS2E, WTS3E and similar ties with a slot. Frame cramps should have a minimum embedment of 50 mm in the outer leaf. Taking site tolerances into account, Wincro suggests tie lengths that achieve a greater embedment of 62.5–75 mm.


Frame cramps include:

  • Wincro WTS3E – Safe ended frame cramp with 8 x 30 mm fixing slot.
  • Wincro WTS2E – Safe ended frame cramp with drip and 8 x 30 mm fixing slot.
  • Wincro WTS3U – Safe ended frame cramp with two outer 6 mm diameter holes and one central 7 mm diameter hole.
  • Wincro WTS2U – Safe ended frame cramp with drip and two outer 6mm diameter holes and one central 7 mm diameter hole.
  • Wincro WTP3U – Plain ended frame cramp (movement tie) with two outer 6 mm diameter holes and one central 7 mm diameter hole for use with WDS de-bonding sleeve.
  • Wincro WTP3E – Plain ended frame cramp (movement ties) with 8 x 30 mm fixing slot for use with WDS de-bonding sleeve.


Features and benefits:

  • Available with holed or slotted upstands, safety or plain ends, drip indents, twists or wire ends.
  • Frame cramps can be produced to suit any construction detail.
  • Manufactured from corrosion resistant stainless steel.
  • For cavities up to 175 mm.
  • Available from 75 to 250 mm projections manufactured in 25 mm increments with other sizes available to special order.
  • CE approved.


-
-
Color
Silver
-
-
Material
Stainless steel
-
-
Shape
Other
-
-
SKU Code
WTS3E, WTS2E, WTS3U, WTS2U, WTP3U, WTP3E
-
-

Specification

Standard
To BS EN 845-1.
-
-
Material
Stainless steel, grade 1.4301 (304)., Stainless steel, grade 1.4401 (316).
-
-
Length
125 mm., 150 mm., 175 mm., 200 mm., 225 mm., 250 mm.
-
-

Additional properties

Accessories
None., WDS., WIC., WIP., WBSDSS.
-
-
Type
Safe ended frame cramp.
-
-
Fixings
None., WBEB M6 expansion bolt., WBPS stainless screw and fischer plug., WBSDZP tekscrew and WIP Isolation patch., WBPSX plug and screw.
-
-
