Summary
Euro profile cylinders.
-
-
Application
Door locks.
-
-
Description
Euro profile double cylinder:
For use with locks accepting Euro profile double cylinders.
- Features and benefits:
- Lengths starting at 30-30 (63 mm) available in 5 mm increments up to 80-80 (160 mm).
- Offset lengths also available (up to 80 mm per side).
- Supplied with a DIN 18252 Standard cam.
- Drill protection in the cylinder plug and body.
- All cylinders provided with a M5 fixing screw.
- Decorative and security accessories are available.
- Master keyed.

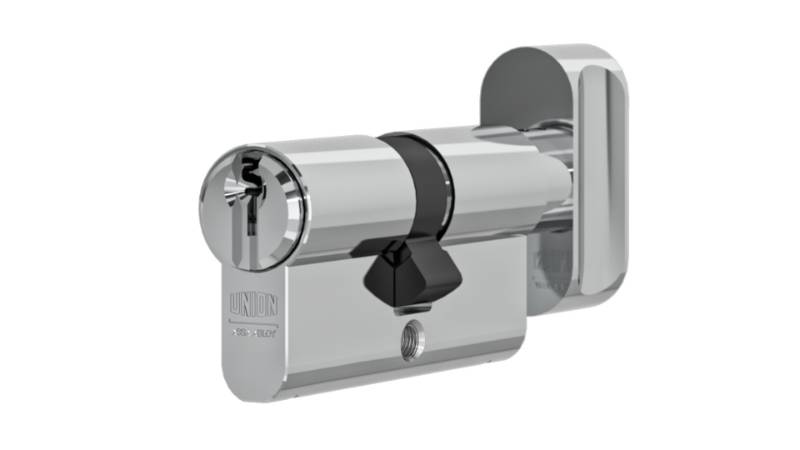

Euro profile key and turn cylinder:
For use with locks accepting Euro profile key and turn cylinders.
- Features and benefits:
- Lengths starting at 30-30 (63 mm) available in 5 mm increments up to 80-80 (160 mm).
- Offset lengths also available (up to 80 mm per side).
- Supplied with a DIN 18252 Standard cam.
- Drill protection in the cylinder plug and body.
- Decorative and security accessories are available.
- All cylinders provided with a M5 fixing screw.
- Stadium style thumb turn supplied as standard.
- Clutch release and classroom functions are available.
- Master keyed.
-
-
Color
Silver
-
-
Finish
Satin, Chrome, Brass
-
-
Length
63 mm
-
-
Width
15 mm, 17 mm
-
-
Height
33 mm, 38 mm
-
-
SKU Code
JM2KMET3535SN
-
-
Specification
Classification data
Latch or lock type
Euro double cylinder.
-
-
Material and finish
AB., CH., PL., SB., SC., SN.
-
-
Keying
In master keyed suite.
-
-
Additional properties
Accessories/ Other requirements
2 – clutch release., 3L– classroom left hand., 3R – classroom right hand.
-
-
