Summary
Electronic WC flush control.
Electronic WC flush control.
Application
- For manual remote flush actuation of Omega concealed cisterns 12 cm using a touchless IR button.
- For releasing a dual flush.
- For installation in solid and drywall constructions with flush mounting box.
- For installation in bathroom furniture with counternut.
- Suitable for less-abled installation.
- For Sigma concealed cisterns 12 cm.
- For manual remote flush actuation of Omega concealed cisterns 12 cm using a touchless IR button.
- For releasing a dual flush.
- For installation in solid and drywall constructions with flush mounting box.
- For installation in bathroom furniture with counternut.
- Suitable for less-abled installation.
- For Sigma concealed cisterns 12 cm.
Description

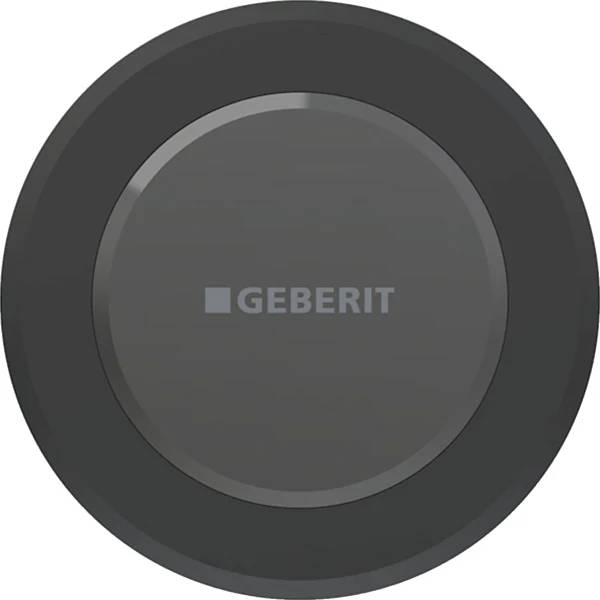

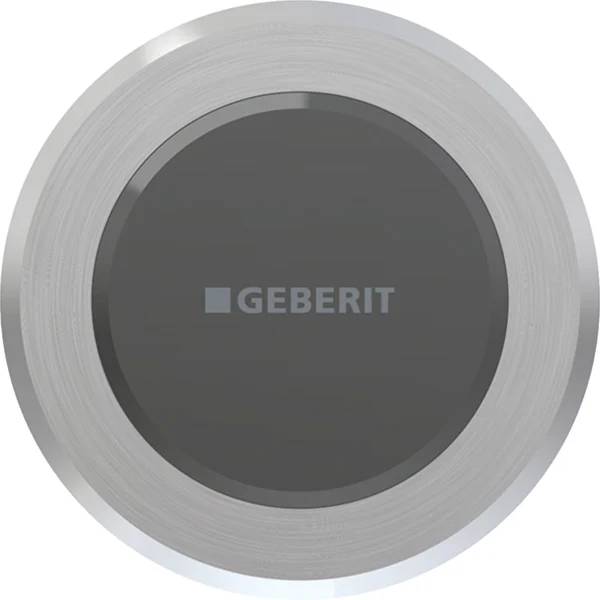

Electronic WC flush control, mains operation, for Sigma concealed cistern 12 cm, with Type 10 round RF-controlled button.
Features and benefits:
- Touchless manual flush actuation.
- Touchless flush actuation for single or dual flush by moving hand toward sensor.
- Single or dual flush can be triggered via flush plate.
- Can be combined with flush plates Omega20 to Omega60 or Geberit cover plates.
- Power supply via external power supply unit.
- Transformation of mains voltage to extra-low voltage, 12 V DC.
- Operation with extra-low voltage, no mains voltage in cistern.
- With push-fit connection with cross-polarity protection.
- Interval flush pre-set.
- Adjustable interval flush.
- Device settings and operation with mobile device via integrated Bluetooth® interface.
- Compatible with Geberit Control App.
- Wired networkable with Geberit gateway via GEBUS converter.
- Wirelessly connectable with Geberit Gateway via Bluetooth®.
- Compatible with Geberit Connect.
- Low-noise lifting mechanism.
- Electrical lifting device, self-calibrating.
Supplied:
- Infrared button with 2 m connection cable.
- Flush-mounting box.
- Counternut.
- Conduit pipe, length 1.7 m.
- Support block with servomotor and lifting device, pre-mounted.
- Electrical control.
Electronic WC flush control, mains operation, for Sigma concealed cistern 12 cm, with Type 10 round RF-controlled button.
Features and benefits:
- Touchless manual flush actuation.
- Touchless flush actuation for single or dual flush by moving hand toward sensor.
- Single or dual flush can be triggered via flush plate.
- Can be combined with flush plates Omega20 to Omega60 or Geberit cover plates.
- Power supply via external power supply unit.
- Transformation of mains voltage to extra-low voltage, 12 V DC.
- Operation with extra-low voltage, no mains voltage in cistern.
- With push-fit connection with cross-polarity protection.
- Interval flush pre-set.
- Adjustable interval flush.
- Device settings and operation with mobile device via integrated Bluetooth® interface.
- Compatible with Geberit Control App.
- Wired networkable with Geberit gateway via GEBUS converter.
- Wirelessly connectable with Geberit Gateway via Bluetooth®.
- Compatible with Geberit Connect.
- Low-noise lifting mechanism.
- Electrical lifting device, self-calibrating.
Supplied:
- Infrared button with 2 m connection cable.
- Flush-mounting box.
- Counternut.
- Conduit pipe, length 1.7 m.
- Support block with servomotor and lifting device, pre-mounted.
- Electrical control.
Color
Black, Silver
Black, Silver
Finish
Matt, Brushed
Matt, Brushed
Material
Stainless steel, Brass
Stainless steel, Brass
Shape
Circle
Circle
Length
5 mm
5 mm
Width
6 mm
6 mm
Height
6 mm
6 mm
SKU Code
115.956.14.6, 115.956.SN.6
115.956.14.6, 115.956.SN.6
Specification
Flush rate
Interval flush, adjustment range: 1–168 h.
Interval flush, factory setting: 24 h.
Interval flush time, adjustment range: 1–200 s.
Interval flush time, factory setting: 5 s.
Interval flush, adjustment range: 1–168 h.
Interval flush, factory setting: 24 h.
Interval flush time, adjustment range: 1–200 s.
Interval flush time, factory setting: 5 s.
Materials
-
-
Body
Brass.
-
Finish and colour
Black matt.
-
Operation
Type 10 RF-controlled button, round.
Type 10 RF-controlled button, round.
Controller
Mains-operated.
Mains-operated.
Body
-
Stainless steel.
Finish and colour
-
Brushed.
Additional properties
Protection class
IP45.
IP45.
Nominal voltage
85–240 V a.c.
85–240 V a.c.
Operating voltage
12 V d.c.
12 V d.c.
Frequency
Mains frequency: 50–60 Hz.
Mains frequency: 50–60 Hz.
Power consumption
≤4 W.
≤4 W.
Accessories
Not required., Actuator plate., Cover plate., Geberit power and connect box., Geberit power supply unit for power and connect box.
Not required., Actuator plate., Cover plate., Geberit power and connect box., Geberit power supply unit for power and connect box.
Sustainability data
Material
Stainless steel, Brass
Stainless steel, Brass
