Summary
System for concrete to concrete connections.
-
-
Application
Used to connect precast panels together.
-
-
Description

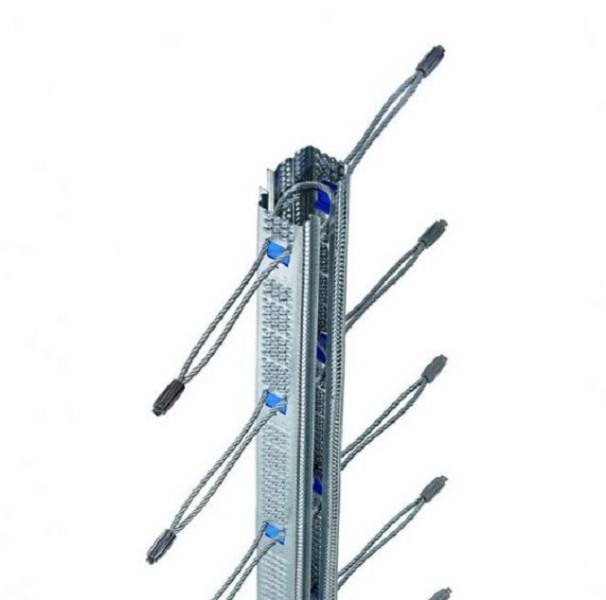

The Pfeifer VS Loop Box System is normally used to connect precast panels together. Wire loops are housed inside steel boxes which form pockets in the edges of precast panels.
Removing the cover releases the loops so they project into the joint between panels and overlap with loops in the adjoining panel. Vertical reinforcement is passed through loops and free-flowing grout is used to bond the connection and seal the joint.
VS boxes are available in different loop formats and lengths. Load choices range from simple non-rated restraint connections to fully load-rated ‘all-directional 3-D’ connections.
Features and benefits:
- Simple to install.
- Fast and reliable.
-
-
Color
Grey
-
-
Finish
Zinc plated
-
-
Material
Steel
-
-
Shape
Other
-
-
Length
60 mm, 80 mm, 100 mm, 120 mm, 180 mm, 200 mm, 220 mm, 1180 mm
-
-
Width
50 mm, 70 mm, 80 mm
-
-
Height
20 mm, 25 mm, 50 mm
-
-
Additional properties
Number
Manufacturer's standard., 0., 2., 4., 6., 7.
-
-
Projection length
60 mm., 80 mm., 100 mm., 120 mm.
-
-
Dimensions
50 x 160 x 20 mm.
-
-
Sustainability data
Country of product manufacture
Germany
-
-
Material
Steel
-
-
