Summary

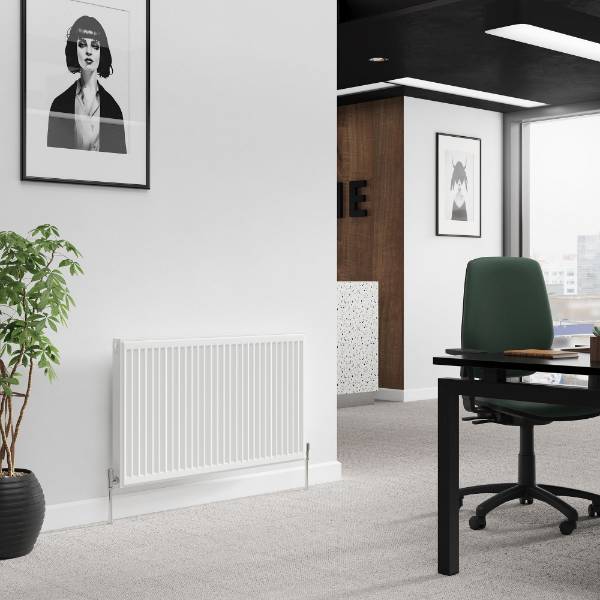

Compact radiator available in a range of variations.
-
-
Application

Suitable for various rooms and applications where space is at a premium.

-
-
Description

Compact radiator available in a range of variations.


Features and benefits:

  • Performs to a maximum working pressure of 145 psi (10 bar).
  • Conforms to BS EN 442.
  • Available in a range of over 200 sizes in horizontal and vertical configurations, providing extra sizing flexibility to cover a multitude of application requirements.
  • White (RAL 9016) in colour.
  • The integrated top grille and side panels have been specifically designed to eradicate any movement, providing a tight, professional fit that will remain in place, even after storage, transit, and installation.
  • The convectors are precision welded directly onto the waterways for greater efficiency and economy, with flexible connection options for the highest of commercial and domestic application specifications.
  • Accessories are available to ensure that the Stelrad Compact can be fitted within a wide range of applications - consult manufacturer for details.
  • Sections: Dependent on size and style, consult manufacturer's literature for information.
  • Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
  • Style: Certain styles are only available with certain sizes, consult manufacturer for information.
-
-
Color
White
-
-
Finish
Painted
-
-
Material
Steel
-
-
Shape
Rectangle
-
-
Warranty description
Ten year
-
-

Specification

Standards
To BS EN 442.
-
-
Radiator type
Single panel.
-
-
Output
255–3351 W (870–11 473 Btu/h).
-
-
Finish
Painted.
-
-
Connections
½” inlet.
-
-
Accessories
Not required., Floor mounting brackets.
-
-

Additional properties

Size (h x l)
300–700 x 300–3000 mm.
-
-
Centre tap thermostatic radiator valve (TRV)
Not applicable.
-
-
WorkingPressure
10 bar.
-
-
Operating pressure (maximum)
13.5 bar.
-
-
Configuration
Horizontal.
-
-
Depth
61 mm.
-
-
Projection
94 mm.
-
-
