SLIPFAST® mechanically fixed clay brick slip system
SLIPFAST® mechanically fixed clay brick slip system

Verified 7 months ago

RCM - Roofing and Cladding Materials Ltd

System 1

Verified 7 months ago

RCM - Roofing and Cladding Materials Ltd

System 2

Summary

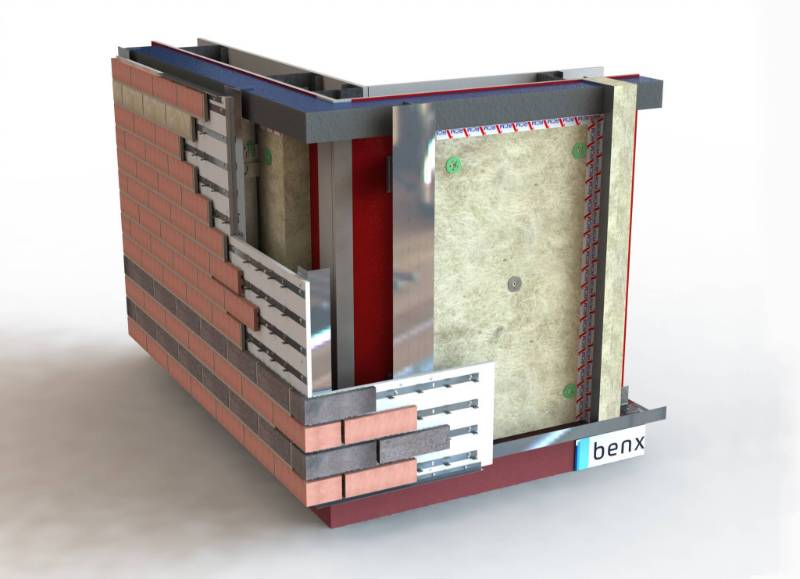

Slipfast® is a fast track, mechanically fixed clay brick slip system, designed to be compatible with modern methods of construction.
Slipfast® is a fast track, mechanically fixed clay brick slip system, designed to be compatible with modern methods of construction.
Color
Black, Red, Blue, Brown, White, Orange, Other
Black, Red, Blue, Brown, White, Orange, Other
Material
Clay, Stainless steel, Steel, Aluminium
Clay, Stainless steel, Steel, Aluminium
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke

Specification

System performance
Fire performance: Reaction to fire to EN 13501-1, Class A2.
Fire performance: Reaction to fire to EN 13501-1, Class A1.
Breather membrane
-
-
Material
Self-Adhesive EPDM membranes to all openings.
Self-Adhesive EPDM membranes to all openings.
Secondary support structure
Pre-coated panels with fixed stainless steel rails and clips.
Pre-coated panels with fixed stainless steel rails and clips.
Cladding panels
-
-
Material
Pre-formed fired clay brick slips.
Pre-formed fired clay brick slips.
Panel joints
Pointing mortar.
Pointing mortar.

Additional properties

Colour
Anthracite Black., Apedale Smooth., Avon Red Sanded., Belton Buff Dark., Chester Blend., Hampshire Red., Himley Blue Smooth., Light Brown Antique., Newbury Red., Russet Rigstone., Warnham Red Sanded., White Engobe., Other.
Anthracite Black., Apedale Smooth., Avon Red Sanded., Belton Buff Dark., Chester Blend., Hampshire Red., Himley Blue Smooth., Light Brown Antique., Newbury Red., Russet Rigstone., Warnham Red Sanded., White Engobe., Other.
Configuration
Timber battens., Galvanized steel top-hat profiles.
Allface aluminium support frame.
Edges
Square.
Square.
Fixings
Stainless steel.
Stainless steel.
Reaction to fire (to BS EN 13501-1)
A2.
A1.
Water penetration
600 Pa.
600 Pa.
Wind resistance
Serviceability, 2400 Pa; safety, 3600 Pa.
Serviceability, 2400 Pa; safety, 3600 Pa.
Impact resistance
Retention of performance, Category B (Class 4) resistant to ≥ 500 J equivalent impact; safety to persons, Category B (low risk).
Retention of performance, Category B (Class 4) resistant to ≥ 500 J equivalent impact; safety to persons, Category B (low risk).
Wind load
3600 Pa/ 2.4 kN/m².
3600 Pa/ 2.4 kN/m².
Air leakage
600 Pa/ 100 Pa.
600 Pa/ 100 Pa.
