Summary

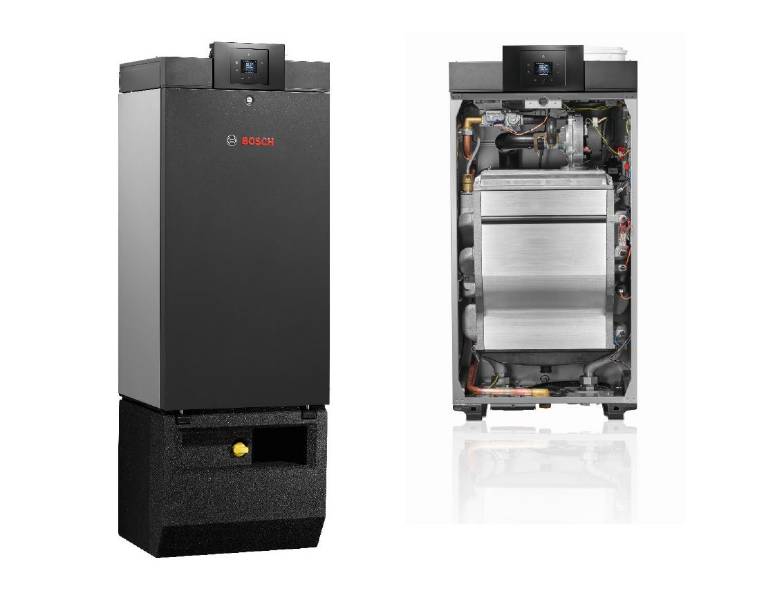

Condensing wall-hung and floor-standing commercial boiler series.
-
-
Application
Suitable for larger domestic properties, commercial, hybrid and communal systems.
-
-
Description
Condensing wall-hung and floor-standing commercial boiler series.
Features and benefits:
- 50, 65, 85 or 100 kW wall hung condensing boiler, also available in outputs of 125 and 145 kW.
- Option to cascade in banks of up to six boilers.
- Easy to install, 74 kg lift weight and compact boiler dimensions (H) 1120 mm x (W) 520 mm x (D) 457.5 mm.
- Condensing technology with easy servicing.
- Patented ALU-PLUS® heat exchanger with plasmapolymised surface.
- Five-year parts and labour guarantee for the boiler.
- All parts can be serviced from the front.
- Energy Management System (EMS) controls.
- Modulation down to 13 kW for 50 and 65 kW models.
- Modulation down to 20 kW for 85 and 100 kW models.
-
-
Digital objects
-
-
Color
Black
-
-
Finish
Other
-
-
Material
Metal
-
-
Shape
Rectangle
-
-
Length
587 mm, 457.5 mm
-
-
Width
520 mm
-
-
Height
1526 mm
-
-
Warranty description
Five year
-
-
SKU Code
7000WP–50, 7000WP–65, 7000WP–85, 7000WP–100, 7000WP–112, 7000WP–145
-
-
Specification
Classification data
Output
13.0—46.5 kW (80/60 °C); 14.3—49.9 kW (50/30 °C).
-
-
Energy efficiency rating
Class A.
-
-
Seasonal efficiency (gross calorific value (minimum))
96%.
-
-
NOx emissions (maximum)
25 mg/kW·h.
-
-
Mounting
Floor mounted., Wall mounted.
-
-
Operating pressure
6 bar.
-
-
Operating temperature
85℃.
-
-
Heat exchanger
ALU-PLUS® heat exchanger with plasmapolymised surface.
-
-
Fuel
LPG., Natural gas.
-
-
Electrical supply type
Single phase.
-
-
Accessories
-
-
-
Additional properties
Input
13.3—47.5 kW.
-
-
Efficiency
108.4%.
-
-
PowerLoss
0.24%.
-
-
Flow rate (maximum)
5000 L/h.
-
-
Required Flow
2200 L/h.
-
-
Resistance
75 mbar.
-
-
CondenserFlowrate
6 L/h.
-
-
Noise level at 1 m maximum
55 db (A).
-
-
Power supply
230 VAC, 50 Hz, 130 Watts.
-
-
Ingress protection
IPX0D.
-
-
Dimensions
1526 x 520 x 457.5 mm (with pump); 1120 x 520 x 457.5 mm (without pump).
-
-
Weight
74 kg.
-
-
Connections
G1 ½' Female Union.
-
-
Drain
Ø 24 mm.
-
-
Connection
G1 Male.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Europe
-
-
Country of product manufacture
Netherlands
-
-
Recyclability
85%
-
-
