Summary

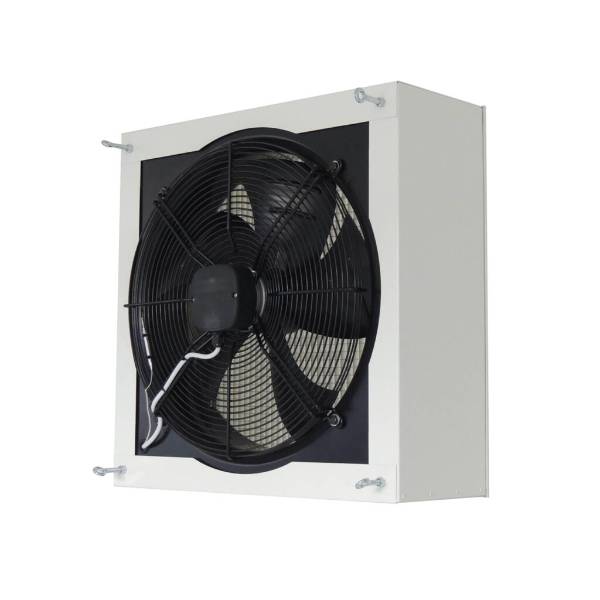

Destratification fan unit for Factories, Warehouses, Workshops and Commercial Buildings. Suitable for any building with a high ceiling area.
-
-
Application

Suitable for Factories, Warehouses, Workshops and Commercial Buildings.

-
-
Description

The Envirotec Destratification Air Stratification Solution unit improves heat distribution in large spaces, making the most of the heating system in the building. The unit mixes the air and produces a homogenous heating profile, bringing the hot air collecting at the ceiling down to where it is needed.

Features and benefits:

  • Save on heating.
  • Improves heat distribution.
  • ESG Compliant.
  • Effective management of air conditions.
  • 5 to 10 meters discharge distance, adjusted for application.
  • A 12 meter version is also available.
  • Mounted with wiring hanging on eyelet bolts.
  • Custom colours available on request.
-
-
Color
White, Other, Yellow
-
-
Finish
Powder-coated
-
-
Material
Zintec steel
-
-
Shape
Square
-
-
Length
595.5 mm, 595 mm, 591.5 mm
-
-
Width
595.5 mm, 595 mm, 591.5 mm
-
-
Height
272 mm, 296 mm, 125 mm
-
-
Warranty description
One year, Other
-
-
SKU Code
DS-8, DS-10, DS-12, DS-F
-
-

Specification

Classification data
Product reference
DS-8.
-
-
Fan type
Destratification fan, curved blade.
-
-
Performance characteristics
-
-
-
Duty
-
-
-
Air volume
4270 m³/h.
-
-
Configuration
Single.
-
-
Motor and drive
-
-
-
Type
Single-phase 230 V a.c.
-
-
Mounting
Wiring hanging on eyelet bolts.
-
-
Product characteristics
-
-
-
Dimensions
595.5 x 595.5 x 272 mm.
-
-
Materials
-
-
-
Blades
Zintec steel.
-
-
Motor casing
Zintec steel.
-
-
Finish
Powder-coated, White (RAL 9010)., Custom.
-
-
Unit weight
20 kg.
-
-

Additional properties

Discharge
5–12 m (adjustable).
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of product manufacture
United Kingdom
-
-
Manufacturing plant location
Desborough Pk Rd, High Wycombe HP12 3BX, UK
-
-
Material
Zintec steel
-
-
Recyclability
Envirotec are registered under the WEEE regulation. Most parts of the unit can be recycled by normal waste streams
-
-
Expected Life
Five year
-
-
