Summary

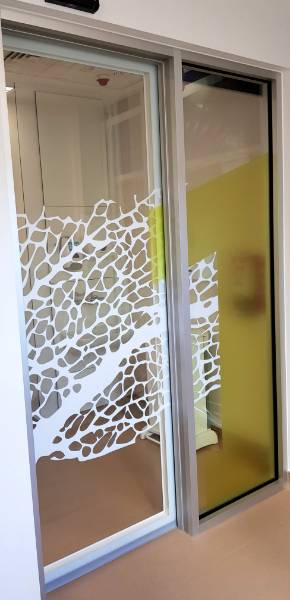

Sliding single door with fixed glazed panel.
Sliding single door with fixed glazed panel.
Application
- Healthcare
- cleanrooms
- laboratories
- pharmaceutical manufacturing
- BSL3 & BSL4 labs
- ICU.
- Healthcare
- cleanrooms
- laboratories
- pharmaceutical manufacturing
- BSL3 & BSL4 labs
- ICU.
Description
Sliding single door with fixed glazed panel. Innovative glass sliding system that is durable, contemporary and ideal for providing visibility. The smooth sliding action saves on opening space.
Features and benefits:
- DT-A1 Glass sliding door with fixed glazed panel.
- Manual or automated door.
- Options include manifestations, blinds or switchable glass within door & fixed glazed panels.
- DT5 track system fitted to 100 x 145mm aluminium box section at head.
- Aluminium box section fixed into wall.
- Fixed glazed panel fitted to underside of box section.
- Self-supporting 100 x 45mm aluminium vertical posts fitted into grounds in wall opening.
- Fixed glazed unit fixed to aluminium vertical supports.
Antimicrobial options:
- Antimicrobial copper alloy handles. Aesthetic finish and appearance of stainless steel 400mm or 650mm sizes available.
- On-line coated glass with a photocatalytic coating providing antimicrobial properties. Can be toughened or laminated.
- Consult manufacturer.
Sliding single door with fixed glazed panel. Innovative glass sliding system that is durable, contemporary and ideal for providing visibility. The smooth sliding action saves on opening space.
Features and benefits:
- DT-A1 Glass sliding door with fixed glazed panel.
- Manual or automated door.
- Options include manifestations, blinds or switchable glass within door & fixed glazed panels.
- DT5 track system fitted to 100 x 145mm aluminium box section at head.
- Aluminium box section fixed into wall.
- Fixed glazed panel fitted to underside of box section.
- Self-supporting 100 x 45mm aluminium vertical posts fitted into grounds in wall opening.
- Fixed glazed unit fixed to aluminium vertical supports.
Antimicrobial options:
- Antimicrobial copper alloy handles. Aesthetic finish and appearance of stainless steel 400mm or 650mm sizes available.
- On-line coated glass with a photocatalytic coating providing antimicrobial properties. Can be toughened or laminated.
- Consult manufacturer.
Color
Silver, Other
Silver, Other
Finish
Satin, Powder-coated
Satin, Powder-coated
Material
Aluminium, Glass
Aluminium, Glass
Shape
Rectangle
Rectangle
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Specification
Performance
Internal.
Internal.
Arrangement
Single leaf sliding.
Single leaf sliding.
Track system
DT5 aluminium track system.
DT5 aluminium track system.
Door leaves
-
-
Construction
-
-
Finish and colour
Powder coated, RAL., Satin aluminium., Stainless steel.
Powder coated, RAL., Satin aluminium., Stainless steel.
Operation
Manual.
Automated.
Hardware
Not required., Stainless steel D handle back to back secret fix, at 300 mm centres., Stainless steel D handle at 300 mm centres on track side and flush pull handle on non track side., Antimicrobial handle.
Not required.
Accessories
Not required., LCD switchable glass.
Not required., LCD switchable glass.
Additional properties
Glass
Double glazed 6 mm, toughened glass., Single glazed 6 mm, toughened glass., 10.4 mm laminated safety glass., Toughened & laminated safety glass., Antimicrobial glass.
Double glazed 6 mm, toughened glass., Single glazed 6 mm, toughened glass., 10.4 mm laminated safety glass., Toughened & laminated safety glass., Antimicrobial glass.
Canopy
Sloping canopy., Flat top canopy.
Sloping canopy., Flat top canopy.
Canopies
Stainless steel., Powder coated, RAL.
Stainless steel., Powder coated, RAL.
Frame
High surround frame., Aluminium corner edge profile., Stainless steel wall liner.
High surround frame., Aluminium corner edge profile., Stainless steel wall liner.
Controllers
Not required.
Not required., Push button., Radar., Touchless sensors.
Glass panel
Fixed glazed panel on one side., Fixed glazed panel either side for bi-parting.
Fixed glazed panel on one side., Fixed glazed panel either side for bi-parting.
Integral venetian blinds
Integrated venetian blind systems with horizontal slats with tilt only.
Integrated venetian blind systems with horizontal slats with tilt only.
Colour/ Finish
-
-
Blinds operation
Manual., Electronic.
Manual., Electronic.
Manifestation
Manifestations mounted on inside of the glazed on a double glazed unit., Manifestations surface applied on glazing by others.
Manifestations mounted on inside of the glazed on a double glazed unit., Manifestations surface applied on glazing by others.
Beading
Sloped beading., Rectangular beading.
Sloped beading., Rectangular beading.
Seals
Not required., Draught compression seals.
Not required., Draught compression seals.
Sustainability data
Contains Red List materials
No
No
