Summary

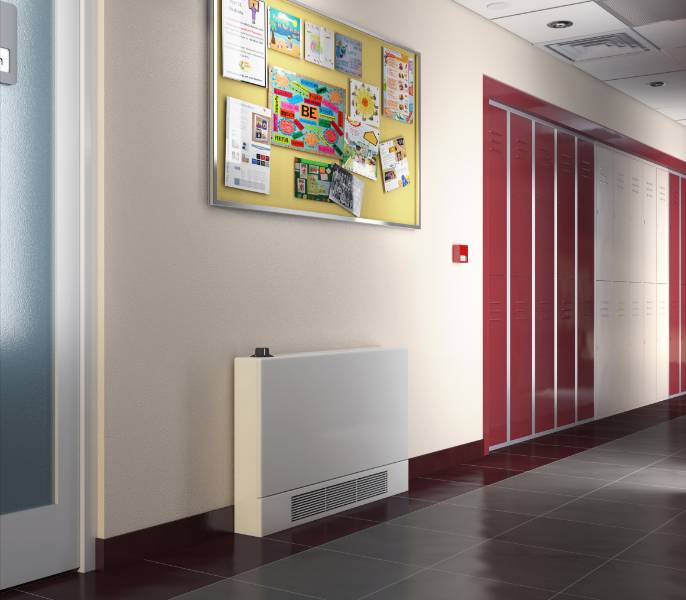

Low surface temperature (LST) radiator finished with antibacterial paint. Includes a Danfoss RAS-D Remote Sensor.
Low surface temperature (LST) radiator finished with antibacterial paint. Includes a Danfoss RAS-D Remote Sensor.
Low surface temperature (LST) radiator finished with antibacterial paint. Includes a Danfoss RAS-D Remote Sensor.
Application
Suitable use for in domestic, commercial, and public buildings’ running heating systems with public safety assured.
Suitable use for in domestic, commercial, and public buildings’ running heating systems with public safety assured.
Suitable use for in domestic, commercial, and public buildings’ running heating systems with public safety assured.
Description
Low surface temperature (LST) radiator finished with
antibacterial paint. Includes a Danfoss RAS-D Remote Sensor.
Features and benefits:
- Performs to a maximum working pressure of 145 psi (10 bar).
- Conforms to BS EN 442.
- Available in a range of 72 sizes.
- White (RAL 9016) in colour.
- Emitter size: Dependent on size and style, consult manufacturer's literature for information.
- Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
- Style: Certain styles are only available with certain sizes, consult manufacturer for information.
- Low surface temperature (LST) radiator which meets NHS guidance for ‘safe hot water and surface temperature’ and is finished in antibacterial paint.
- It includes a Danfoss RAS-D Remote Sensor, designed specifically for commercial heating systems, and can be pre-set to allow adjustment of room temperatures between 5–26°C.
- A flat panel outer casing, which is reversible to allow piping flexibility.
- Simple and quick to install, the casing is held by security fittings with a unique seam fixing bracket system to prevent unauthorized access to the emitter accommodated inside.
- The emitter itself provides high outputs through convection for good heating performance.
Low surface temperature (LST) radiator finished with
antibacterial paint. Includes a Danfoss RAS-D Remote Sensor.
Features and benefits:
- Performs to a maximum working pressure of 145 psi (10 bar).
- Conforms to BS EN 442.
- Available in a range of 72 sizes.
- White (RAL 9016) in colour.
- Emitter size: Dependent on size and style, consult manufacturer's literature for information.
- Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
- Style: Certain styles are only available with certain sizes, consult manufacturer for information.
- Low surface temperature (LST) radiator which meets NHS guidance for ‘safe hot water and surface temperature’ and is finished in antibacterial paint.
- It includes a Danfoss RAS-D Remote Sensor, designed specifically for commercial heating systems, and can be pre-set to allow adjustment of room temperatures between 5–26°C.
- A flat panel outer casing, which is reversible to allow piping flexibility.
- Simple and quick to install, the casing is held by security fittings with a unique seam fixing bracket system to prevent unauthorized access to the emitter accommodated inside.
- The emitter itself provides high outputs through convection for good heating performance.
Low surface temperature (LST) radiator finished with
antibacterial paint. Includes a Danfoss RAS-D Remote Sensor.
Features and benefits:
- Performs to a maximum working pressure of 145 psi (10 bar).
- Conforms to BS EN 442.
- Available in a range of 72 sizes.
- White (RAL 9016) in colour.
- Emitter size: Dependent on size and style, consult manufacturer's literature for information.
- Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
- Style: Certain styles are only available with certain sizes, consult manufacturer for information.
- Low surface temperature (LST) radiator which meets NHS guidance for ‘safe hot water and surface temperature’ and is finished in antibacterial paint.
- It includes a Danfoss RAS-D Remote Sensor, designed specifically for commercial heating systems, and can be pre-set to allow adjustment of room temperatures between 5–26°C.
- A flat panel outer casing, which is reversible to allow piping flexibility.
- Simple and quick to install, the casing is held by security fittings with a unique seam fixing bracket system to prevent unauthorized access to the emitter accommodated inside.
- The emitter itself provides high outputs through convection for good heating performance.
Color
White
White
White
Finish
Painted
Painted
Painted
Material
Steel
Steel
Steel
Shape
Rectangle
Rectangle
Rectangle
Length
650 mm, 850 mm, 1050 mm, 1250 mm, 1450 mm, 1650 mm, 1850 mm, 2050 mm
650 mm, 850 mm, 1050 mm, 1250 mm, 1450 mm, 1650 mm, 1850 mm, 2050 mm
650 mm, 850 mm, 1050 mm, 1250 mm, 1450 mm, 1650 mm, 1850 mm, 2050 mm
Height
500 mm, 650 mm, 800 mm
500 mm, 650 mm, 800 mm
500 mm, 650 mm, 800 mm
Warranty description
Ten year
Ten year
Ten year
Specification
Standards
To BS EN 442.
To BS EN 442.
To BS EN 442.
Radiator type
Low surface temperature, single panel.
Low surface temperature, double panel plus.
Low surface temperature, double panel.
Output
196–1643 W (669–5606 Btu/h).
284–2254 W (969–7691 Btu/h).
348–2767 W (1187–9441 Btu/h).
Finish
Painted.
Painted.
Painted.
Connections
½” inlet.
½” inlet.
½” inlet.
Accessories
Not required., Fascia panel., Cover cap.
Not required., Fascia panel., Cover cap.
Not required., Fascia panel., Cover cap.
Additional properties
Size (h x l)
500 x 650 mm., 500 x 850 mm., 500 x 1050 mm., 500 x 1250 mm., 500 x 1450 mm., 500 x 1650 mm., 500 x 1850 mm., 500 x 2050 mm., 650 x 650 mm., 650 x 850 mm., 650 x 1050 mm., 650 x 1250 mm., 650 x 1450 mm., 650 x 1650 mm., 650 x 1850 mm., 650 x 2050 mm., 800 x 650 mm., 800 x 850 mm., 800 x 1050 mm., 800 x 1250 mm., 800 x 1450 mm., 800 x 1650 mm., 800 x 1850 mm., 800 x 2050 mm.
500 x 650 mm., 500 x 850 mm., 500 x 1050 mm., 500 x 1250 mm., 500 x 1450 mm., 500 x 1650 mm., 500 x 1850 mm., 500 x 2050 mm., 650 x 650 mm., 650 x 850 mm., 650 x 1050 mm., 650 x 1250 mm., 650 x 1450 mm., 650 x 1650 mm., 650 x 1850 mm., 650 x 2050 mm., 800 x 650 mm., 800 x 850 mm., 800 x 1050 mm., 800 x 1250 mm., 800 x 1450 mm., 800 x 1650 mm., 800 x 1850 mm., 800 x 2050 mm.
500 x 650 mm., 500 x 850 mm., 500 x 1050 mm., 500 x 1250 mm., 500 x 1450 mm., 500 x 1650 mm., 500 x 1850 mm., 500 x 2050 mm., 650 x 650 mm., 650 x 850 mm., 650 x 1050 mm., 650 x 1250 mm., 650 x 1450 mm., 650 x 1650 mm., 650 x 1850 mm., 650 x 2050 mm., 800 x 650 mm., 800 x 850 mm., 800 x 1050 mm., 800 x 1250 mm., 800 x 1450 mm., 800 x 1650 mm., 800 x 1850 mm., 800 x 2050 mm.
Controls location
Left-hand side., Right-hand side.
Left-hand side., Right-hand side.
Left-hand side., Right-hand side.
Operating pressure (maximum)
13.5 bar.
13.5 bar.
13.5 bar.
MaximumWorkingPressure
10 bar.
10 bar.
10 bar.
