Summary
High performance fire board.
High performance fire board.
Application
For use in areas where improved fire resistance is required.
For use in areas where improved fire resistance is required.
Description

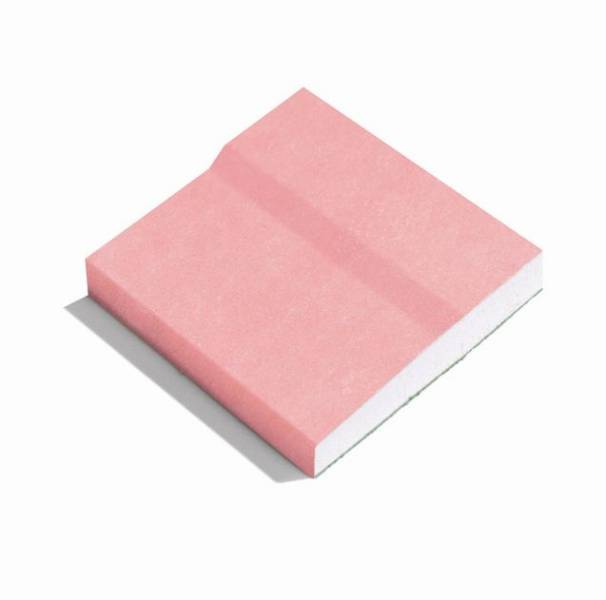

GTEC Fire Board is a plasterboard which provides superior fire resistance for stud partitions, wall lining and ceiling systems. Achieve 60 minutes fire resistance from a 15mm single layer partition system. It complies with BS1230 Type 5 and BS EN 520 Types D and F.
Features and benefits:
- 60 minutes fire resistance from a 15 mm single layer partition system.
- Achieves Building Regulations Approved Document B (fire) compliance.
- Integrated vapour control layer reduces installed time and cost.
Standards:
- Complies with BS EN 520:2004+A1:2009 Type D and F.
- To BS EN 12524 and BS EN ISO 12524.
GTEC Fire Board is a plasterboard which provides superior fire resistance for stud partitions, wall lining and ceiling systems. Achieve 60 minutes fire resistance from a 15mm single layer partition system. It complies with BS1230 Type 5 and BS EN 520 Types D and F.
Features and benefits:
- 60 minutes fire resistance from a 15 mm single layer partition system.
- Achieves Building Regulations Approved Document B (fire) compliance.
- Integrated vapour control layer reduces installed time and cost.
Standards:
- Complies with BS EN 520:2004+A1:2009 Type D and F.
- To BS EN 12524 and BS EN ISO 12524.
Digital objects
Material
Gypsum
Gypsum
Size
1200 x 2400 mm., 1200 x 3000 mm., 900 x 1800 mm., 1200 x 2700 mm.
1200 x 2400 mm., 1200 x 3000 mm., 1200 x 2700 mm., 900 x 1800 mm.
Specification
Standard
To BS EN 520.
To BS EN 520.
Thickness (nominal)
12.5 mm.
15 mm.
Edge profile
Bound edges, tapered down the long edges.
Bound edges, tapered down the long edges.
Additional properties
Product Reference
Siniat Fire Board, Siniat Fire V Board
Siniat Fire Board, Siniat Fire V Board
Colour
Pink on the front and grey on the rear face.
Pink on the front and grey on the rear face.
Materials
Gypsum.
Gypsum.
Width
1200 mm.
1200 mm.
Length
2400 mm.
2400 mm.
ThermalConductivity
0.25 W/m·K.
0.25 W/m·K.
Water vapour resistance
μ = 10.
μ = 10.
MoistureContent
<2%.
<2%.
Tensile strength - longitudinal
≥550.
≥650 N.
Tensile strength - transverse
≥210 N.
≥250 N.
Reaction to fire
A2-s1, d0.
A2-s1, d0.
Thermal resistance (R-value)
0.05 m²K/W.
0.06 m²K/W.
Duty
Medium duty.
Heavy duty.
Mass
10.2 kg/m².
12.3 kg/m².
Weight
29.4 kg.
35.4 kg.
Sustainability data
Contains Red List materials
No
No
Country of product manufacture
United Kingdom
United Kingdom
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Normalized unit
-
-
Declared unit
0.160 kgCO2e/kg
0.160 kgCO2e/kg
Recyclability
100%
100%
Recycled content
14 %
14 %
