Summary
Heavy duty aluminium retractable loft ladder. Without hatch box and trap door. For use on a mezzanine floor or fitted within a wall aperture.
-
-
Application
Mezzanine applications.
Wall access applications.
Loft applications.
-
-
Description

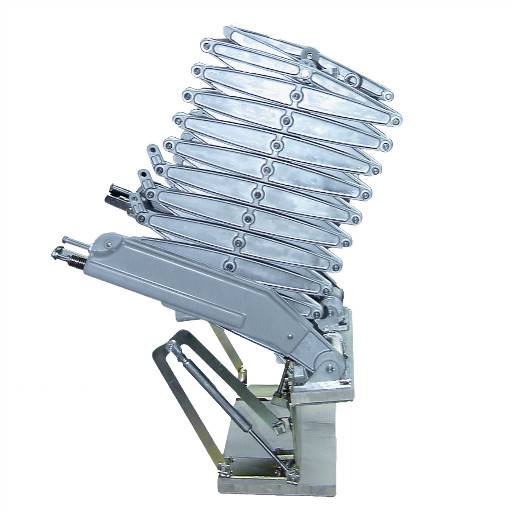

Heavy duty retractable ladder for use on a mezzanine floor or fitted within a vertical wall aperture. Aluminium concertina loft ladder. Supplied as an easy to fit unit without a hatch box. The Elite Vertical loft ladder is manufactured from high strength die-cast aluminium alloy components.
It is supplied with two heavy duty counter-balanced springs incorporated into pivot brackets. As a result, it can be raised and lowered with a minimum of effort. In addition, large steps and pre-assembled telescopic handrail offer comfort, safety and ease of egress.
Features and benefits:
- High strength aluminium retractable ladder.
- Heavy duty load rating (200 kg per tread).
- Very easy to operate.
- Available in a range of heights and widths to suit specific project requirements.
- Includes anti-slip treads to provide comfort and safety.
- Low maintenance with excellent durability.
- Supplied ready to install.
-
-
Digital objects
-
-
Color
Silver
-
-
Finish
Natural
-
-
Material
Aluminium
-
-
Width
610 mm
-
-
Height
2500 mm, 2790 mm, 3090 mm, 3390 mm
-
-
Warranty description
Two year, Ten year
-
-
SKU Code
ELI-VERT
-
-
Specification
Classification data
Standard
To EN 14975, TÜV SÜD Product Service GmbH.
-
-
Format
Retractable.
-
-
Finish
Natural aluminium.
-
-
Treads
8., 9., 10., 11., 12.
-
-
Loft trap door
-
-
-
Operating mechanism
Manual.
-
-
Additional properties
Tread width
200 mm., Reach/set-back distance.
-
-
Accessories
None., Additional telescopic handrail (left and right)., Top-operation., Extended reach., Powder coat finish to aluminium ladder.
-
-
LoadBearingCapacity
200 kg.
-
-
Operation
Supplied with two heavy duty counter balanced springs incorporated into pivot brackets to ensure that it can be raised and lowered with a minimum of effort; gas strut hinge mechanism allows the ladder to be stowed in a vertical position.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
Germany
-
-
Manufacturing plant location
Gutenbergstraße 21, 86356 Neusäß, Germany
-
-
Material
Aluminium
-
-
Recyclability
90% of all materials used in the product and packaging are recyclable.
-
-
Expected Life
30 year
-
-
