Summary
Manufactured from highly recycled & raw materials, the Terrazzo Raised Floor Panel requires no bonding. Wide range of blends & colours available - with standard Terrazzo tiles available to match walls
-
-
Application
Suitable for indoors and outdoor applications.
-
-
Description

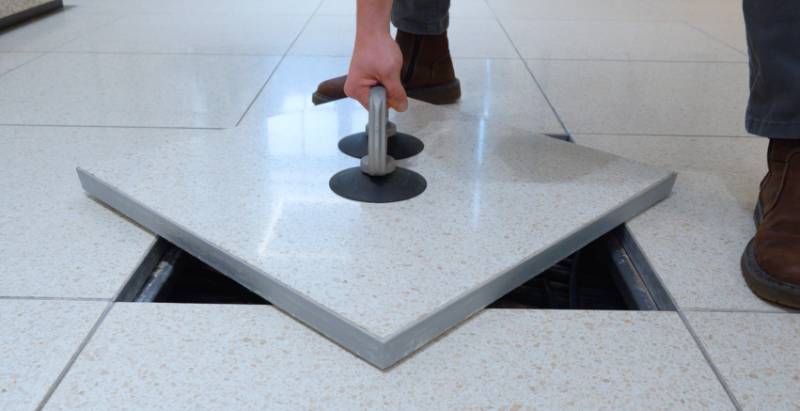

The MonoTile Terrazzo Teknica system is a patented raised access floor panel, crafted in Italy with the upmost precision and attention to detail. Created entirely from natural, raw and recycled materials without any bonding, chemicals or adhesives involved in its production. The result is a high end design finish which creates an attractive space, combined with the practicalities of a fully accesible raised floor system.
Features and benefits:
- Fully accessible raised floor.
- High non-slip resistance.
- Non-combustible fire rating.
- High acoustic performance.
- Manufactured from natural raw and recycled material.
- Durable and hard wearing solid feel floor.
- Centre edge panel load to 2.5 mm deflection = 6 kN.
- Wide range of Terrazzo blends available including custom made blends to achieve varying colours & styles
-
-
Digital objects
-
-
Color
Beige, Black, Blue, Cream, Ivory, Orange, Red, Yellow, White, Other
-
-
Finish
Matt, Brushed
-
-
Material
Terrazzo
-
-
Shape
Square
-
-
Length
600 mm
-
-
Width
600 mm
-
-
Height
36 mm
-
-
Warranty description
One year
-
-
Specification
System performance
Structural load class 2 to BS EN 12825.
-
-
Subfloor preparation
Prime the unfinished floor surface.
-
-
Support structure type
Access floor pedestals.
-
-
Pedestal fixings
1-Part pedestal adhesive., T-Lock pedestal thread adhesive, Mechanical fixings.
-
-
Raised access floor surface
Raised access floor panels with terrazzo finish.
-
-
Barriers in floor void
-
-
-
Fire barriers
-
-
-
Acoustic barriers
-
-
-
Plenum barriers
-
-
-
Samples required
-
-
-
System accessories
Not required., Neoprene roll tape.
-
-
Additional properties
Panel size
600 x 600 mm.
-
-
Panel Thickness
36 mm.
-
-
Panel weight
28—30 kg.
-
-
Weight
32.34 kg/m².
-
-
Fire classification
To ISO DIS 1182:1995, Class 0.
-
-
Fire resistance
To UNI EN 1366-6, REI30, RE60, R90.
-
-
Reaction to fire
To EN 13501:1, Bfl-s1.
-
-
Sound performance
-
-
-
Fixing
Loose lay pedestal.
-
-
Edging
ABS edge band.
-
-
Core
Terrazzo.
-
-
Safety
To BS EN 12825:2001, Class 2A2.
-
-
Load
3.5 kN (working point load); 15 kN/m² (working UDL).
-
-
Load class
Class 5.
-
-
Stringers
Heavy duty pedestal stringers., Extra heavy duty understructure.
-
-
Pedestals
M20 pedestals.
-
-
Slip resistance
To DIN 51130,
-
-
Surface finish
Brushed.
-
-
Colour
Bianco Carrara., Bianco Kristal., Bianco Botticino., Giallo Reale., Grigio Bardiglio., Grigio Barre., Grigio Perla., Nero Marquinia., Rosa Alicante., Rosa Perlino., Rosso Verona., Azzurro Azoto., Veneziano., Veneziano 2., Veneziano 3., Veneziano 4., Veneziano 5., Veneziano 6., Veneziano 7., Veneziano 8., Veneziano 9., Veneziano 10., MX 01., MX 02., MX 03., MX 04., MX 05., MX 06., MX 07., MX 08., MX 09., MX 10., MX 11., MX 12., MX 13., MX 14., MX 15., MX 16., Artica., Dolomitica., Lavica., Dorica., Porfirica., Basaltica.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Italy
-
-
Country of product manufacture
Italy
-
-
Recycled content
80 %
-
-
