Equipment boards, racks and supports - BIM objects
Find and specify equipment boards, racks and supports from top manufacturers with NBS Source. Browse BIM objects and Revit families for Equipment boards, racks and supports below. Classification Pr_80_77_27.
Can't find what you're looking for?
Recently verified
Showing 1-11 of 11
Metal Channel (Strut)
Verified 12 days ago
Marshall-Tufflex Ltd
A metal framework strut system to connect lightweight structural loads in buildings such as metal cable tray or wire basket.
ROOFTRAK® IFP-HM | Solar & Plant Fixing Point for Hot Melt Roofs - Integrated Fixing Point System
Verified 18 days ago
Nicholson STS Ltd
ROOFTRAK® IFP-HM integrated fixing point system for roof constructions weathered with hot melt roofing systems. Used to secure rooftop solar and rainscreen cladding applications.
ROOFTRAK® IFP-GR | Solar & Plant Fixing Point for Green Roofs - Fixing Point for Solar & Plant
Verified 18 days ago
Nicholson STS Ltd
ROOFTRAK® IFP-GR integrated fixing point system for use in green and inverted roof constructions. Used to secure rooftop solar.
ROOFTRAK® IFP-MR | Solar & Plant Fixing Point System for Metal Roofs - Integrated Fixing Point System
Verified 18 days ago
Nicholson STS Ltd
ROOFTRAK® IFP-MR integrated fixing point system for fully supported metal roofing. Used to secure rooftop solar and mounted signage.
ROOFTRAK® IFP250 | Solar & Cladding Fixing Point for Membrane Roofs - Integrated Fixing Point System
Verified 18 days ago
Nicholson STS Ltd
ROOFTRAK® IFP-250 integrated fixing point system for cold and warm membrane roof constructions. Used to secure rooftop solar and rainscreen cladding applications.
BauderSOLAR F XL
Verified 23 days ago
Bauder Ltd
A flat roof PV mounting solution for framed solar modules.
Carrier and Solar Support System - RENOLIT ALKORPLAN Solar System - Carrier System And A Solar Support
Verified 5 months ago
RENOLIT UK Ltd
A lightweight and secure PVC fastening profile, used as both solar photovoltaic panel support and carrier system.

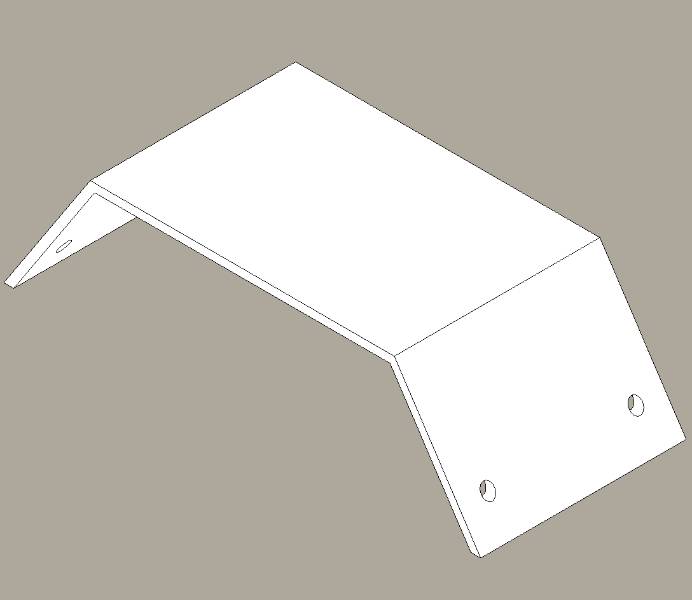

Metal cladding solar module clamps
Verified 5 months ago
NBS
Clamps designed to allow solar module support rails to be secured to metal cladding. With parametric values for length, width, and angle to suit cladding profile.
Solar module support rails
Verified 5 months ago
NBS
Support rails intended to carry solar thermal or solar photovoltaic modules. With parametric values for length, width, and height.
Roof anchors for solar modules
Verified 5 months ago
NBS
Roof anchors designed to be fixed to roof rafters or purlins and hold solar module support rails above the line of a pitched roof. With parametric values for length, width, and height.
Free standing mounting frame for solar modules
Verified 5 months ago
NBS
Free standing mounting frame for use at ground level or on a flat roof and designed to support solar modules. With parametric values for length, width, height and tilt angle.
Showing 1-11 of 11
