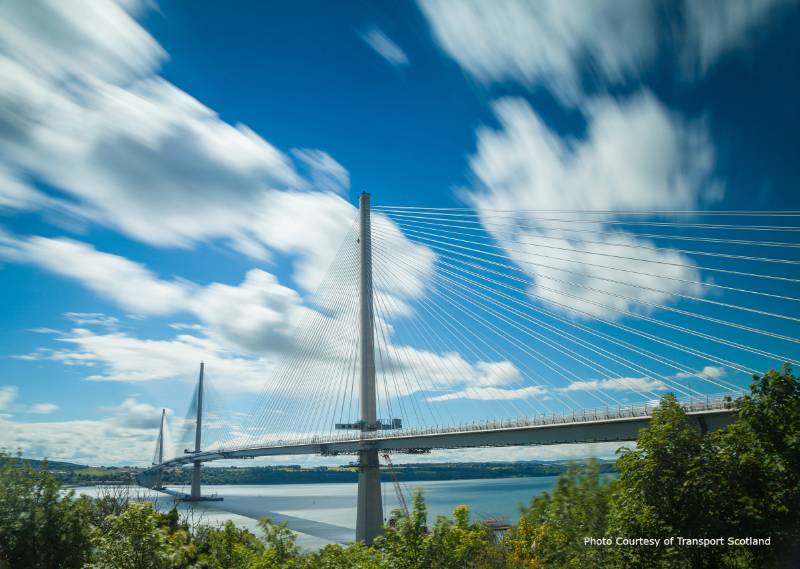

Queensferry Crossing, Forth Estuary, Scotland

OVERVIEW

Over 100,000 Ancon Rebar Couplers were used to support the concrete of one of the longest cable-stayed bridges in the world. Reinforcing bars which strengthen the concrete deck, towers and end piers had to be reliably, mechanically connected end to end throughout the structure. To perform this hidden, but vital structural task, Bartec Plus Parallel Threaded Couplers were selected from the comprehensive Ancon range. Various types and sizes, to match rebar diameters from 12-40mm, were supplied, with the three largest sizes being used to join reinforcement running the full height of the three 680ft support towers.

No featured products in this case study

Contact Leviat by clicking the button below to find out which products were used in this case study.
