New Mansion Square

Battersea Power Station is a large regeneration project in south London. Phase 4a, the latest phase of this large project, will provide 386 new homes for shared ownership and affordable rent. As well as offering views across London, the £120 million development will also include a new NHS medical centre and flexible workspaces for local entrepreneurs. The project developer was Peabody Group.

The Ardmore group’s involvement in the scheme focuses on seven blocks of up to 18-storey residential blocks, arranged around a garden square called New Mansion Square.

Award-winning architects Patel Taylor were inspired in their façade design by London’s classic redbrick mansion blocks. Where residential blocks tend to be uniformly designed, Patel Taylor made subtle changes to each story, meaning each level has a unique design.

The façade itself was designed by Ardmore, the main contractor on the project, to consist of stone and brick elements.

The general concept was that there would be a stone band running through each level which would support the masonry. Originally, there were two suppliers to deliver the façade, one for the stone support and stone delivery and CFS, both designing and delivering the masonry support.

This proved to be a challenge in terms of coordinating of the project given two different suppliers were providing different types of brackets, especially since each level was slightly differently designed.

To simplify the delivery of the project, CFS were asked to tap into their masonry support knowledge to apply the same design principles to the stone support. This also helped to solve one of the design concerns as when the stone was supported by masonry support, the cavity became less congested on the slab face.

CFS were also able to coordinate with several suppliers to provide the stone components and support for the façade in time for site requirements. In some areas brackets were not needed, so close collaboration between all suppliers was needed to ease the pressure for storage at the construction site. The fact that CFS's masonry support brackets are fully adjustable was also an added benefit.

The Ardmore group now works closely with CFS, with CFS delivering the design of the masonry support in collaboration with the Ardmore group.

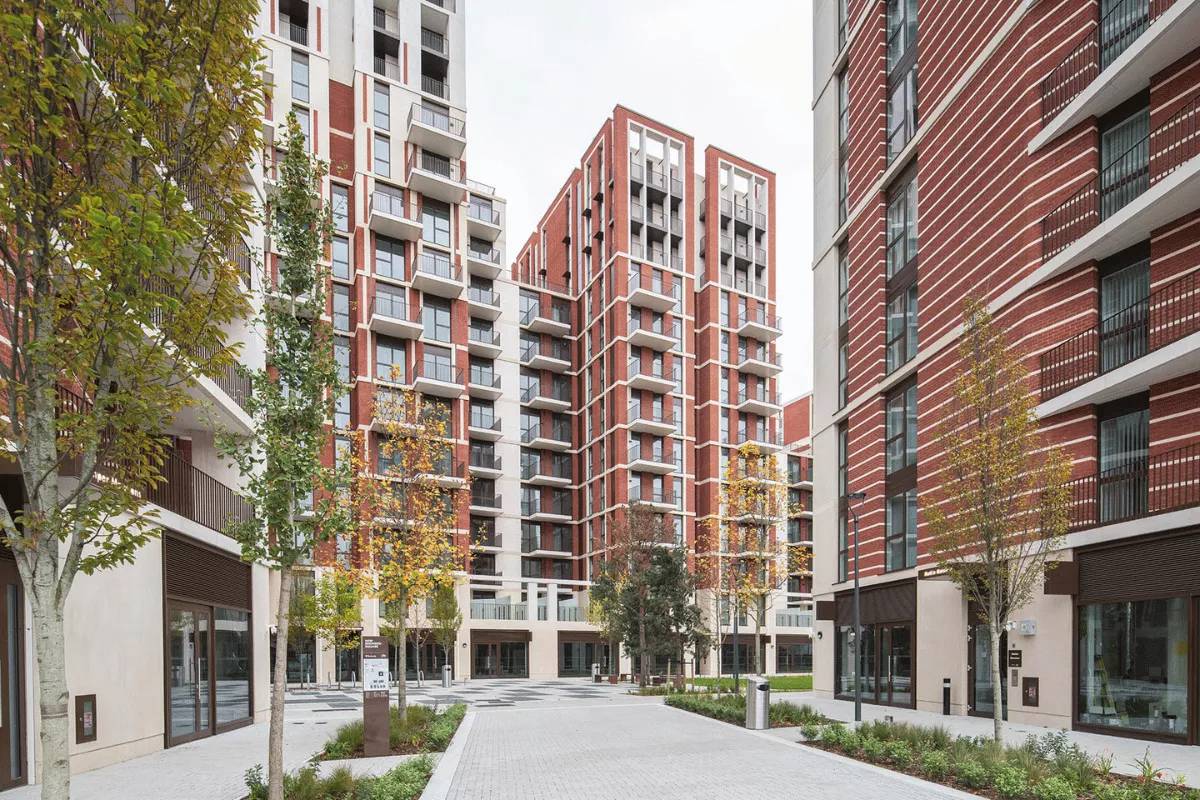

Image taken from Peabody Group website.
