Luxury access to the roof terrace by LAMILUX roof access hatch

OVERVIEW

In densely populated urban areas of the cities, where the number of floors in housing is sometimes limited and private gardens are rare, a rooftop terrace or patio is becoming a popular design choice. However, many residential buildings with rooftop gardens don’t see much daylight and careful consideration is required to determine an access point to the roof terrace. For such rooftop projects, a new dimension of roof access is offered by the LAMILUX Flat Roof Access Hatch Comfort range, designed to give a generous daylight intake in attic apartments alongside convenient access to the roof terrace creating an air of grace and beauty both internally and externally.



The LAMILUX Flat Roof Access Hatch Comfort range now introduces its fourth product into the family, giving more choice and flexibility when creating a luxurious living space with an exclusive ambience. Featuring unrestricted use as a natural ventilation device and convenient access to the roof terrace, the indoor climate also benefits from the high energy efficiency of the range thanks to the thermally broken frame and excellent air tightness values.

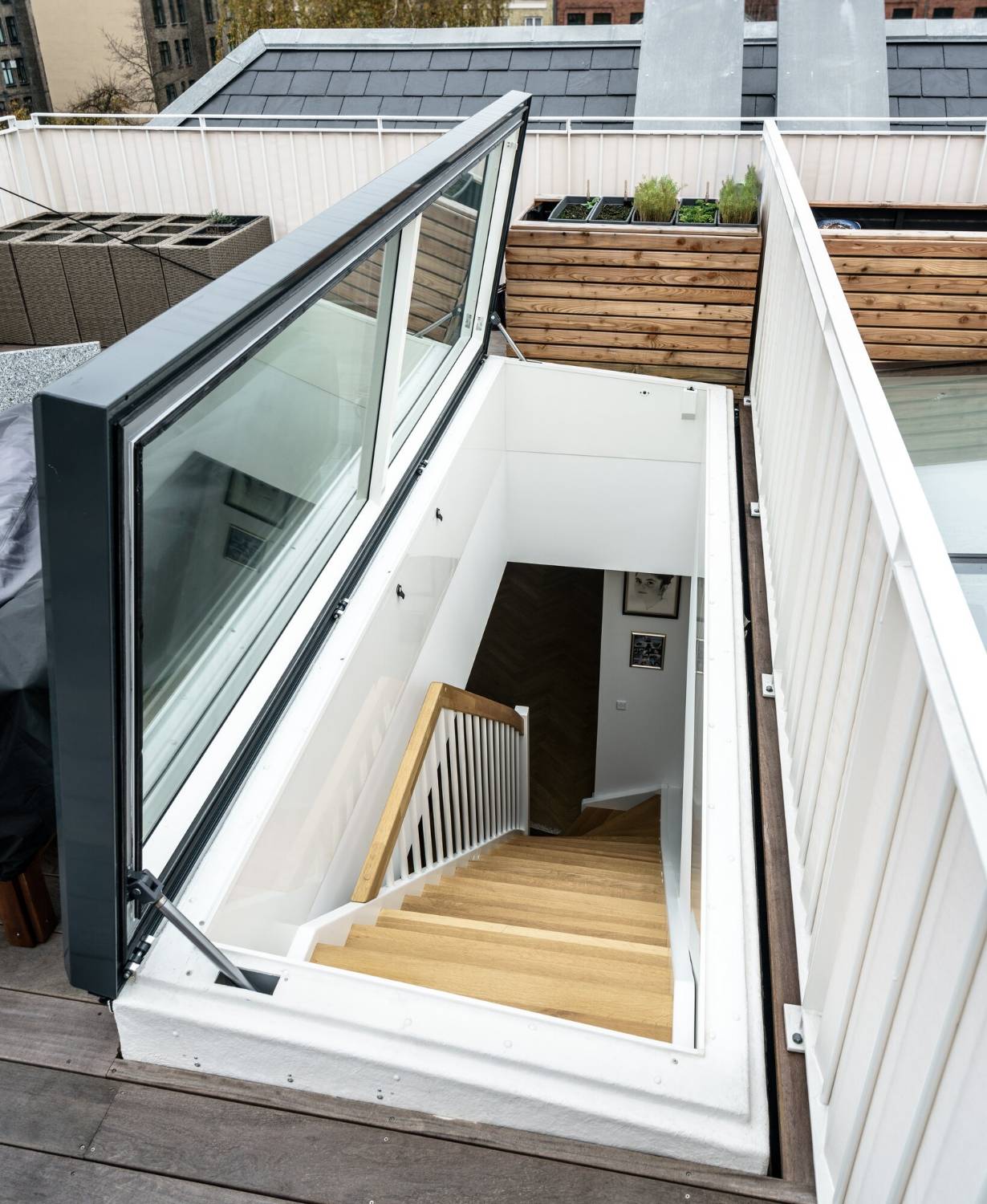

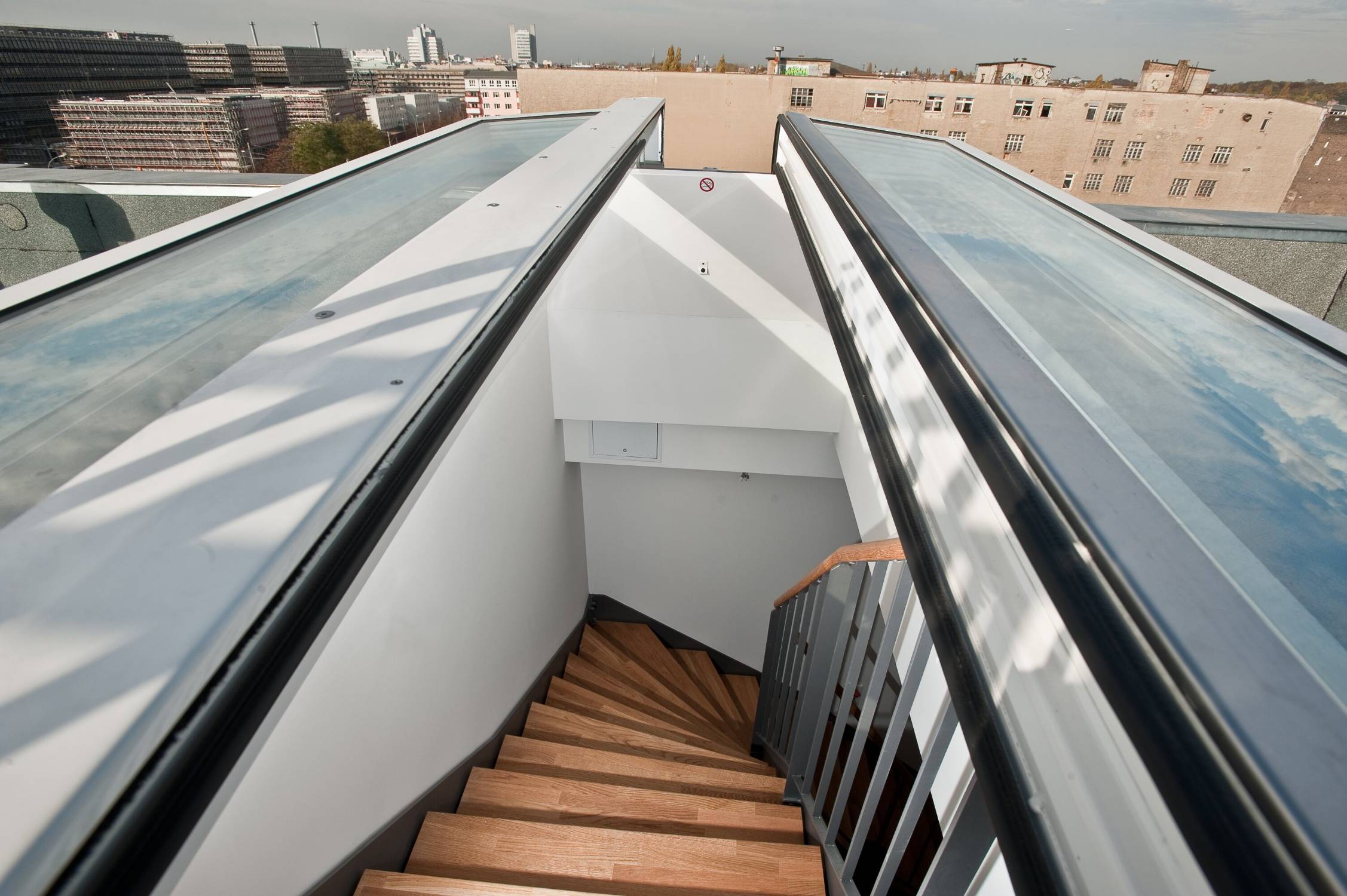

The existing Solo and Duo Flat Roof Access Hatch products from LAMILUX open laterally by moving one or two panels horizontally to create direct access to step onto the roof terrace, whilst the space-saving hinged opening Swing variant swiftly opens its one meter by 3000 or 3500 mm long aperture to 84 degrees in just 25 seconds.

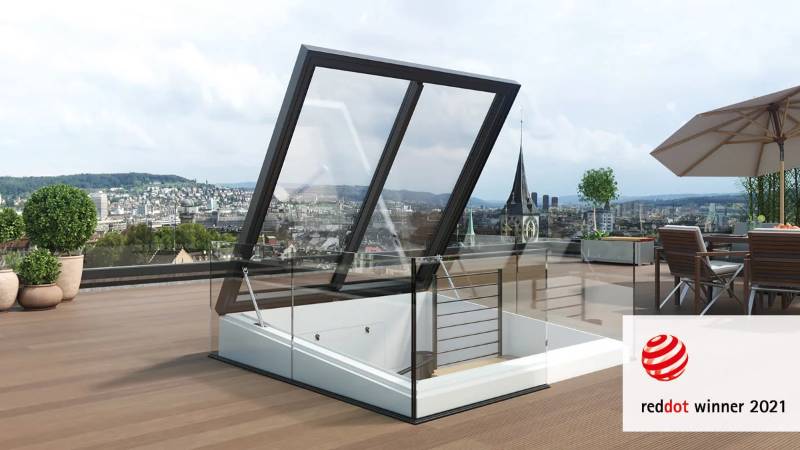

The fourth, and newest addition to the Access Hatch Comfort repertoire the Square, makes it possible, for the first time, to also use spiral and platform staircases underneath. Until now, access to the roof was limited to straight stairways due to the elongated rectangular shape of the roof access hatch range. The Square only takes 45 seconds for the concealed hydraulic drives to silently open the 4m² glass element of the skylight by 70 degrees. As with the Swing, the new variant does not require any additional space on the roof terrace than its own size in closed form, even when open, thanks to its swing mechanism.



Visually, the aluminium border frame throughout the product family, attracts attention as an architectural highlight. The aluminum profiles and the reveal surface can be coated in all RAL colours offering further choice and exclusivity. Since the glass panes and frame feature a flush edge detail both internally and externally, and all variants are designed with an inclined surface, the range boasts not only a visually appealing seamless design, but also ensures that rainwater can run-off easily without leaving any dirty edges or water ponding.



Safety is standard in the Flat Roof Access Hatch Comfort product family with fall-resistant glazing which can be walked on to a limited extent for cleaning purposes. As an additional safety feature, a light barrier is installed as standard which prevents the closing of the access hatch as soon as it detects something in the entrance area.

In terms of energy, the new roof access hatch continues the tradition of all LAMILUX skylights: The overall system, which is free of thermal bridges and isothermally balanced and the option of special glazing meets modern demands for sustainability, energy efficiency and climate protection which ultimately save heating costs and minimizes condensation.



All four products in this family have one further thing in common: They are delivered completely pre-assembled to the construction site, lifted onto the roof by a crane provided by the customer and then installed swiftly and easily. This minimizes the risk of errors and saves valuable time – both for the contractor and for the apartment user who ultimately gains access to the roof terrace.
