APL Case Study - APL SnapLoc™ Cladding - Graven Hill

OVERVIEW

Project: Graven Hill

Date: 2020



Background:

·        APL were engaged with the project consultant to assist with overcoming design issues with their chosen support structure (by others)

·        APL designed a custom sub-frame due to the extreme tolerances on the chosen substrate

·        APL provided all structural calculations



Systems:

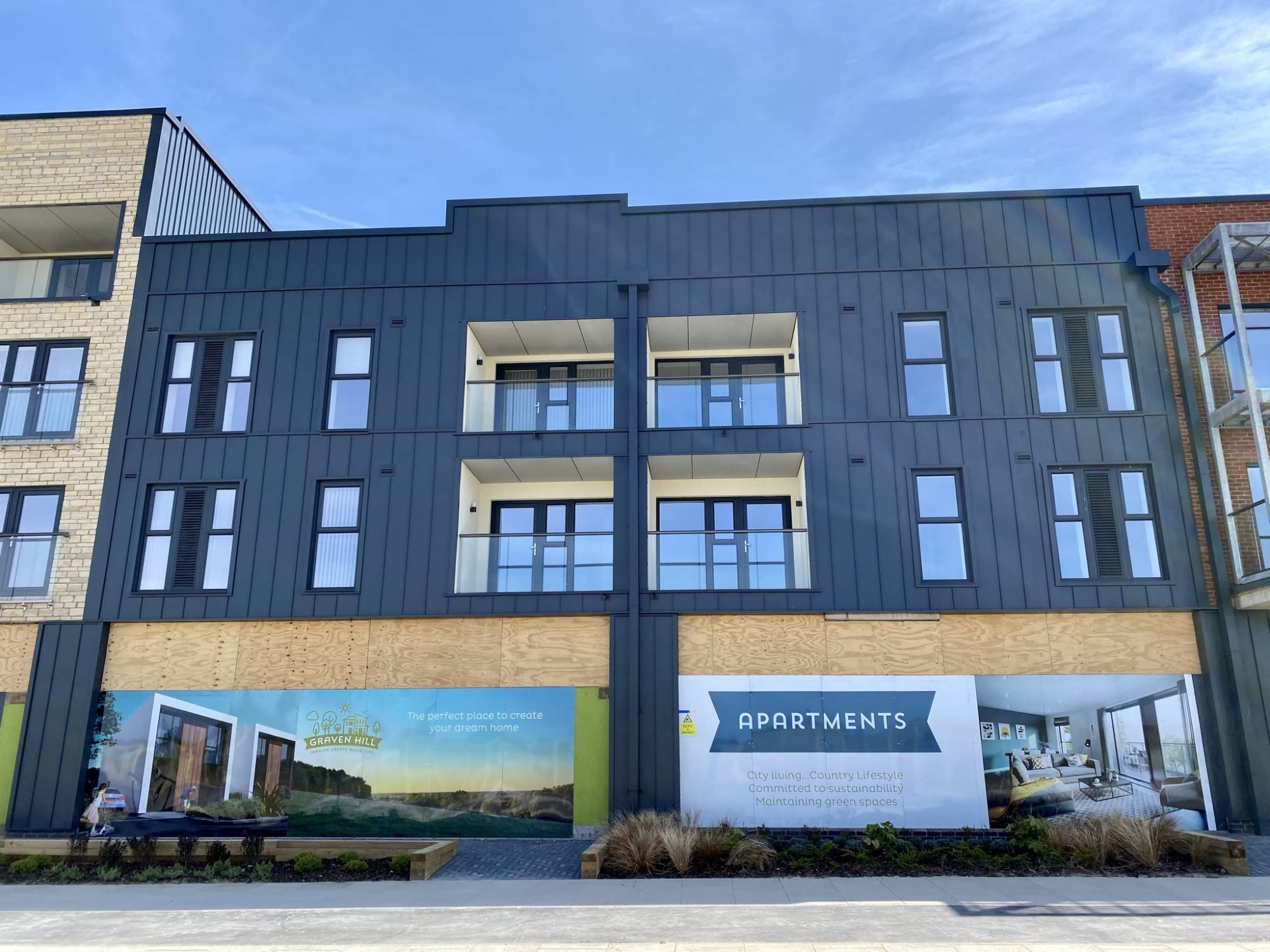

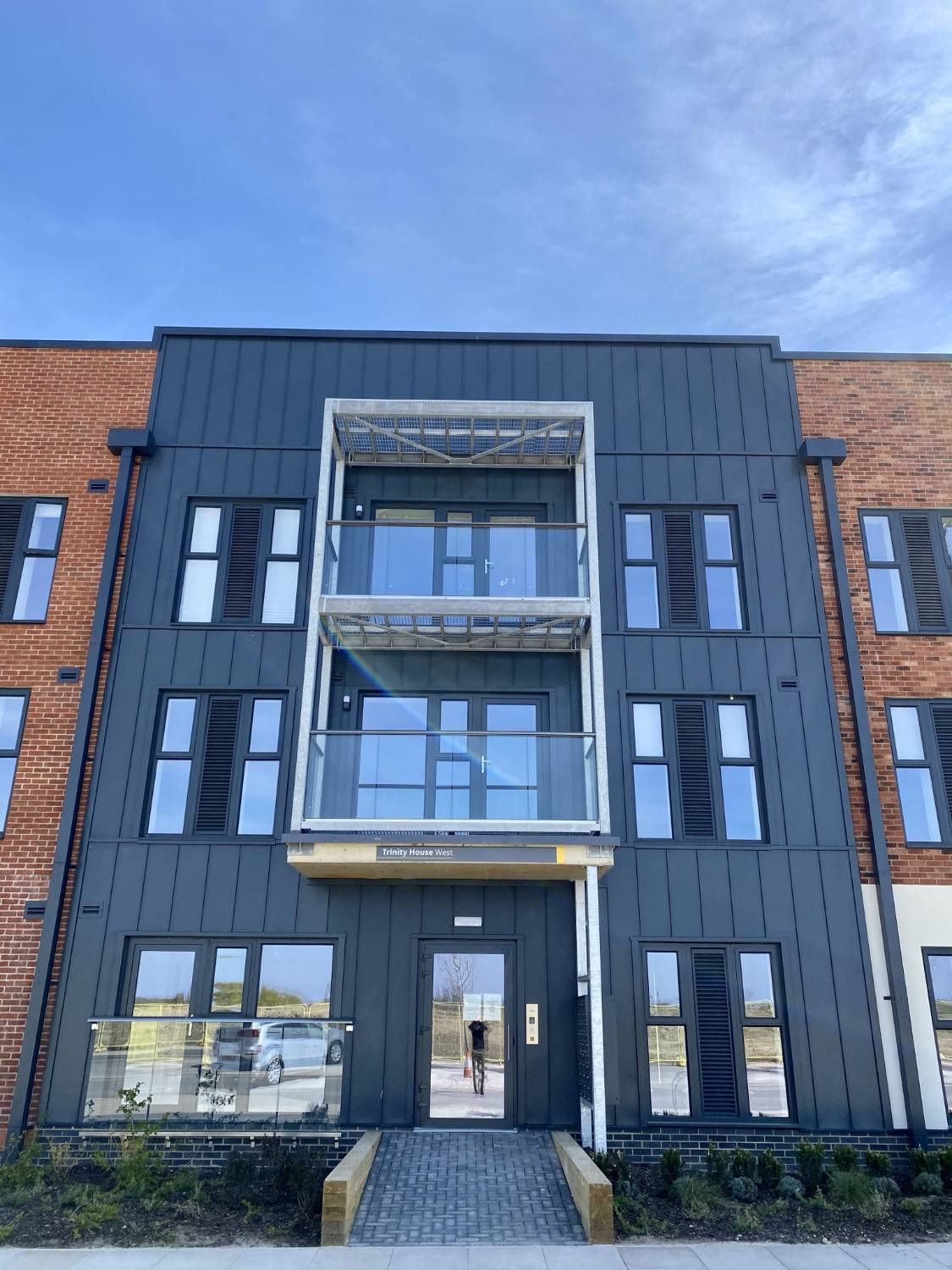

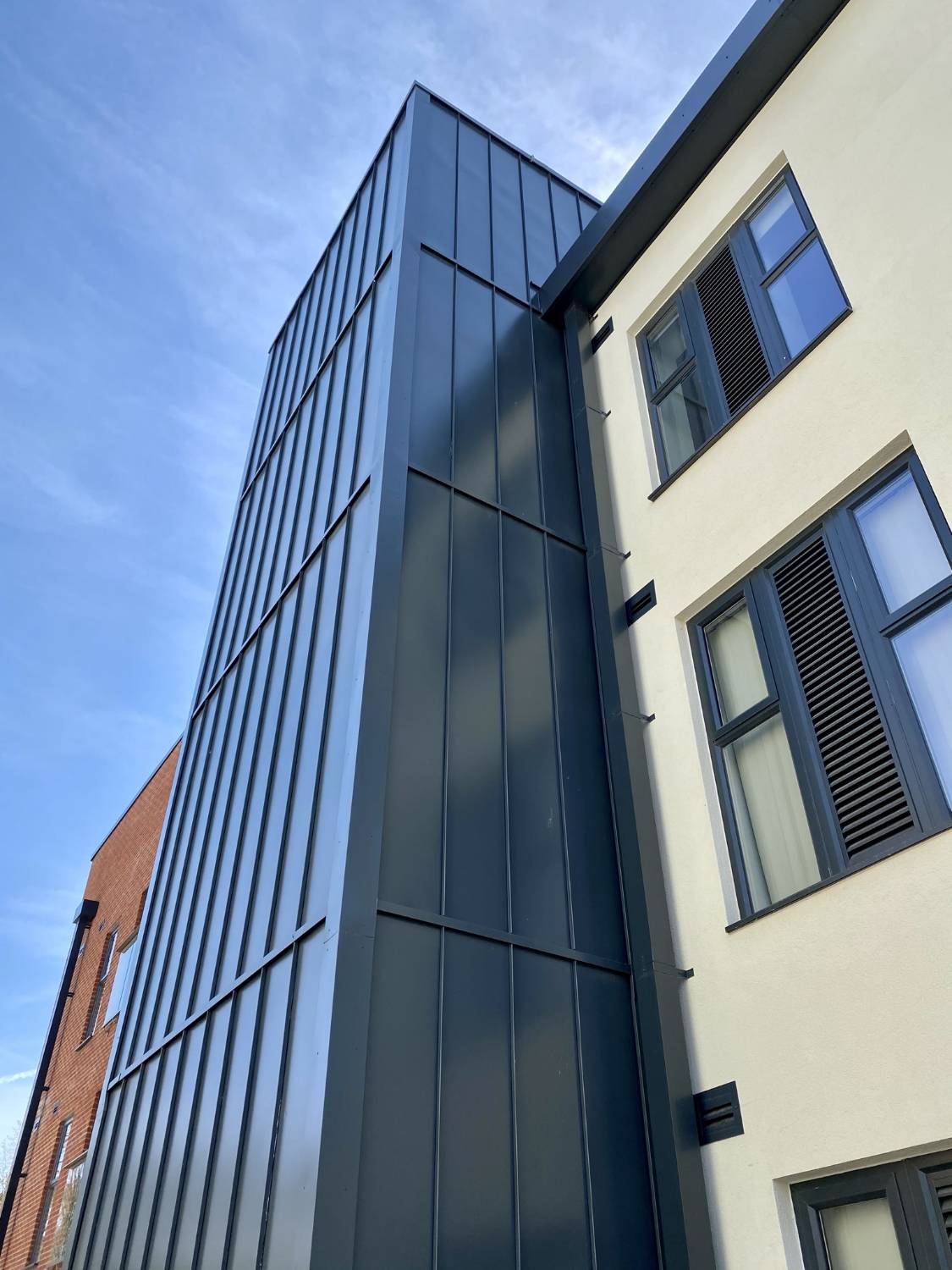

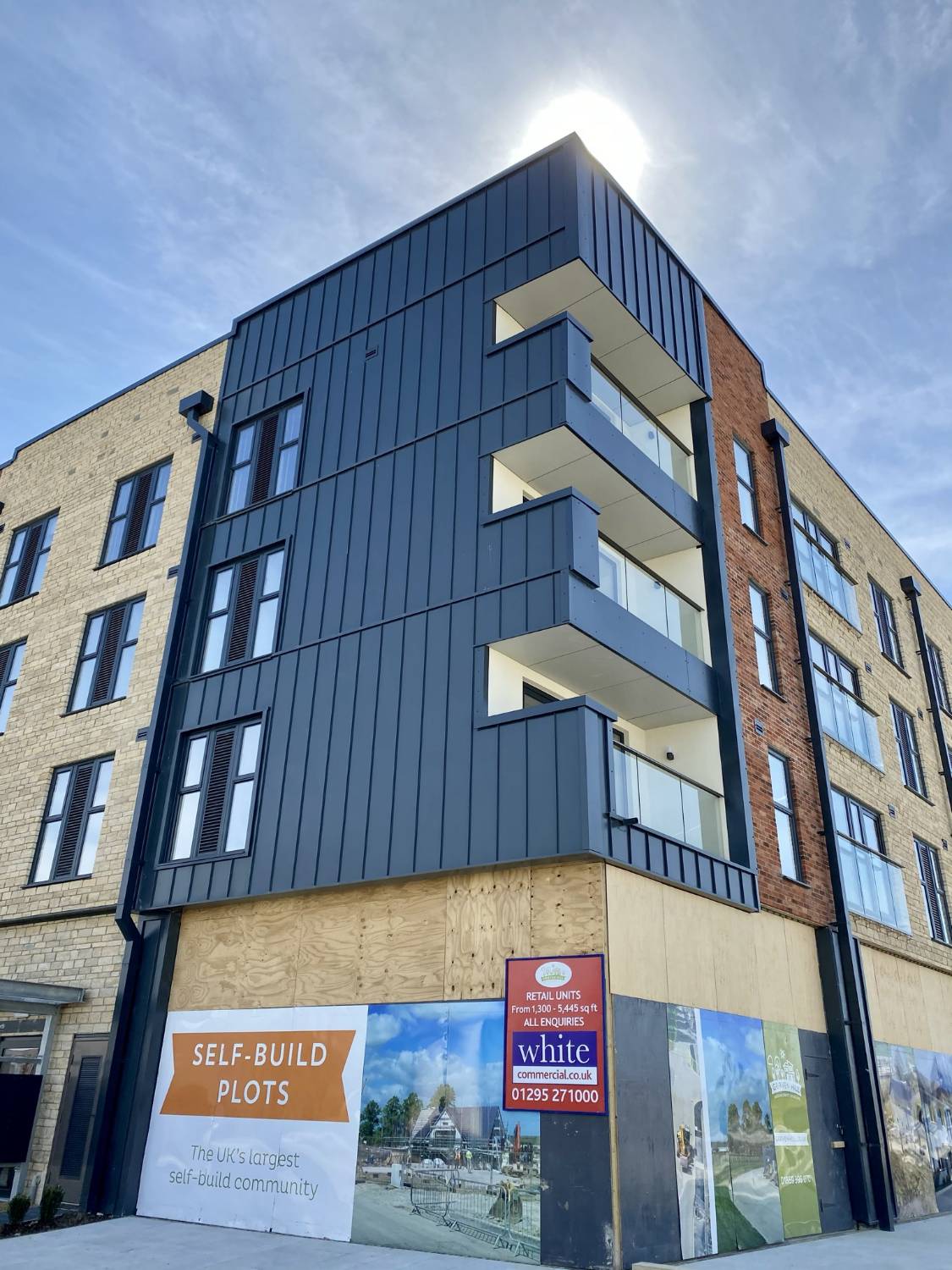

·        1,000m² of APL SnapLoc™ traditional standing seam system in steel with a RAL 7016 PUF coating

·        APL Tritherm™ GALV sub-framing to APL SnapLoc™ areas

·        All flashings, fixings and accessories



Building Location:

·        Oxford
