The design brief

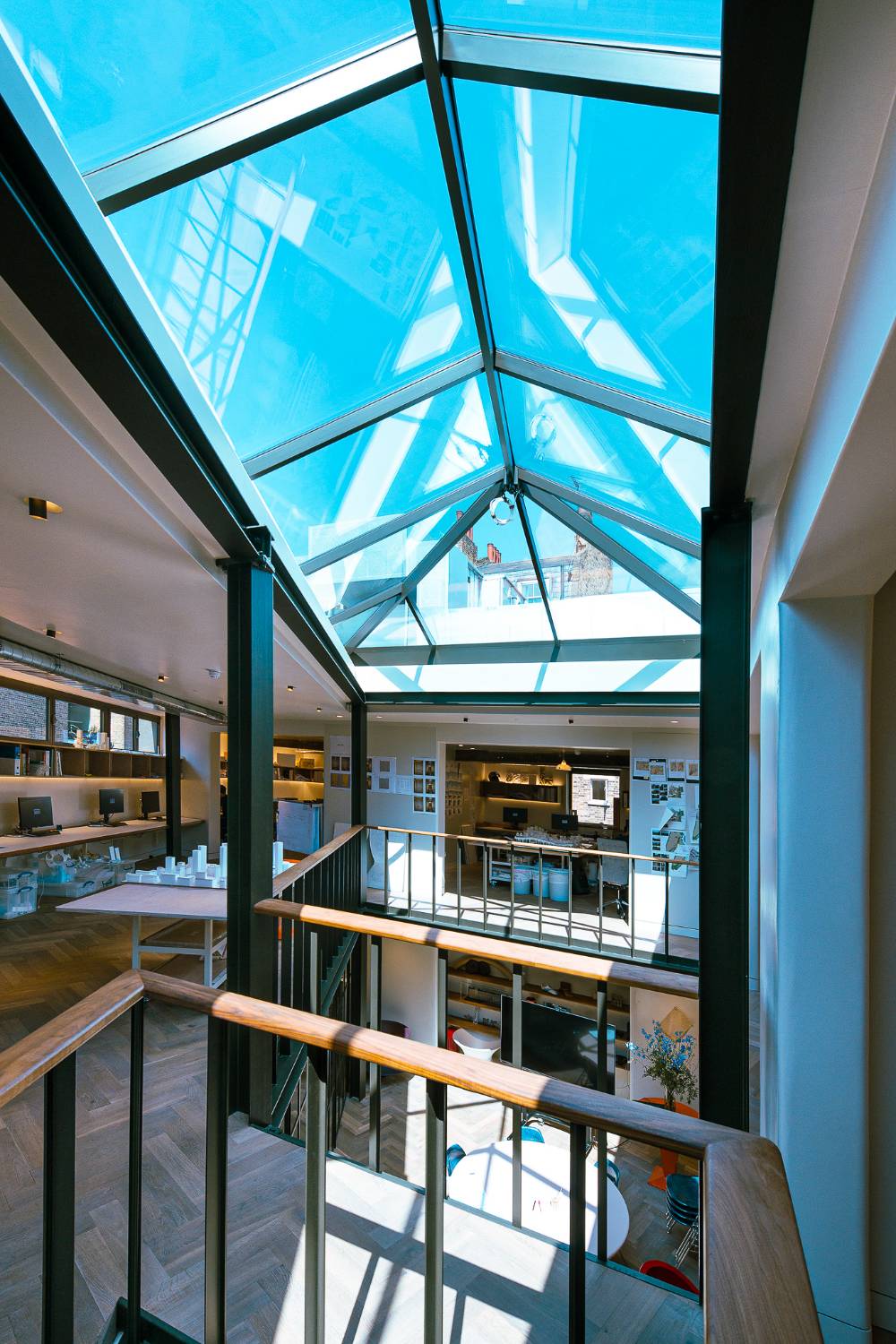

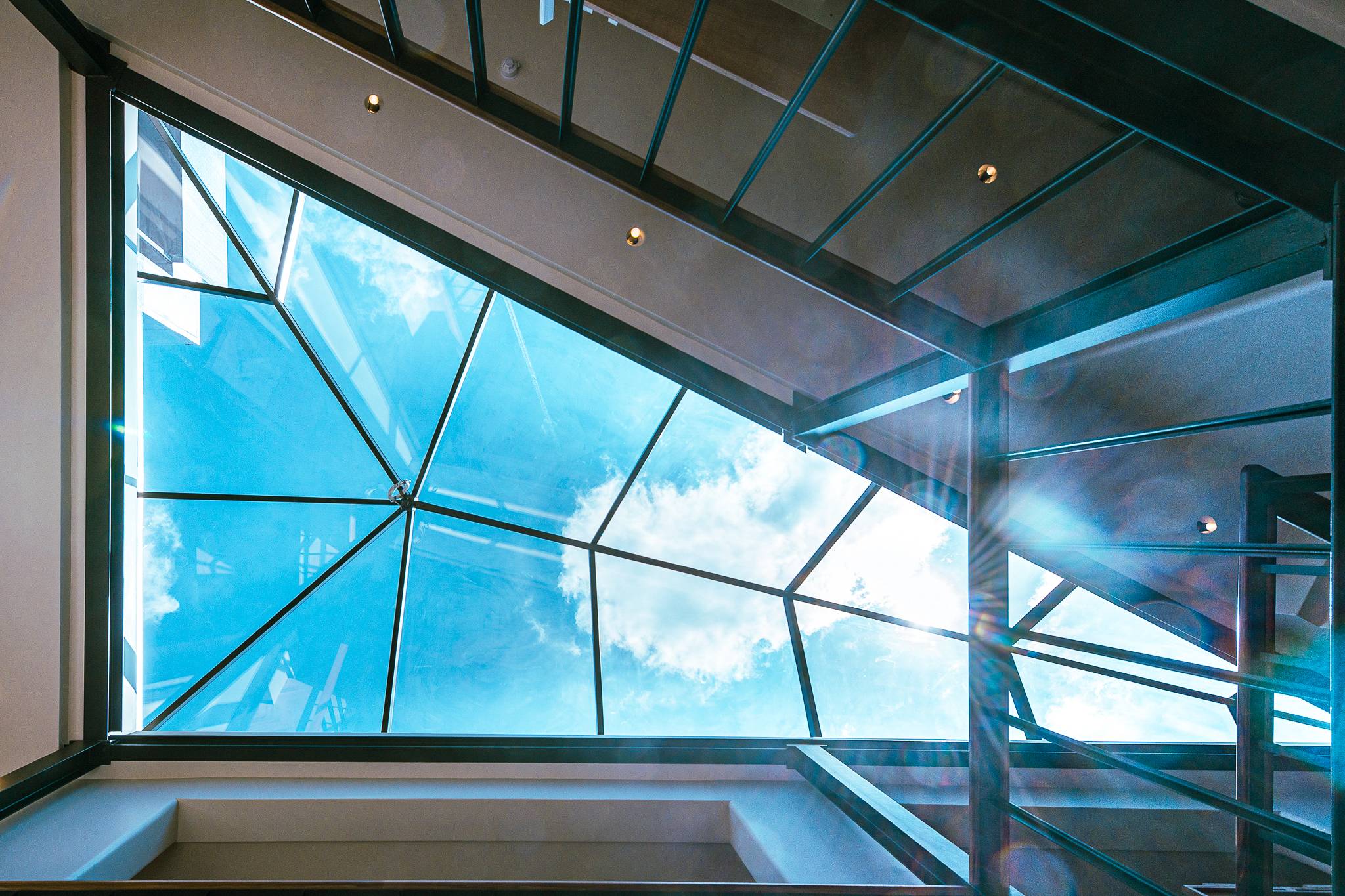

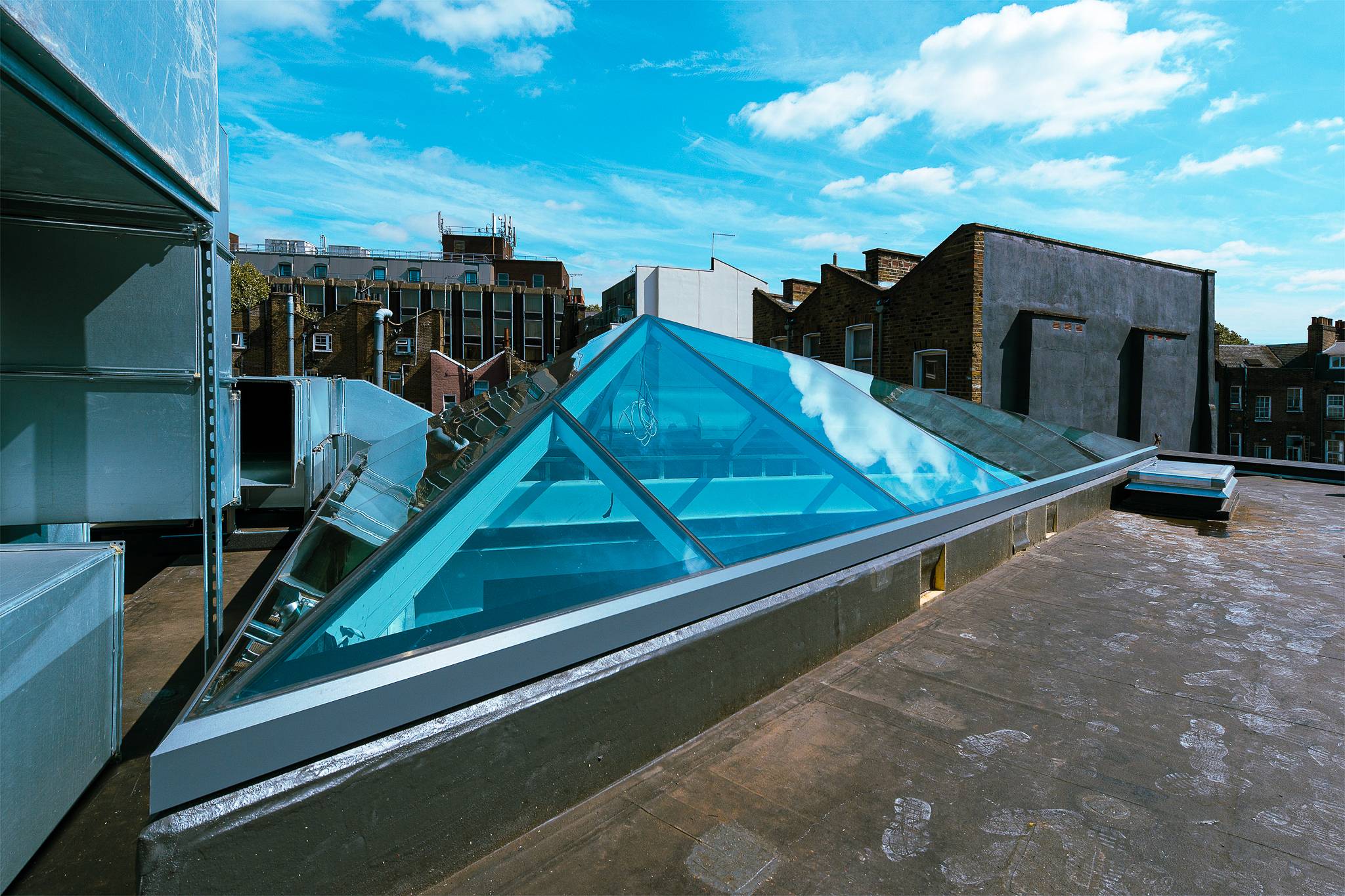

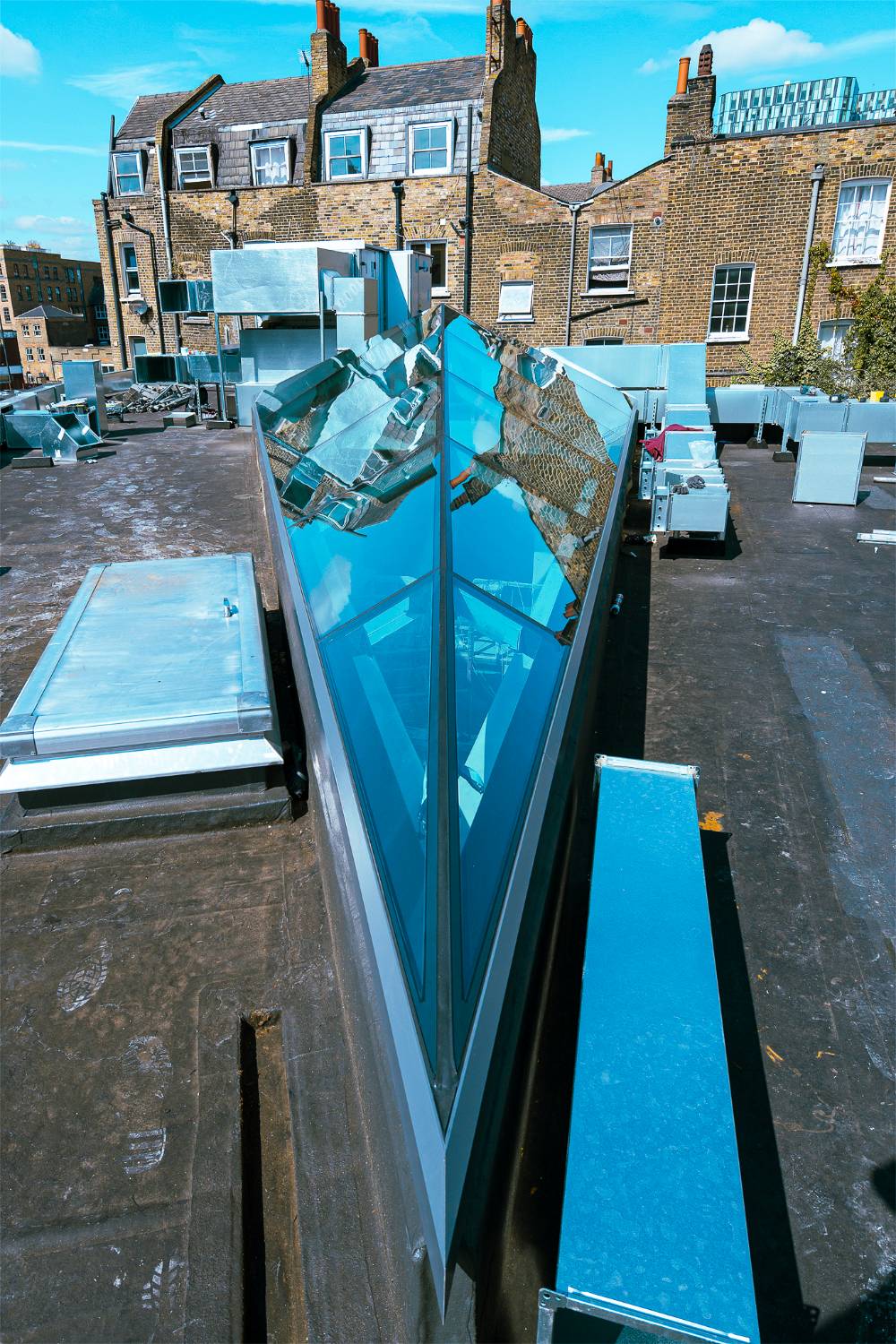

Our brief from Heatherwick Studios was to design, supply & install a free spanning self-supporting 3D triangular rooflight, to replace a more traditional rooflight that was supported by secondary steel.

The Challenge

A rooflight of this type would normally be fully fabricated and welded as a single frame off-site. The challenge was in the installation of the rooflight as stick construction to align the connection correctly so the glass lines would be true against the framework and the engagement correct. There was only a +/-2mm tolerance.

The Solution

The rooflight is 9m x 4m and is fully self-supporting, modelled with in our SOLIDWORKS 3D design software. The supporting members are a combination of 50mm x 120mm and 50mm x 80mm steel sections.

The scope of the overall project was to provide offices for Heatherwick Studios. British designer Thomas Heatherwick founded Heatherwick Studio in 1994 to bring craft, design, architecture and urban planning together in a single workspace
