St George's Hospital, Roehampton

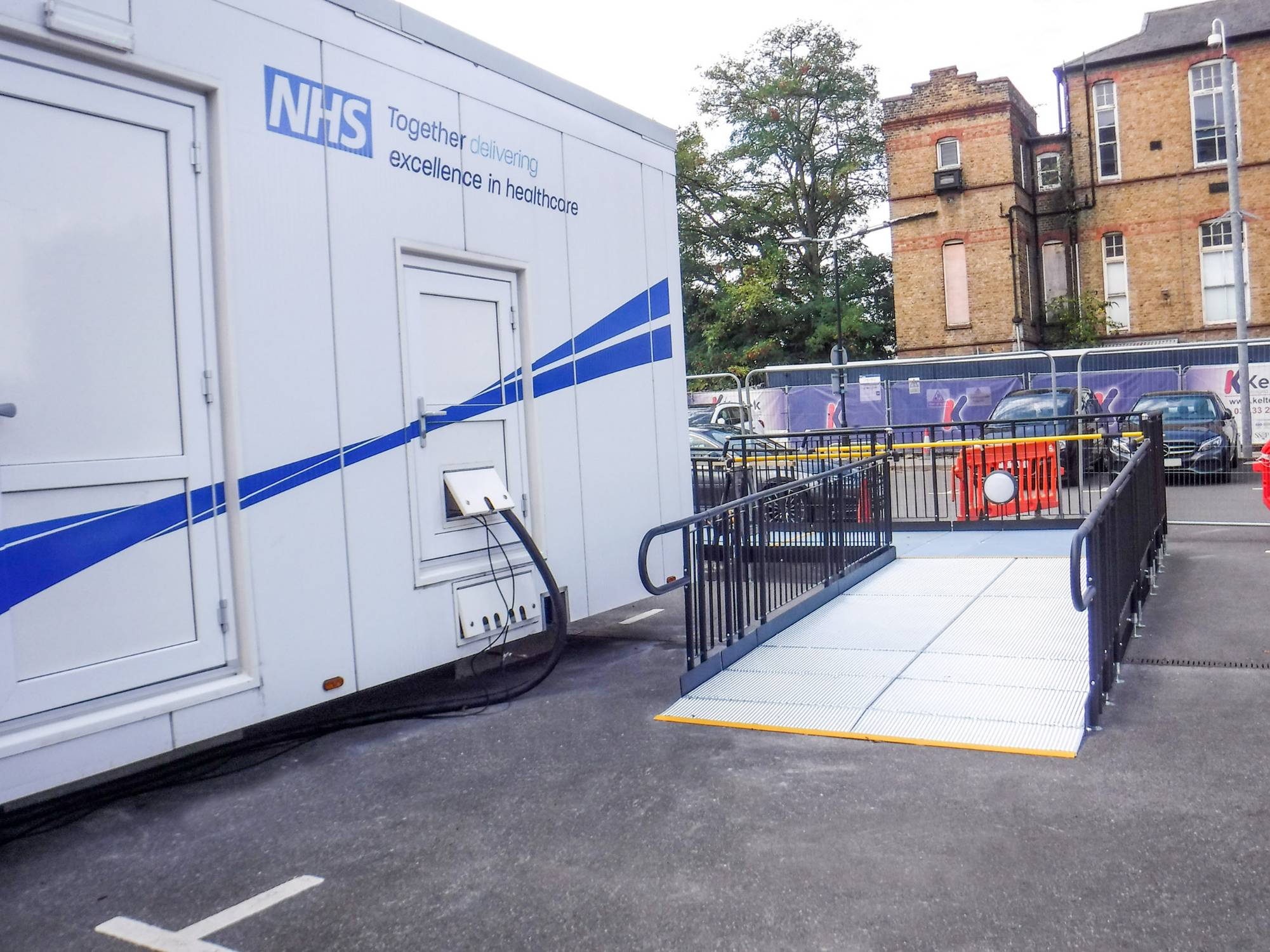

REQUIREMENT: Two temporary laboratories were planned for installation in the hospital parking lot.

It was determined that a ramp with a wide platform was necessary to accommodate the diverse range of daily users of the system, including those operating patient-moving equipment, carts, and pedestrians accessing the cabins.

END RESULT:

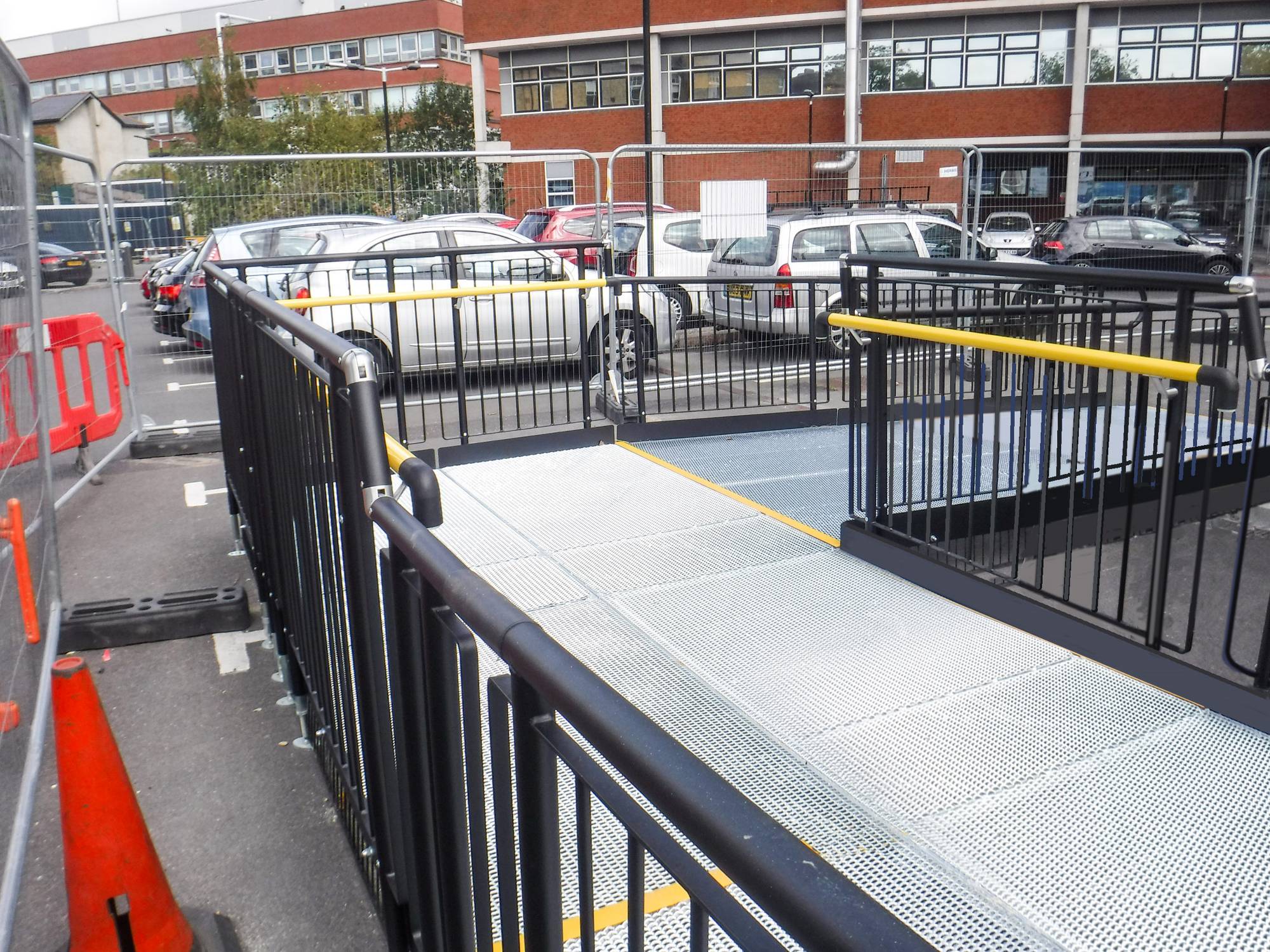

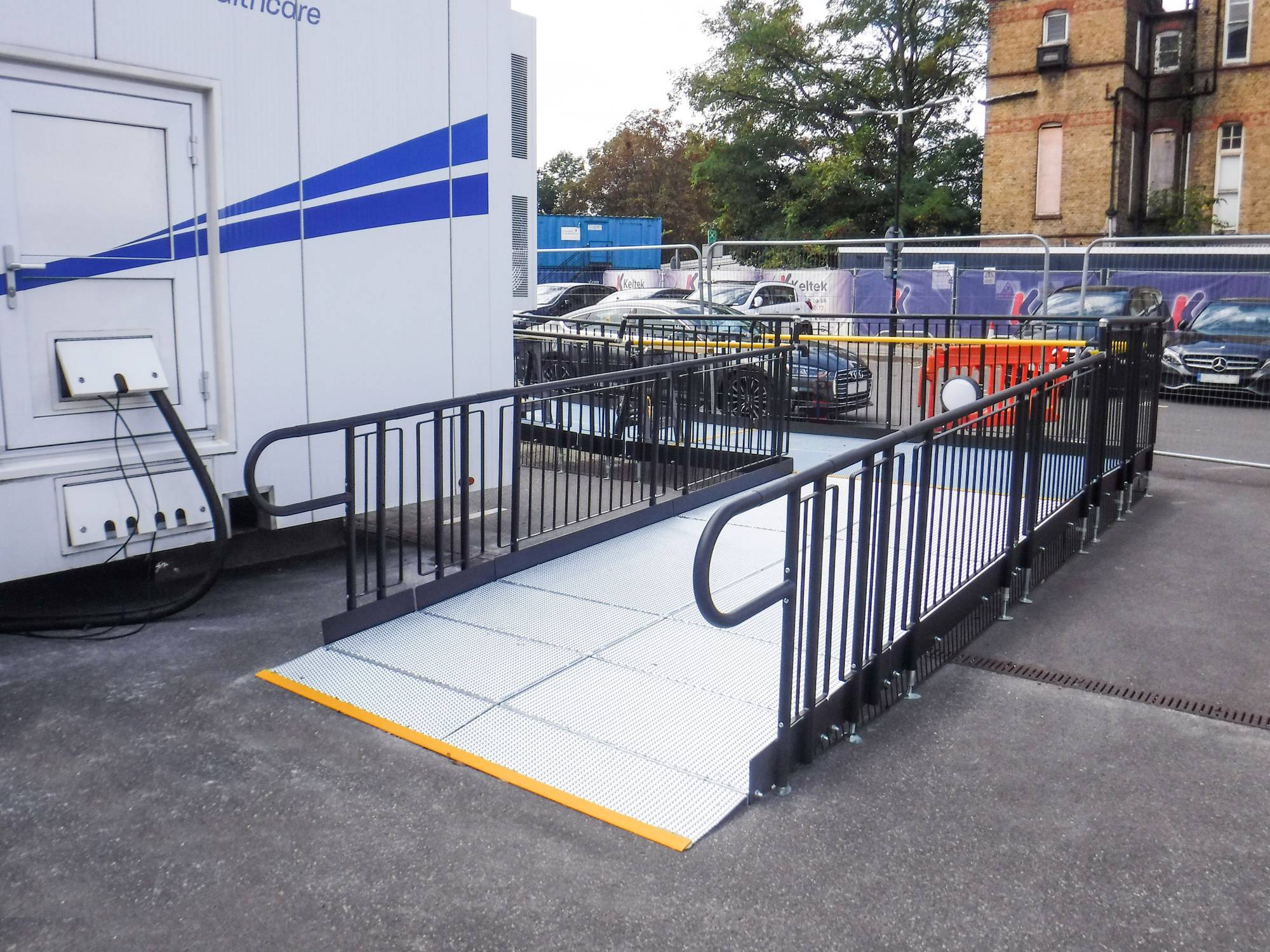

A fully compliant ramp featuring an extra-wide metal walkway was designed and successfully installed. This product boasts a secure loading capacity of over one ton!

FEATURES INCLUDED:

• Yellow Tread - this is a safety feature designed to help those with impaired vision identify the nose of the ramp or step. Additionally, it helps users distinguish any level changes.
• Infill Handrail - if the ramp height exceeds 380mm, Infill handrail is a requirement to prevent users from climbing or falling through gaps.
• 1100mm High Rail - 1100mm handrails are attached to any level sections.
• Mesh Platform – a self-draining mesh platform allows water to pass through rather than puddle on the surface and potentially freeze. Minimum width: 1500mm.
• Rest Platform - a rest platform at 5 metres is required to allow the user to pause.
• Trombone Ends - these are added to the ends of a Rapid Ramp to prevent clothes catching.
• Standard Continuous Handrail - this handrail system ensures the users always have support to hold onto.

EXTRA FEATURE INCLUDED:

• Yellow 900mm High Handrail To Ramped Sections – designed to be gripped by children and wheelchair users. A bright colour such as yellow is generally the easiest to see because of the colour's ability to reflect light.
