SPUN COPPER DECK DRAIN - NO HUB
Verified by manufacturer 4 months ago
Certificate of Approval cdfa
Certificate type
Menzies Spun Copper Deck Insert Drain - No Hub Mechanical Connection . Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
Application
Deck Drain
Description
Menzies Spun Copper Deck Insert Drain. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
- To be used for new construction for No-Hub mechanical connections.
- For use over heated and non-heated areas.
- Flush spun copper deck drain for pedestrian traffic areas.
- Available in size 2″ (51mm) and 3″ (76mm).
- Standard 4″ (102mm) flange.
- No Hub for mechanical connections.
- NOTE: Drain should be used only in a visible maintenance area in conjunction with auxiliary overflow drains.
- 2″ & 3″ listed to meet Canadian and U.S. standards by QAI, meets CSA B79 and ASME A112.6.4.
- Also available in TPO Direct Weld™ and PVC
- 10-Year Warranty
General information
Color | Copper |
Finish | Copper |
Material | Copper |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS | 22 14 26.13 Roof Drains Primary |
Specification data - Roof Drains
Sustainability data
Material | Copper |
Product certifications
Certificate of Approval cdfa
CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.
Literature
Literature type
MATERIALS SAFETY DATA SHEET CU/AL

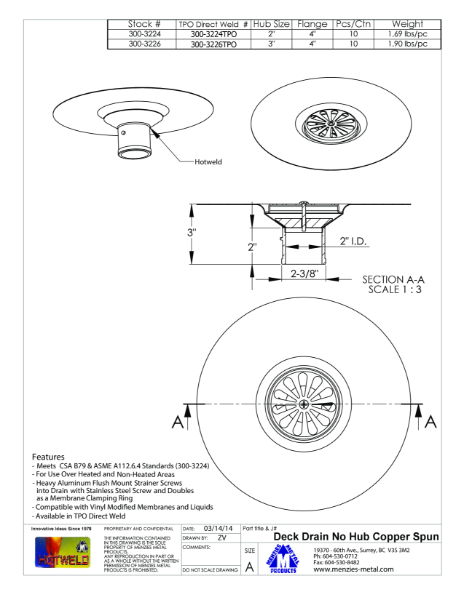

TECHNICAL DRAWING - SPUN COPPER DECK DRAIN_NO HUB

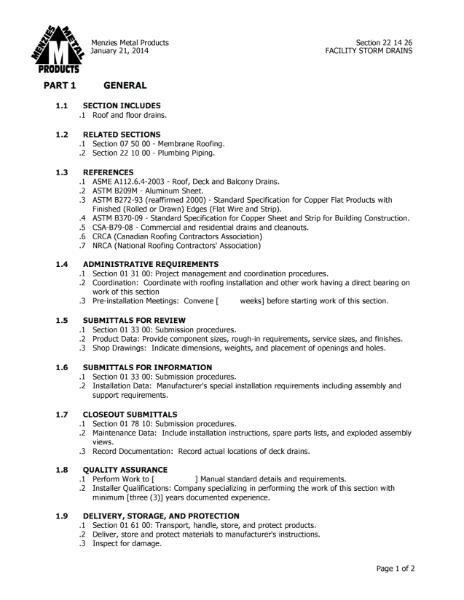

PRODUCT SPECIFICATIONS - SPUN COPPER DECK DRAIN
