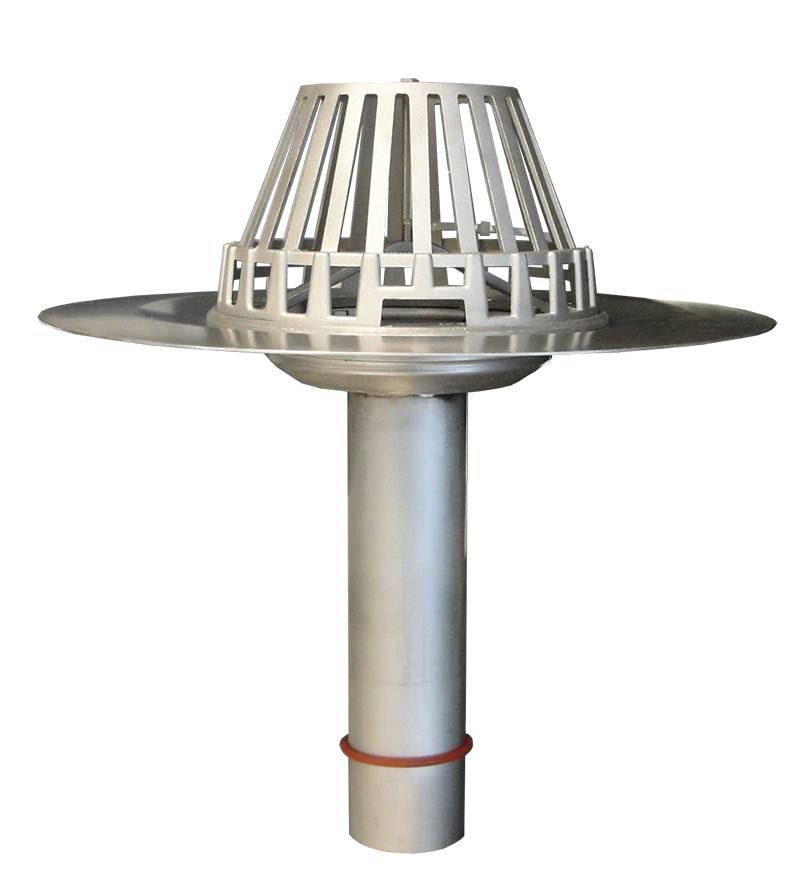

CLAMP-TITE SPUN ALUMINUM DRAIN - SMALL BOWL
Verified by manufacturer 6 months ago
Certificate of Approval cdfa
Certificate type
Menzies Clamp-Tite™ series Spun Aluminum Small Bowl Insert Roof Drain. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
Description
- Flat shallow bowl fits existing drains with shallow bowls.
- Stainless steel screw fastens down aluminum aluminum strainer.
- Lower clamping ring mount is spun into drain bowl. It’s embedded. No bolts protruding through drain body.
- Cast aluminum strainer fastened with hex head stainless steel screw.
- Custom pipe lengths available by request.
- Stocked in insert sizes 2″ (51mm), 3″ (76mm) and 4″ (102mm).
- 3″ and 4″ compatible with Blue Drain Seal™.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
- For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
- Also available in TPO Direct Weld™..
- Longer pipes available.
- 10-Year Warranty
General information
Material | Aluminium |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
CMS | 22 14 26.13 Roof Drains Primary |
Sustainability data
Material | Aluminium |
Product certifications
Certificate of Approval cdfa
CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.
Literature
Literature type
MATERIALS SAFETY DATA SHEET CU/AL
TECHNICAL DRAWING - CLAMP-TITE AL DRAIN_SMALL BOWL
