CLAMP-TITE ALUMINUM FLAT TOP DRAIN
Verified by manufacturer 6 months ago
Clamp-Tite Aluminum Flat Top Drain
Description
- Low bowl aluminum drains with clamping ring.
- Heavy construction to withstand foot traffic.
- Stocked insert sizes 2″ (1 7/8″ OD); 51mm (48mm OD), 3″ (2.75″ OD); 76mm (70mm OD), 4″ (3.75″ OD); 102mm (95mm OD).
- Total Height from Deck .56″ (14.2mm).
- Used in foot traffic areas in concrete substrate.
- Same connections as conventional drain.
- Longer pipes available.
- 10-Year Warranty
General information
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Literature
Literature type

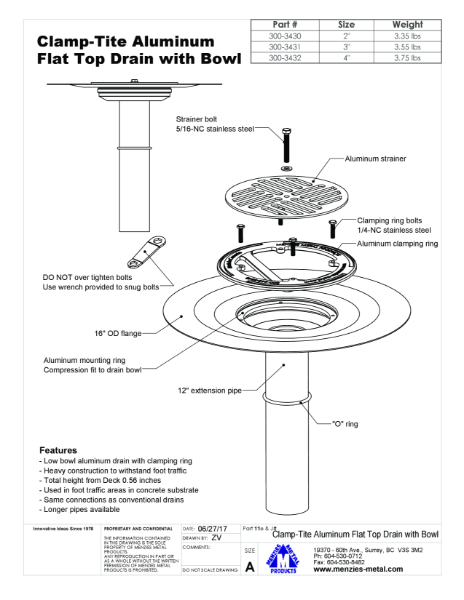

TECHNICAL DRAWING - CLAMP-TITE AL FLAT TOP WITH BOWL
MATERIALS SAFETY DATA SHEET CU/AL
