CLAMP-TITE SPUN COPPER DRAIN - NO HUB - roof drain

Verified by manufacturer 2 months ago

Menzies Metal Product certifications:
  • Certificate of Approval cdfa

    Certificate of Approval cdfa

    Certificate type

CLAMP-TITE SPUN COPPER DRAIN - NO HUB FOR NEW CONSTRUCTION ONLY

Jump to:
1-800-665-8840 Website

Application

PRIMARY ROOF DRAIN - NO HUB DESIGN FOR NEW CONSTRUCTION

Description

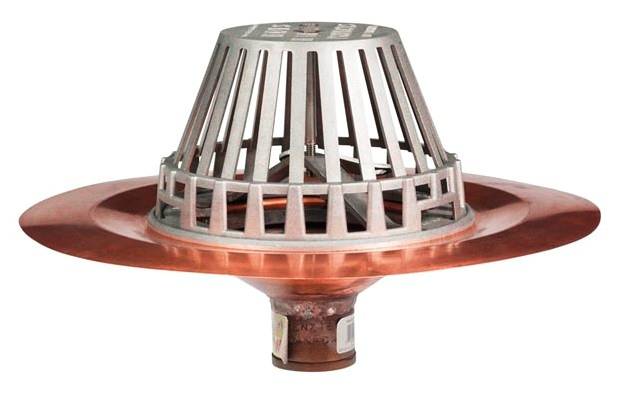

Menzies Clamp-Tite™ series spun copper no hub roof drain. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840). NO HUB DESIGN FOR NEW CONSTRUCTION

  • Clamping ring bolts down into compression fit mounting ring.
  • Stainless steel screw fastens die-cast aluminum strainer.
  • No vertical studs to interfere with membrane.
  • Lower clamping ring mount is embedded in the drain bowl. No bolts penetrating drain body.
  • Cast aluminum strainer.
  • All fasteners are stainless steel.
  • Stocked in insert sizes 2″ (51mm), 3″ (76mm)and 4″ (102mm).
  • Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
  • For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
  • Also available in TPO Direct Weld™.
  • 10-Year Warranty

General information

Color

Copper

Finish

Copper

Material

Copper

Shape

Circle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

3Ds Max
-

1

DWG
-

1

SketchUp
-

1

OBJ
-

1

Product certifications

Certificate of Approval cdfa

Certificate of Approval cdfa

CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.

Literature

MATERIALS SAFETY DATA SHEET CU/AL

MATERIALS SAFETY DATA SHEET CU/AL

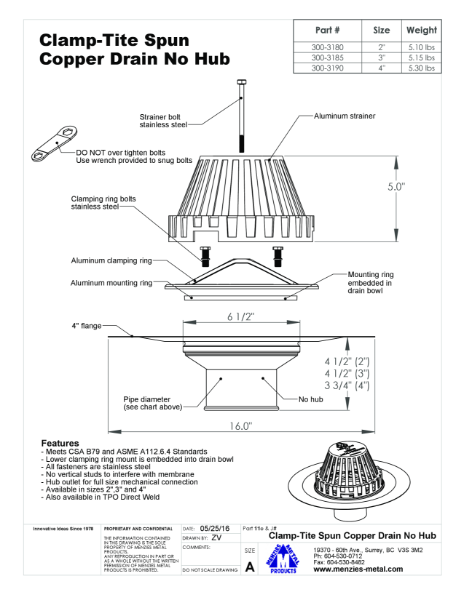

TECHNICAL DRAWING - CLAMP-TITE SPUN COPPER DRAIN - NO HUB

TECHNICAL DRAWING - CLAMP-TITE SPUN COPPER DRAIN - NO HUB

INSTALLATION INSTRUCTIONS CLAMP-TITE SPUN CU DRAIN - NO HUB

INSTALLATION INSTRUCTIONS CLAMP-TITE SPUN CU DRAIN - NO HUB

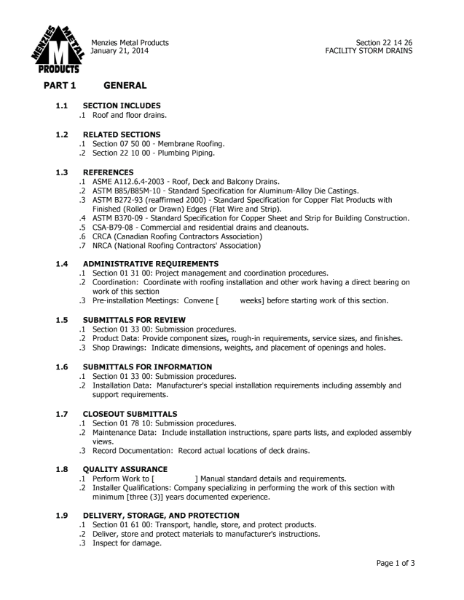

PRODUCT SPECIFICATION - CLAMP-TITE COPPER DRAIN-NO HUB

PRODUCT SPECIFICATION - CLAMP-TITE COPPER DRAIN-NO HUB

INSTALLATION INSTRUCTIONS - CLAMP-TITE COPPER DRAIN - NO HUB

INSTALLATION INSTRUCTIONS - CLAMP-TITE COPPER DRAIN - NO HUB
