CLAMP-TITE ALUMINUM FLAT TOP DRAIN - NO BOWL - roof drain
Verified by manufacturer 6 months ago
Certificate of Approval cdfa
Certificate type

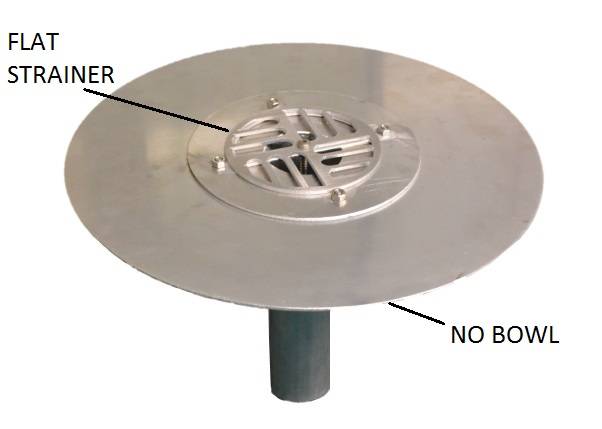

Clamp-Tite Aluminum Flat Top Drain - No Bowl features a flat top strainer to withstand foot traffic.
Application
Roof or Deck Drain
Description
- No bowl flat top aluminum drains with clamping ring.
- Heavy construction to withstand foot traffic.
- Total Height from Deck .56″ (14mm).
- Stocked insert sizes 2″ (1 7/8″ OD); 51mm (48mm OD), 3″ (2.75″ OD); 76mm (70mm OD), 4″ (3.75″ OD); 102mm (95mm OD).
- Used in foot traffic areas in concrete substrate.
- High strainers would be intrusive or inappropriate.
- Flat bottom, no bowl sits flat on concrete with cored hole through concrete, where drain with bowl will not work.
- Same connections as conventional drain.
- 2″ and 3″ listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.3.
- Longer pipes available.
- Available in TPO and PVC
- 10-Year Warranty
General information
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS | 22 14 26.13 Roof Drains Primary |
