CLAMP-TITE SPUN COPPER DRAIN SMALL BOWL - TPO (thermoplastic polyolefin)
Verified by manufacturer 5 months ago
Certificate of Approval cdfa
Certificate type

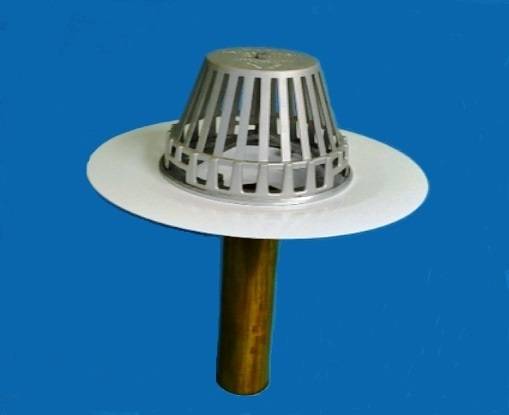

Menzies Clamp-Tite™ series Spun Copper Small Bowl Insert Roof Drain with TPO Direct Weld™. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
Application
TPO Roof Drain
Description
- TPO Direct Weld™coated flange.
- Flat shallow bowl fits existing drains with shallow bowls.
- Stainless steel screw fastens down aluminum aluminum strainer.
- Lower clamping ring mount is spun into drain bowl. It’s embedded. No bolts protruding through drain body.
- Cast aluminum strainer fastened with hex head stainless steel screw.
- Stocked in insert sizes 2″ (51mm), 3″ (76mm)and 4″ (102mm).
- Custom pipe lengths available by request.
- 3″ and 4″ compatible with Blue Drain Seal™.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.
- For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
- Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
- Longer pipes available.
- 10-Year Warranty
General information
Material | Thermoplastic polyolefin (TPO) Copper |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS | 22 14 26.13 Roof Drains Primary |
Sustainability data
Material | Thermoplastic polyolefin (TPO) Copper |
Product certifications
Certificate of Approval cdfa
CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.
Literature
Literature type
MATERIALS SAFETY DATA SHEET CU/AL
TECHNICAL DRAWING - CLAMP-TITE SPUN COPPER DRAIN SMALL BOWL - TPO (thermoplastic polyolefin)
PRODUCT SPECIFICATION - CLAMP-TITE SPUN COPPER DRAIN SMALL BOWL - TPO (thermoplastic polyolefin)
INSTALLATION INSTRUCTIONS - CLAMP-TITE SPUN COPPER DRAIN SMALL BOWL - TPO (thermoplastic polyolefin)
