Trimclad®
Verified by manufacturer over a year ago
High tensile roofing and wall cladding.
Application

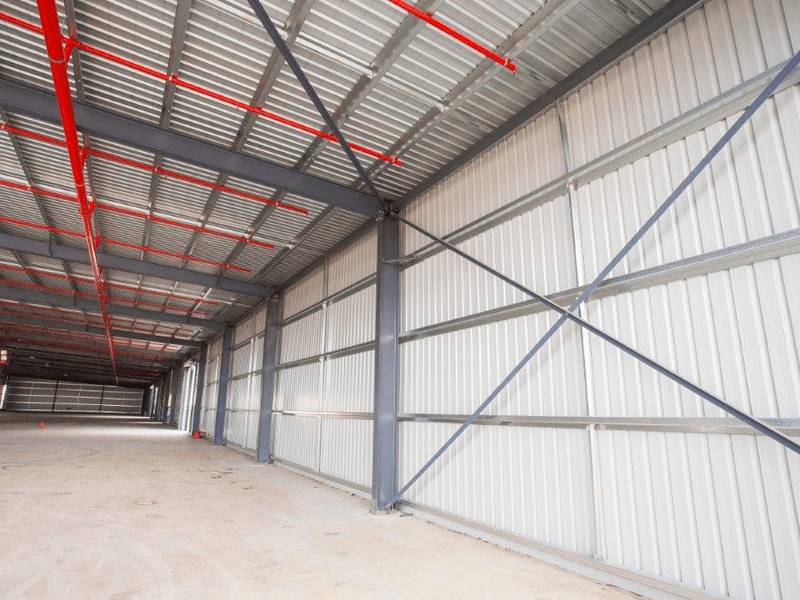

Suitable as roofing and walling on commercial and industrial buildings. Ideal as roofing on carports, garages and patios, and as fencing, fascia and facade work.
Description
Trimclad® is a custom length, high tensile roofing and wall cladding manufactured from COLORBOND®, ZINCALUME® and galvanised steels. Some of its features are:
- Suitable for roofing and walling.
- Long spanning capability.
- Range of accessories.
- Available in long lengths and can be cut in custom lengths.
- Comes in a wide range of COLORBOND® steel colours.
General information
Shape | Rectangle. |
Material | Steel. |
Size | Sizes are cut to order, dependent on load limit regulations set by local transport authorities. |
Uniclass | |
SpecPack | 07600 Metal Roofing, Siding and Roof Plumbing |
NATSPEC National Classification System | 0421 Roofing - Combined 0423 Roofing – Profiled Sheet Metal 0436 Cladding – Profiled and Seamed Sheet Metal 0431 Cladding - Combined |
SpeedSpec | 07462 Cladding External Walls 07610 Roofing and Roof Plumbing |
Specification data - Steel profiled sheet
Grade | G550. |
Coating class | AM150. |
Base Metal thickness (BMT) | 0.35 mm.Guidance for specification option: Available for walling applications only. Maximum spans of 2400 mm for end span and 3000 mm for internal span. 0.42 mm.Guidance for specification option: Maximum spans:
0.48 mm.Guidance for specification option: Maximum spans:
Manufacturer guidanceIf installed as roofing, minimum pitch of 2° (1 in 30) is required. Maximum spans are based on N2 wind category and 1.5 mm substrate. |
Profile | |

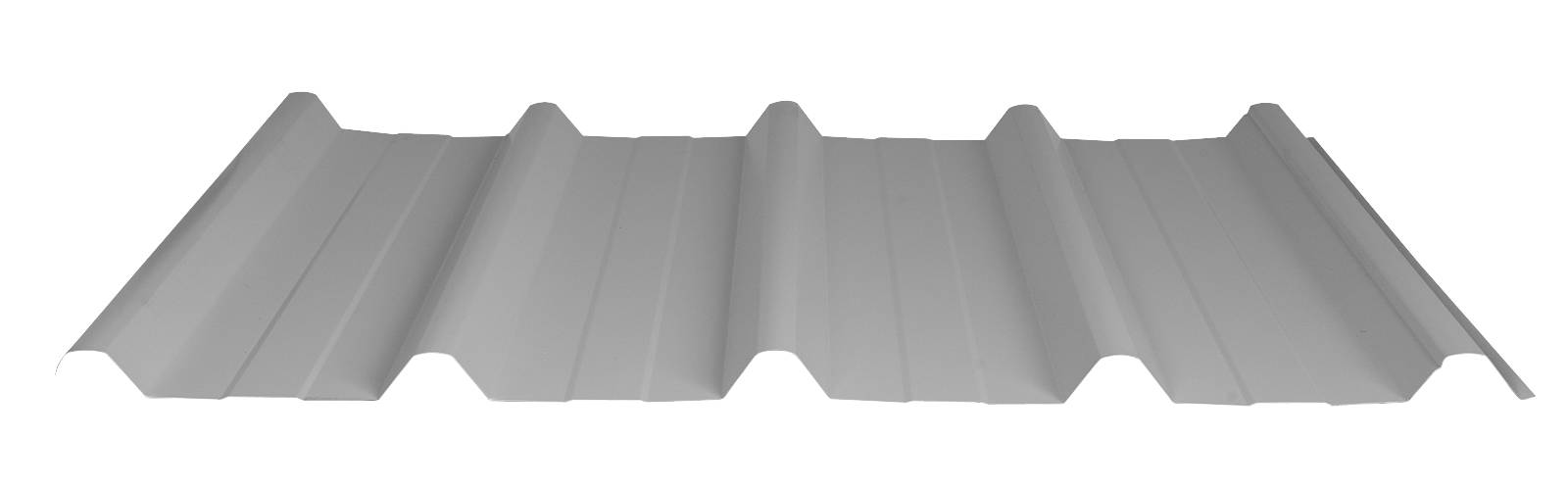

Form | Trapezoidal. |
Height | 29 mm. |
Cover width | 762 mm. |
Colour | Manufacturer guidanceAvailable in a range of COLORBOND® steel colours. Comes in standard aluminium colour for ZINCALUME® steel. |
Material | COLORBOND® steel. ZINCALUME® steel. |
Category of use | Roofing. Walling. |
Mass | 3.53 kg/m² (0.35 mm COLORBOND® steel) 4.35 kg/m² (0.42 mm COLORBOND® steel). 4.93 kg/m² (0.48 mm COLORBOND® steel). 3.70 kg/m² (0.35 mm ZINCALUME® steel) 4.28 kg/m² (0.42 mm ZINCALUME® steel). |
Length | Manufacturer guidanceSizes are cut to order. Recommended maximum runs are 17 m for dark-coloured sheeting and 24 m for light-coloured sheeting. Allow for a manufacturing tolerance of ±10 mm. |
Span | 600 mm. 900 mm. 1200 mm. 1500 mm. 1800 mm. Manufacturer guidanceUse in conjunction with Design Notes. Dependent on fastener frequency, span type and support thickness. |
Frame or support | Timber supports. Guidance for specification option:
0.48 mm to 1.5 mm BMT steel supports. Guidance for specification option:
1.5 mm to 4.5 mm BMT steel supports. Guidance for specification option:
|
Weather conditions | Manufacturer guidanceContact local manufacturer if to be used within 1 km of industrial, chemical, marine or corrosive environments. |
Compatibility | Manufacturer guidanceTrimclad® is not compatible with lead, copper, bare metal and some chemically treated timbers. |
Sustainability data
Country of product manufacture | Australia |
Literature
Trimclad Design Guide
Metroll Cyclonic Design Manual for Roofing and Walling
COLORBOND® Colour Range
