Metrospan®
Verified by manufacturer over a year ago
Roll formed roofing and wall sheeting.
Application

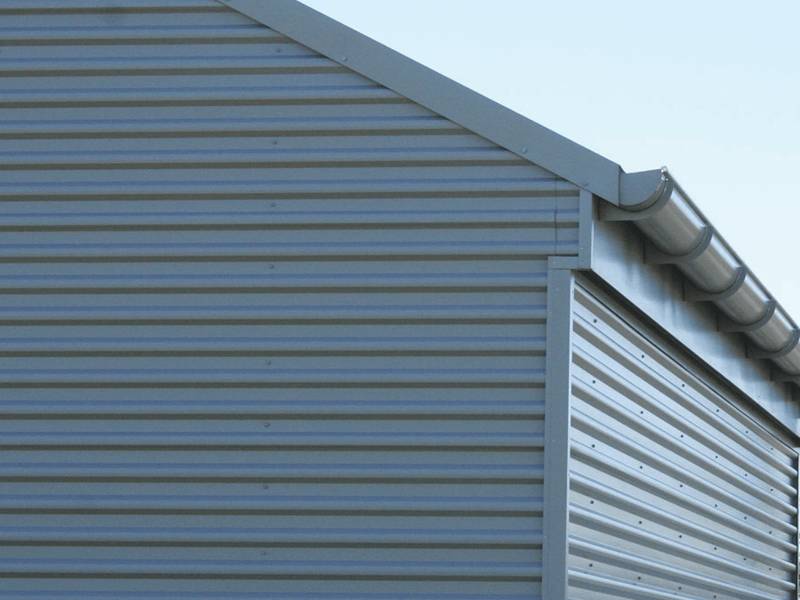

Suitable as roofing and walling on commercial and industrial buildings, roofing for new homes, home extensions, carports, garages, patios, fascia and facade work.
Description

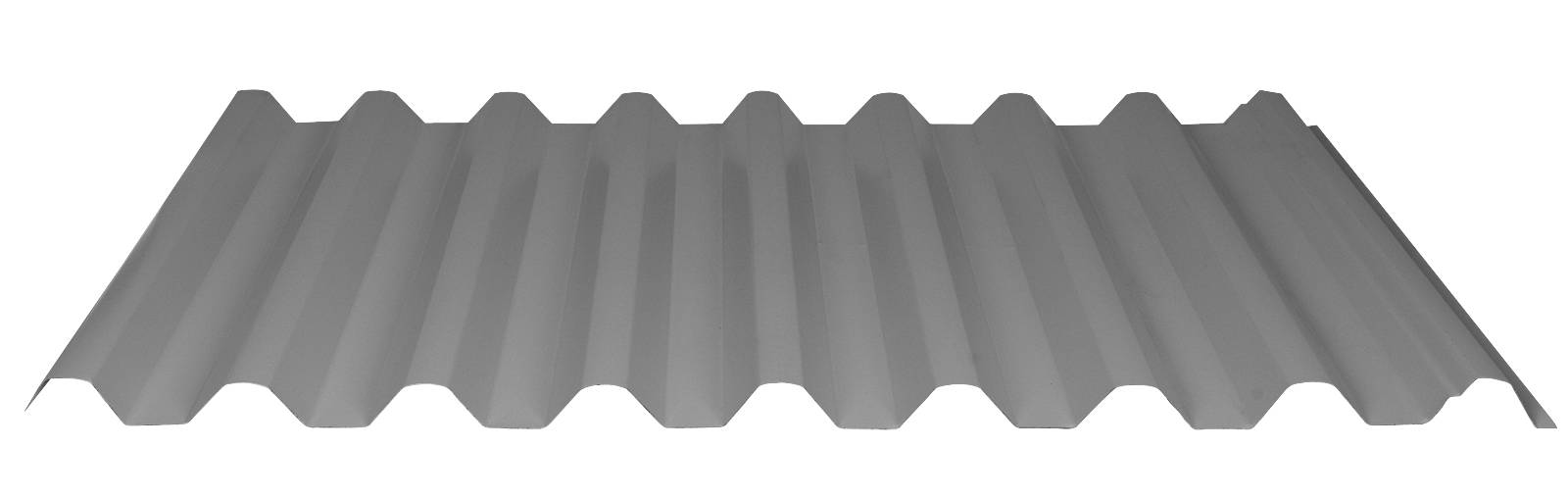

Metrospan® is a roll formed roofing and wall sheeting manufactured from COLORBOND®, ZINCALUME® and galvanised steels. Some of its features are:
- Suitable for roofing and walling.
- Can be cut in custom lengths.
- Has a long spanning capability.
- Comes in a wide range of COLORBOND® steel colours.
General information
Shape | Rectangle. Corrugated. |
Material | Steel. |
Size | Sizes are cut to order, dependent on load limit regulations set by local transport authorities. |
Uniclass | |
SpecPack | 07600 Metal Roofing, Siding and Roof Plumbing |
NATSPEC National Classification System | 0421 Roofing - Combined 0423 Roofing – Profiled Sheet Metal 0436 Cladding – Profiled and Seamed Sheet Metal 0431 Cladding - Combined |
SpeedSpec | 07462 Cladding External Walls 07610 Roofing and Roof Plumbing |
Specification data - Steel profiled sheet
Grade | G550. |
Coating class | AZ150. |
Base Metal thickness (BMT) | 0.35 mm.Guidance for specification option: Subject to availability; check with local manufacturer. 0.42 mm.Guidance for specification option: Maximum spans:
0.48 mm.Guidance for specification option: Maximum spans:
Manufacturer guidanceIf installed as roofing, minimum pitch of 2° (1 in 30) is required. |
Profile | |
Form | Sinusoidal. |
Height | 24 mm. |
Cover width | 700 mm. |
Colour | Manufacturer guidanceAvailable in a range of COLORBOND® steel colours. Comes in standard aluminium colour for ZINCALUME® steel. |
Material | COLORBOND® steel. ZINCALUME® steel. |
Category of use | Roofing. Walling. |
Mass | 4.74 kg/m² (0.42 mm COLORBOND® steel). 5.37 kg/m² (0.48 mm COLORBOND® steel). 4.66 kg/m² (0.42 mm ZINCALUME® steel). 5.23 – 5.29 kg/m² (0.48 mm ZINCALUME® steel). |
Length | Manufacturer guidanceSizes are cut to order. Recommended maximum runs are 17 m for dark-coloured sheeting and 24 m for light-coloured sheeting. Allow for a manufacturing tolerance of ±0 to 15 mm. |
Span | 900 mm. 1200 mm. 1500 mm. 1800 mm. 2100 mm. Manufacturer guidanceUse in conjunction with Design Notes. Dependent on fastener frequency, span type and support thickness. |
Frame or support | Timber supports. Guidance for specification option:
0.42 mm to 1.5 mm BMT steel supports. Guidance for specification option:
1.5 mm to 4.5 mm BMT steel supports. Guidance for specification option:
|
Weather conditions | Manufacturer guidanceContact local manufacturer if to be used within 1 km of industrial, chemical, marine or corrosive environments. |
Compatibility | Manufacturer guidanceMetrospan® is not compatible with lead, copper, bare metal and some chemically treated timbers. |
Sustainability data
Country of product manufacture | Australia |
Literature
Metrospan Design Guide
Metroll Cyclonic Design Manual for Roofing and Walling
COLORBOND® Colour Range
