Hi-Deck 650®
Verified by manufacturer over a year ago

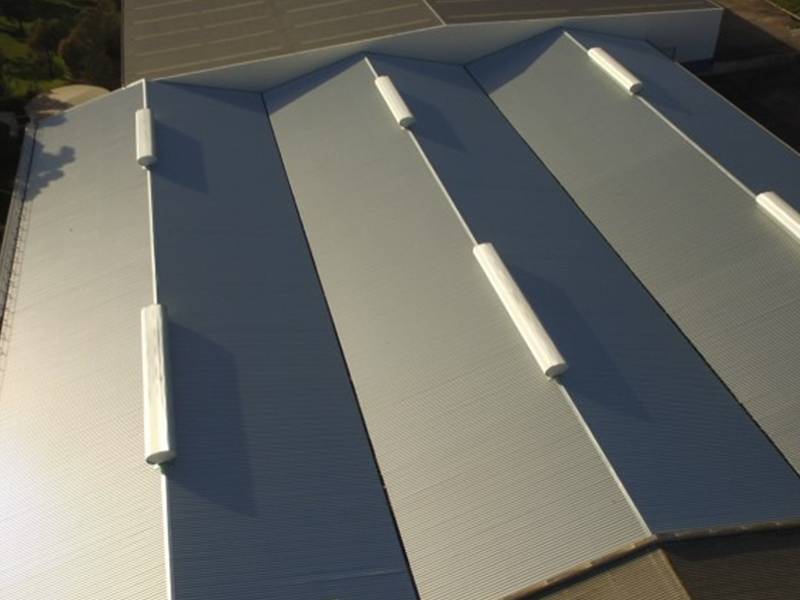

Large span, continuous roof cladding profile. Only available in WA.
Application
Suitable for renovations and new construction of commercial and industrial buildings.
Description
Hi-Deck 650® is a large span, continuous roof cladding manufactured from COLORBOND® and ZINCALUME® steels. Some of its features are:
- Lightweight roofing.
- Offered in custom and long lengths.
- Comes in a wide range of COLORBOND® steel colours.
General information
Shape | Rectangle. |
Material | Steel. |
Size | Sizes are cut to order, dependent on load limit regulations set by local transport authorities. |
Uniclass | |
SpecPack | 07600 Metal Roofing, Siding and Roof Plumbing |
NATSPEC National Classification System | 0421 Roofing - Combined 0423 Roofing – Profiled Sheet Metal |
SpeedSpec | 07610 Roofing and Roof Plumbing |
Specification data - Steel profiled sheet
Grade | G550. |
Coating class | AZ150. |
Base Metal thickness (BMT) | 0.42 mm.Guidance for specification option: Maximum spans:
0.48 mm.Guidance for specification option: Maximum spans:
Manufacturer guidanceMinimum pitch of 1° (1 in 50) is required. |
Profile | |

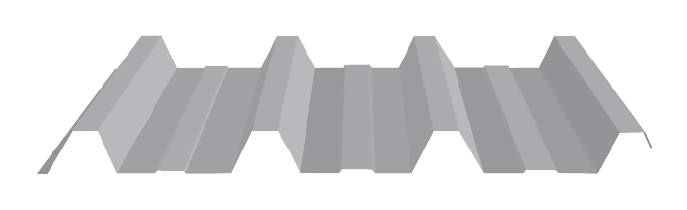

Form | Trapezoidal. |
Height | 50 mm. |
Cover width | 650 mm.Manufacturer guidanceSheet width of 725 mm. |
Colour | Manufacturer guidanceAvailable in a range of COLORBOND® steel colours. Comes in standard aluminium colour for ZINCALUME® steel. |
Material | COLORBOND® steel. ZINCALUME® steel. |
Mass | 5.01 kg/m² (0.42 mm COLORBOND® steel). 5.69 kg/m² (0.48 mm COLORBOND® steel). 4.96 kg/m² (0.42 mm ZINCALUME® steel). 5.64 kg/m² (0.48 mm ZINCALUME® steel). |
Length | Manufacturer guidanceSizes are cut to order. Recommended maximum runs are 17 m for dark-coloured sheeting and 24 m for light-coloured sheeting. Allow for a manufacturing tolerance of ±0 to 15 mm. |
Span | 600 mm. 900 mm. 1200 mm. 1500 mm. 1800 mm. Manufacturer guidanceUse in conjunction with Design Notes. Dependent on fastener frequency, span type and support thickness. |
Frame or support | Timber supports. Guidance for specification option: Use 14 - 10 x 90 mm Hex Head Type 17 with seal as fasteners. 1.2 mm to 3.0 mm BMT steel supports. Guidance for specification option: Use 12 - 14 x 80 mm Hex Tek® Type 17 with seal as fasteners. |
Weather conditions | Manufacturer guidanceContact local manufacturer if to be used within 1 km of industrial, chemical, marine or corrosive environments. |
Compatibility | Manufacturer guidanceHi-Deck 650® is not compatible with lead, copper, bare metal and some chemically treated timbers. |
Sustainability data
Country of product manufacture | Australia |
Literature
Hi-Deck 650 Design Guide
COLORBOND® Colour Range
