Name: Corodek®
Brand: Metroll
SKU: ms9HYdeYz6oxtEqsCLd1Ju

Shape

Rectangle.

Material

Steel.

Size

Sizes are cut to order, dependent on load limit regulations set by local transport authorities.

Uniclass

Pr_25_71_51_89 Steel profiled sheetPrimary

SpecPack

07600 Metal Roofing, Siding and Roof Plumbing

NATSPEC National Classification System

0421 Roofing - Combined

0423 Roofing – Profiled Sheet Metal

0436 Cladding – Profiled and Seamed Sheet Metal

0431 Cladding - Combined

SpeedSpec

07462 Cladding External Walls

07610 Roofing and Roof Plumbing

Grade

G550.

Coating class

AM150.

Base Metal thickness (BMT)

0.35 mm.

Guidance for specification option:

Subject to availability; check with local manufacturer.

0.42 mm.

Guidance for specification option:

Maximum spans:

Roofing: 900 mm for end span, 1200 mm for internal span.
Walling: 2200 mm for end span, 2700 mm for internal span.

0.48 mm.

Guidance for specification option:

Maximum spans:

Roofing: 1300 mm for end span, 1700 mm for internal span.
Walling: 2400 mm for end span, 2700 mm for internal span.

Manufacturer guidance

If installed as roofing, minimum pitch of 5° (1 in 12) is required. Maximum spans are based on N2 wind category and 1.5 mm substrate.

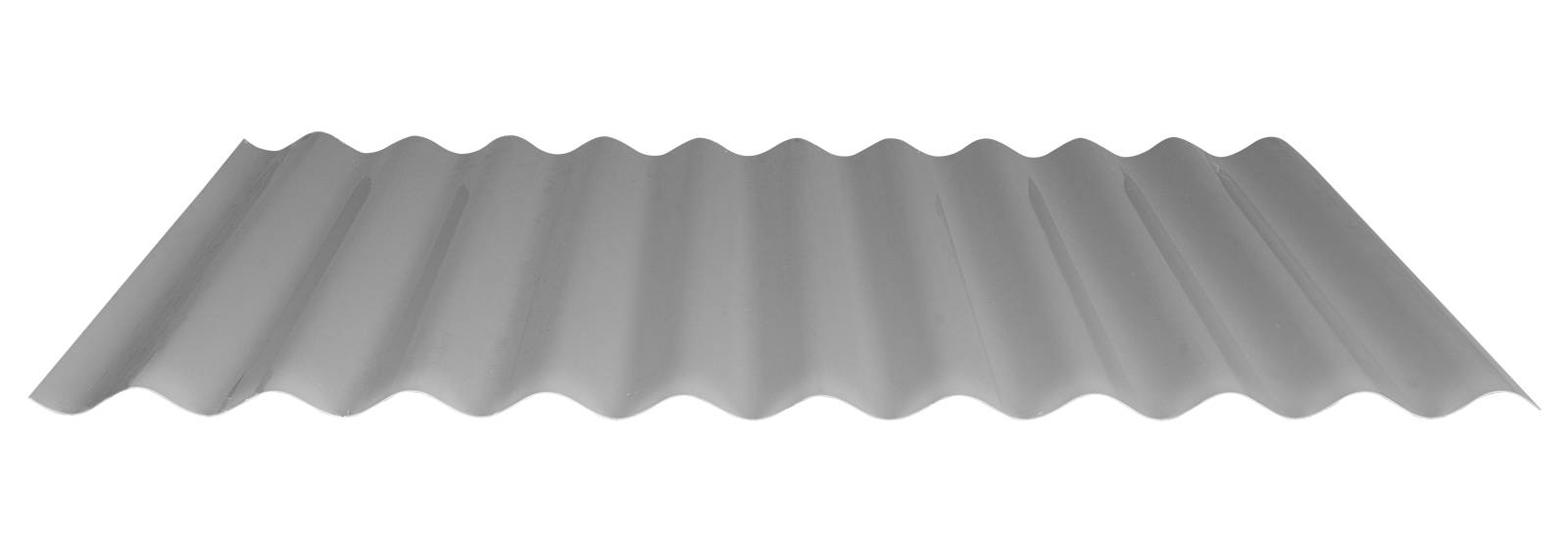

Profile

Form

Sinusoidal.

Height

16 mm.

Cover width

762 mm.

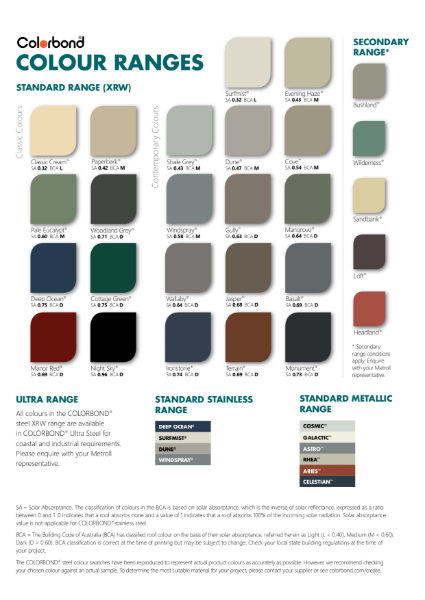

Colour

Manufacturer guidance

Available in a range of COLORBOND® steel colours.

Comes in standard aluminium colour for ZINCALUME® steel.

Material

COLORBOND® steel.

ZINCALUME® steel.

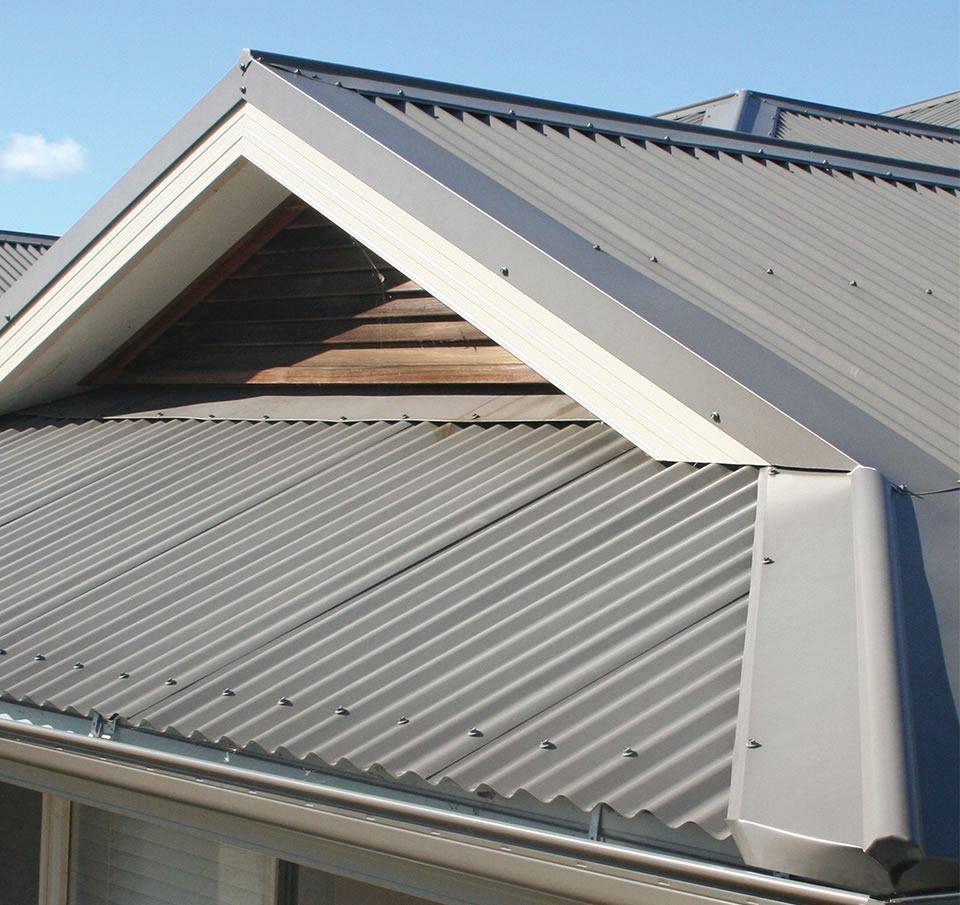

Category of use

Roofing.

Walling.

Mass

4.35 kg/m² (0.42 mm COLORBOND® steel).

4.93 kg/m² (0.48 mm COLORBOND® steel).

4.28 kg/m² (0.42 mm ZINCALUME® steel).

4.81 kg/m² (0.48 mm ZINCALUME® steel).

Length

Manufacturer guidance

Sizes are cut to order, dependent on load limit regulations set by local transport authorities. Recommended maximum runs are 17 m for dark-coloured sheeting and 24 m for light-coloured sheeting.

Manufacturing tolerances of ±10 mm in length and ±4 mm in width.

Span

600 mm.

900 mm.

1200 mm.

1500 mm.

1800 mm.

Manufacturer guidance

Use in conjunction with Design Notes. Dependent on fastener frequency, span type and support thickness.

Frame or support

Timber supports.

Guidance for specification option:

Roofing fasteners: M6-11 x 50 mm Roof Zips® Hex Head with seal.
Walling fasteners: M6-11 x 25 mm Roof Zips® Hex Head with seal (Valley Fix).
Side lap fasteners (where required): 10–16 x 16 mm self-drilling screws, or 3.2 mm sealed blind aluminium rivet.

0.48 mm to 1.5 mm BMT steel supports.

Guidance for specification option:

Roofing fasteners: M6-11 x 50 mm Roof Zips® Hex Head with seal.
Walling fasteners: M6-11 x 25 mm Roof Zips® Hex Head with seal (Valley Fix).
Side lap fasteners (where required): 10–16 x 16 mm self-drilling screws, or 3.2 mm sealed blind aluminium rivet.

1.5 mm to 4.5 mm BMT steel supports.

Guidance for specification option:

Roofing fasteners: M5.5 x 39 mm AutoTek® Hex Head with seal.
Walling fasteners: 10-16 x 16 mm Hex Head with seal (Valley Fix).
Side lap fasteners (where required): 10–16 x 16 mm self-drilling screws, or 3.2 mm sealed blind aluminium rivet.

Weather conditions

Manufacturer guidance

Contact local manufacturer if to be used within 1 km of industrial, chemical, marine or corrosive environments.

Material	COLORBOND® steel. ZINCALUME® steel.
Category of use	Roofing. Walling.
Mass	4.35 kg/m² (0.42 mm COLORBOND® steel). 4.93 kg/m² (0.48 mm COLORBOND® steel). 4.28 kg/m² (0.42 mm ZINCALUME® steel). 4.81 kg/m² (0.48 mm ZINCALUME® steel).
Length	- Manufacturer guidance Sizes are cut to order, dependent on load limit regulations set by local transport authorities. Recommended maximum runs are 17 m for dark-coloured sheeting and 24 m for light-coloured sheeting. Manufacturing tolerances of ±10 mm in length and ±4 mm in width.
Span	600 mm. 900 mm. 1200 mm. 1500 mm. 1800 mm. 2100 mm. 2400 mm. 2700 mm. Show more Manufacturer guidance Use in conjunction with Design Notes. Dependent on fastener frequency, span type and support thickness.
Frame or support	Timber supports. Guidance for specification option: Roofing fasteners: M6-11 x 50 mm Roof Zips® Hex Head with seal. Walling fasteners: M6-11 x 25 mm Roof Zips® Hex Head with seal (Valley Fix). Side lap fasteners (where required): 10–16 x 16 mm self-drilling screws, or 3.2 mm sealed blind aluminium rivet. 0.48 mm to 1.5 mm BMT steel supports. Guidance for specification option: Roofing fasteners: M6-11 x 50 mm Roof Zips® Hex Head with seal. Walling fasteners: M6-11 x 25 mm Roof Zips® Hex Head with seal (Valley Fix). Side lap fasteners (where required): 10–16 x 16 mm self-drilling screws, or 3.2 mm sealed blind aluminium rivet. 1.5 mm to 4.5 mm BMT steel supports. Guidance for specification option: Roofing fasteners: M5.5 x 39 mm AutoTek® Hex Head with seal. Walling fasteners: 10-16 x 16 mm Hex Head with seal (Valley Fix). Side lap fasteners (where required): 10–16 x 16 mm self-drilling screws, or 3.2 mm sealed blind aluminium rivet.
Weather conditions	- Manufacturer guidance Contact local manufacturer if to be used within 1 km of industrial, chemical, marine or corrosive environments.
