Panelform™ Non-Cyclonic (COLORBOND® Steel)

Name: Panelform™ Non-Cyclonic (COLORBOND® Steel)
Brand: Fielders
SKU: nS78owjSN8yUbY6Hc8Jym6

Verified by manufacturer over a year ago

COLORBOND® Steel

Fielders

Walling and ceiling profile. Available in NSW and VIC only.

Jump to:

+61 8 8292 3611 Website

Application

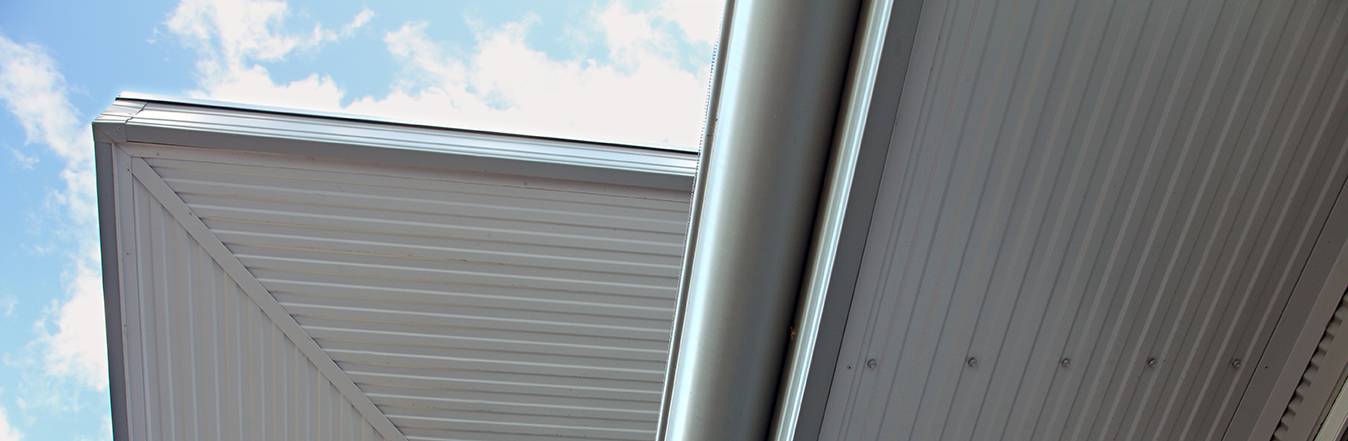

Suitable as walling and ceiling option for a variety of applications. Available in New South Wales and Victoria only.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0:1992.
AS 4040.1:1992.
AS 4040.2:1992.
AS 4040.3:2018.

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.

Fielders steel products comply with:

AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

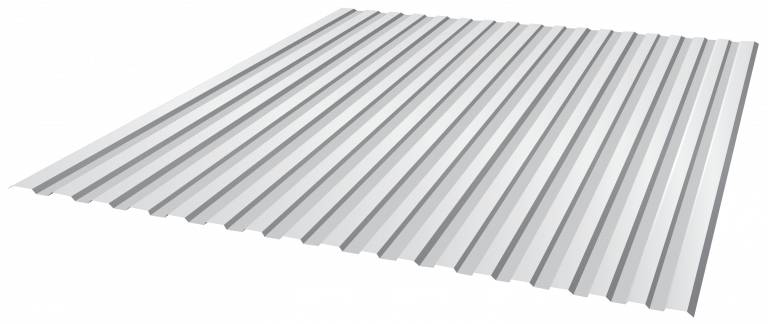

Panelform™ is a walling and ceiling profile with maximum flexibility, thereby offering more design freedom. Some of its features include:

Low-profile and highly durable walling and ceiling option.
Easily trimmed and fitted with matching capping.
Available in a range of colours and finishes.

General information

Material	Steel.
Shape	Rectangle
Warranty description	- Manufacturer guidance Covered by BlueScope material warranties, subject to project assessment and terms and conditions.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpeedSpec	07610 Roofing and Roof Plumbing 07462 Cladding External Walls
NATSPEC National Classification System	0436 Cladding – Profiled and Seamed Sheet Metal 0423 Roofing – Profiled Sheet Metal
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing

Specification data - Steel profiled sheet

Standards	To AS 1397 and AS/NZS 2728. Guidance for specification option: Installation of the cladding should be in accordance with AS 1562.1 and HB 39.
Grade	G550.
Coating class	AM100.
Base Metal thickness (BMT)	0.35 mm. 0.42 mm.
Profile	-
Form	Trapezoidal.
Height	4 mm. Manufacturer guidance Refers to rib height.
Cover width	850 mm. Manufacturer guidance Provide manufacturing tolerance of ±2 mm.
Colour	Basalt. Classic Cream. Cottage Green. Cove. Deep Ocean. Dune. Evening Haze. Gully. Ironstone. Jasper. Mangrove. Manor Red. Monument. Night Sky. Pale Eucalypt. Paperbark. Shale Grey. Surfmist. Terrain. Wallaby. Windspray. Woodland Grey.
Finish	Painted.
Solar absorptance value (maximum)	0.32–0.96. Manufacturer guidance Value is dependant on colour. Contact manufacturer for further assistance.

Material	COLORBOND® steel.
Length	- Manufacturer guidance Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. To address thermal expansion and contraction, the recommended maximum sheet length is 15 m for walling and 24 m for roofing. Provide manufacturing tolerance of ±15 mm.
Span	- Manufacturer guidance Refers to maximum allowable spans. These vary depending on base metal thickness and span type. 0.35 mm BMT walling: 1100 mm for single span and 1200 mm for end span and internal span. 0.42 mm BMT walling: 1200 mm for single span, end span and internal span.
Frame or support	Steel (1.0 to 3.5 mm). Guidance for specification option: For valley fixing (wall only), use 10-16 x 16 mm Metal Teks Hex Head or 10-16 x 25 mm Designer Head screws. If side lap fixing is necessary, use 3.2 mm sealed aluminium blind rivet. Timber Hardwood and Softwood. Guidance for specification option: For valley fixing (wall only), use 10-12 x 25 mm Type 17 Hex Head or 10-16 x 25 mm Designer Head screws. If side lap fixing is necessary, use 3.2 mm sealed aluminium blind rivet. Manufacturer guidance Refers to recommended fixing supports and fasteners. Can be installed with either four or eight fasteners for walling applications.
Mass	3.19 – 3.22 kg/m² (0.35 mm BMT). 3.80 – 3.83 kg/m² (0.42 mm BMT).
Installation	Pierced-fixed.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	100% Recyclable.
