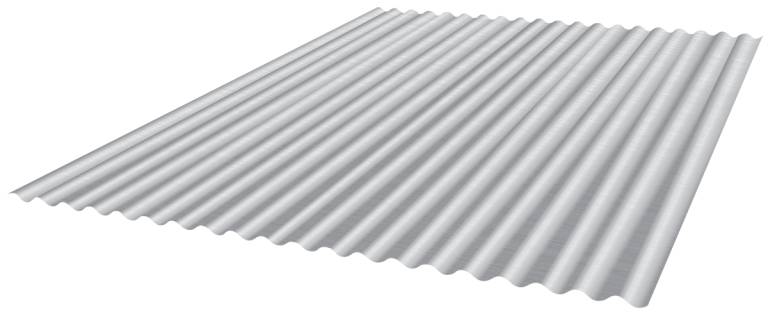

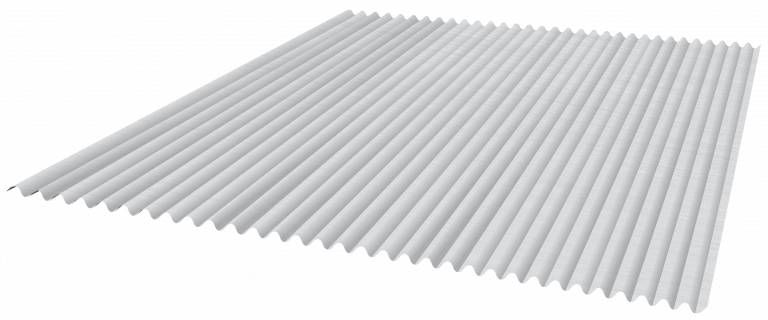

Mini-Flute Non-Cyclonic (COLORBOND® Steel)
Verified by manufacturer over a year ago
WA Only
WA Only
Traditional S walling profile. Available in SA, NSW, WA and VIC only.
Application
Suitable as wall cladding for various buildings. Available in varying profiles in South Australia, New South Wales, Western Australia and Victoria only.
AUSTRALIAN STANDARDS
Published load capacity data is derived from testing in accordance with:
- AS 4040.0:1992.
- AS 4040.1:1992.
- AS 4040.2:1992.
- AS 4040.3:2018.
Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:
- AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
- AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
- AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
- AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.
Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.
Fielders steel products comply with:
- AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
- AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
- AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.
Description
Mini-Flute is a traditional S walling profile. It can be installed vertically, horizontally or diagonally, allowing for a range of design options. Some of its features include:
- Modern appearance with a rustic look.
- Available in full lengths for quick installation.
- Available in a range of colours and finishes.
General information
Material | Steel. |
Shape | Rectangle |
Warranty description | Manufacturer guidanceCovered by BlueScope material warranties, subject to project assessment and terms and conditions. |
Uniclass | |
SpeedSpec | 07610 Roofing and Roof Plumbing 07462 Cladding External Walls |
NATSPEC National Classification System | 0436 Cladding – Profiled and Seamed Sheet Metal 0423 Roofing – Profiled Sheet Metal |
SpecPack | 07600 Metal Roofing, Siding and Roof Plumbing |
Specification data - Steel profiled sheet
Standards | To AS 1397 and AS/NZS 2728.Guidance for specification option: Installation of the cladding should be in accordance with AS 1562.1 and HB 39. |
Grade | G550. |
Coating class | AM100 (COLORBOND® steel).AM125 (ZINCALUME® steel).AM150 (COLORBOND® ultra steel).Z450 (Galvanised steel).Z600 (Heritage galvanised steel). |
Base Metal thickness (BMT) | 0.60 mm. |
Profile | |
Form | Sinusoidal. |
Height | 6 mm. |
Cover width | 807 mm.Manufacturer guidanceProvide manufacturing tolerance of ±2 to 4 mm. |
Colour | Basalt.Guidance for specification option: Available in COLORBOND® steel coating only. Classic Cream.Guidance for specification option: Available in COLORBOND® steel coating only. Cottage Green.Guidance for specification option: Available in COLORBOND® steel coating only. Cove.Guidance for specification option: Available in COLORBOND® steel coating only. Deep Ocean.Guidance for specification option: Available in COLORBOND® steel coating only. Dune.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Haze.Guidance for specification option: Available in COLORBOND® steel coating only. Gully.Guidance for specification option: Available in COLORBOND® steel coating only. Ironstone.Guidance for specification option: Available in COLORBOND® steel coating only. Jasper.Guidance for specification option: Available in COLORBOND® steel coating only. Mangrove.Guidance for specification option: Available in COLORBOND® steel coating only. Manor Red.Guidance for specification option: Available in COLORBOND® steel coating only. Monument.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Night Sky.Guidance for specification option: Available in COLORBOND® steel coating only. Pale Eucalypt.Guidance for specification option: Available in COLORBOND® steel coating only. Paperbark.Guidance for specification option: Available in COLORBOND® steel coating only. Shale Grey.Guidance for specification option: Available in COLORBOND® steel coating only. Standard steel (for ZINCALUME® steel and galvanised steel variation only).Guidance for specification option: Available in silver matt finish only. Surfmist.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Terrain.Guidance for specification option: Available in COLORBOND® steel coating only. Wallaby.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Windspray.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Woodland Grey.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Basalt (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Dune (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Monument (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Shale Grey (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Surfmist (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Aries (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Astro (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Celestian (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Cosmic (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Galactic (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Rhea (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Manufacturer guidanceColours are limited to certain finishes. |
Finish | Painted (COLORBOND® steel).Zinc-coated (ZINCALUME® steel and galvanised steel.) |
Length | Manufacturer guidanceSheets are supplied custom cut to length to suit project requirements. Transportation limits apply. To address thermal expansion and contraction, the recommended maximum sheet length is 15 m. Provide manufacturing tolerance of ±5 to 7 mm. |
Span | 450 mm. 600 mm. 900 mm. 1200 mm. 1500 mm. Manufacturer guidanceRefers to maximum recommended spans. These vary depending on wind region and span type. For Wind Region B, maximum span is 1500 mm for single span, end span and internal span. |
Frame or support | Steel (1.0 to 3.5 mm). Guidance for specification option: Affix with RippleZips screws M4.8-16 x 25 mm. Timber Hardwood and Softwood. Guidance for specification option: Affix with RippleZips screws M4.8-16 x 25 mm. Manufacturer guidanceRefers to recommended fixing supports and fasteners. Use six fasteners per sheet. |
Mass | 5.65 – 5.68 kg/m². |
Insulation | Manufacturer guidanceWhen insulation thickness up to 50 mm are installed, screws may need to be increased in number depending on insulation thickness and density. For insulation thicknesses greater than 50 mm, Fielders® recommends the use of a thermal spacer. |
Installation | Pierced-fixed. |
Optional features | Manufacturer guidanceMini-Flute can be curved by hart curving down to a radius of 500 mm in either 0.42 mm BMT, 0.48 mm BMT or 0.60 mm BMT. Contact manufacturer for further details. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100% Recyclable. |
