Isolating acoustic hanger for the construction of soundproof ceilings (reduces airborne and impact noise) with as little as 5 mm of ceiling height loss.

An isolating ceiling mount which significantly reduces transmission of noise from the floor above, but only loses as little as 5 mm of ceiling height; all work is done from the room below.

The Oscar Iso-Mount Type1 space saving acoustic hanger is a three-component assembly: the metal 'L' bracket screws to the sides of the joists, a rubber block sits in position on the 'L' bracket and breaks the path of vibration to the third component, a metal saddle that is held in position on the rubber block.

For new builds or retrofits, Oscar Iso-Mounts acoustic hangers are screw fixed to the sides of joists which allows for vertical adjustment and the minimum of ceiling height loss, typically 5–6mm: just enough for the ceiling boards to not directly touch the joists. The ceiling soundproofing is finished with two layers of 12.5mm thick plasterboard, which are screw fixed to metal channels or timber batts fixed to the mounts.

Iso-Mount Type1 space saving acoustic hangers independent acoustic site testing demonstrates comfortable compliance with Building Regulations (E&W) Approved Document E requirements for airborne and impact sound. Copies of tests are available from Oscar Acoustics.

View Iso-Mount Type1 installation guide video here: https://www.oscar-acoustics.co.uk/acoustic-solutions/soundproofing-products/oscar-iso-mount-type-1

Features and benefits:

Adjustable side of joist fixing.
All ceiling soundproofing work carried out from room below.
Fast and simple clip together acoustic hanger installation.
Soundproof ceiling appears as standard plastered ceiling.
Installation tests exceed Building Regulations (E&W) Approved Document E requirements.
Application for timber joist ceilings.
90 minute fire rating achieved.
Level ceilings across uneven joists.

Can be used in conjunction with:

Celbar Loosefill: Machine blown by Oscar Acoustics for larger areas or supplied compressed in bags for hand filling by the builder.
Oscar Seal: Acoustic intumescent acrylic sealant tested to BS EN ISO 140-3.
Oscar Foam: Compressible self-adhesive Class 0 foam used to isolate ceiling boards from walls.

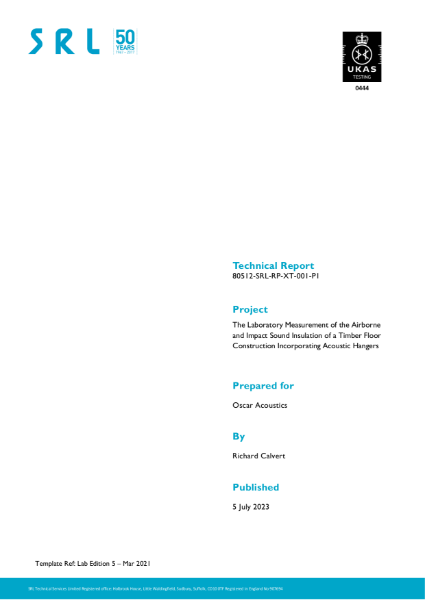

Iso-Mount Type1 Test Data - Airborne & Impact Sound Insulation of a Timber Floor Construction
