ZM Silesia Zinc Reveal Panel

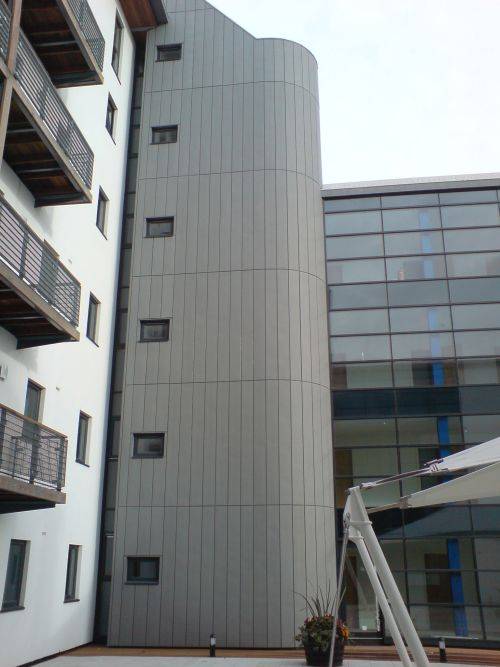

Application

  • Typically fixed back to timber or metal sub frames with a pressure equalized, ventilated cavity.
  • The reveal panel is also suitable for use as a soffit system.

Description

Reveal panel suitable for cladding applications. Installation is straightforward, one panel interlocking into the next with a concealed fixing.


Features and benefits:

  • Suitable for situations where traditional metal roofing is preferred but with a requirement for a flatter appearance than standing seam type systems.
  • Can be manufactured in various widths/ shadow gap combinations.
  • Bespoke reveal panels design is also available, consult manufacturer for details.
  • Panels can be installed horizontally, vertically or diagonally.
  • A standard range of details are also available, consult manufacturer for details.

General information

Material

Zinc titanium

Uniclass 2015

Pr_25_71_51_99 Zinc standard temper alloy stripsPrimary

CAWS

G20/950 Fascias/ barges/ soffits

G20/99 Fascias/ barges/ soffits

H31/10 Metal

H31/120 Metal

Specification data - Zinc standard temper alloy strips Enhanced data

Alloy

Zinc-titanium-copper.

Width

Up to 333 mm; insert requirements.

-

Finish

Bright rolled.

Initial bright surface that quickly forms a light grey patina, under atmospheric conditions.

Carbon.

Matt dark grey patina surface, chemically created to represent dark weathered zinc.

Pre-aged.

Matt light grey patina surface, chemically created to represent weathered zinc.

Thickness

1.0 mm.

Product Reference

ZM Silesia Zinc Reveal Panel

Orientation

Horizontal.

Vertical.

Diagonal.

Insert required angle.

Length

Insert requirements.

-

Joint width

5–20 mm; insert requirements.

5-20mm.
