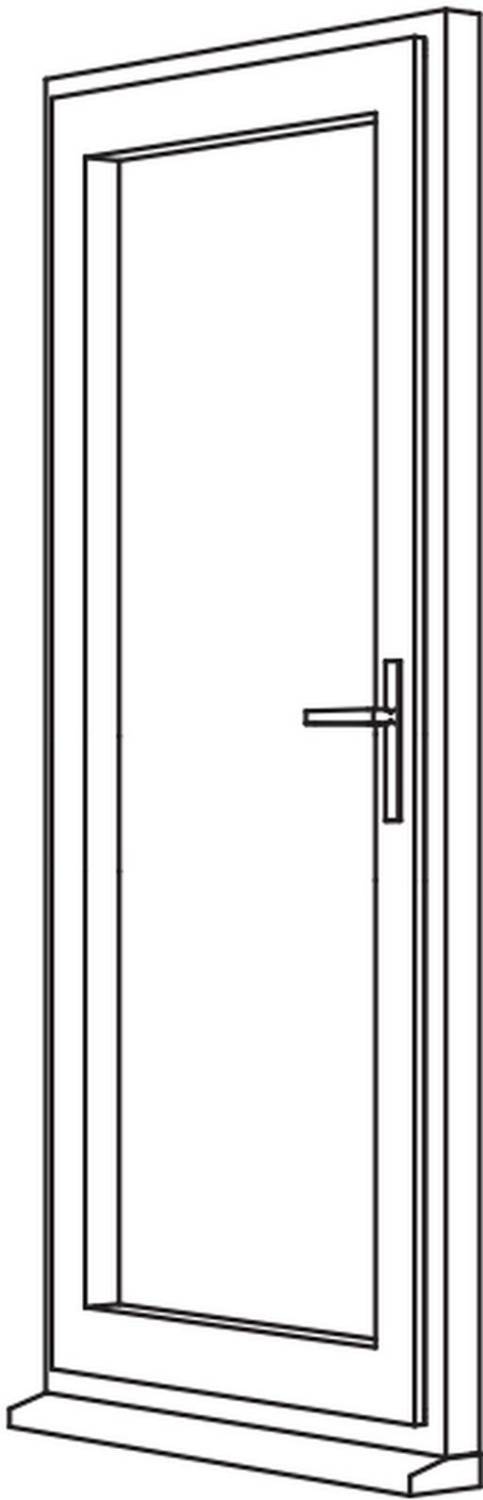

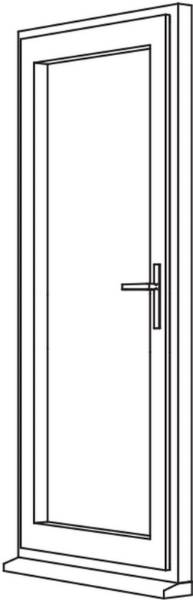

Zendow Neo Residential Door - R1 Open In

Verified by manufacturer over a year ago

Deceuninck Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

Single opening style door with a semi-flush, contemporary design frame.

Jump to:
BOS
 +44 (0)1249 816969 Website

Application

Suitable for use as a residential door.

Description

Glass fibre reinforced, PVC-U single residential doors, available in range of styles in three standard finishes.


Years of research and development has resulted in a technically advanced system ideal for commercial projects. With one sash size (108 mm), three frame sizes (54 mm, 64 mm & 70 mm), and a slim (80 mm) transom/mullion option.


Features and benefits:

  • Zendow Neo is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • Available in a range of colours and finishes.


General information

Color

White

Guidance for specification option:

Standard RAL 9016 Traffic White.

Other

Guidance for specification option:

Decoroc patented coating RAL or Wood grain foil laminate.

Material

PVC-U

Shape

Rectangle

Width

990 mm

Height

2100 mm

Uniclass

Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary
Pr_30_59_24_16 Composite doorsets

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Open In Doors / Contemporary (composite)

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets

Third party accreditation

BSI Kitemark.

Standard

To BS 7412.

Configuration

Single leaf, single action.

Doorset size

990 x 2100 mm.

Performance

-

Thermal

Guidance for specification option:

  • Whole door ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Door energy ratings E to A++ can be achieved.

Intruder resistance

-

Minimum requirement

To PAS 24.

Accessibility

Guidance for specification option:

Low threshold to suit inward and outward opening doors to improve access for the disabled and wheelchair users.

Frame

-

Materials

Steel core with PVC-U sleeve.

Linktrusion core with PVC-U sleeve.

Guidance for specification option:

Instead of traditional steel reinforcement, thermal reinforcement consisting of a recycled PVC skin, steel wires and a low density foam core to significantly increase thermal performance.

Threshold

Not required.

2976 AM3-70 open-in low threshold.

2977 AM5EX-70 open-out low threshold.

Finish and colour

White Grain.

Heritage White.

Ice Cream.

Classic Cream.

Agate Grey.

Slate Grey.

Grey.

Soft Cherry.

Quartz Grey.

Chartwell Green.

Steel Blue.

Dark Red.

Moss Green.

Vin Rouge.

Smooth Anthracite.

Black Ash.

Fir Green.

Rustic Cherry.

English Oak.

Anthracite Grey.

Golden Oak.

Antique Oak.

Grey Cedar.

Irish Oak.

Rosewood.

Nut Tree.

Silver Bullet.

Bronze Metallic.

Pyrite Mettalic.

Black Brown.

Light Ivory.

Cream.

Cement Grey.

Traffic Grey.

Concrete Grey.

Umbra Grey.

Blue Grey.

Wine Red.

Installation fasteners

Guidance for specification option:

  • Fixing can be achieved through the frame with bespoke fixing lugs or into proprietary cavity closers or sub-frame systems.
  • Fixing methods exist for timber framing, flush or check reveals.

Door leaf

-

Thickness

82 mm.

Perimeter seals

Weather.

Material

PVC-U.

Finish

White Grain.

Heritage White.

Ice Cream.

Classic Cream.

Agate Grey.

Slate Grey.

Grey.

Soft Cherry.

Quartz Grey.

Chartwell Green.

Steel Blue.

Dark Red.

Moss Green.

Vin Rouge.

Smooth Anthracite.

Black Ash.

Fir Green.

Rustic Cherry.

English Oak.

Anthracite Grey.

Golden Oak.

Antique Oak.

Grey Cedar.

Irish Oak.

Rosewood.

Nut Tree.

Silver Bullet.

Bronze Metallic.

Pyrite Mettalic.

Black Brown.

Light Ivory.

Cream.

Cement Grey.

Traffic Grey.

Concrete Grey.

Umbra Grey.

Blue Grey.

Wine Red.

Architraves

-

Material

PVC-U.

Glazing

-

Type

Single glazed.

Double glazed.

Triple glazed.

Beading

Internal.

Hardware

Guidance for specification option:

  • Will accept hardware from most manufacturers.
  • Full depth euro-groove.
  • Secure location of hardware.


Perimeter seals

EPDM weatherseal.

Installation fasteners

Guidance for specification option:

  • Fixing can be achieved through the frame with bespoke fixing lugs or into proprietary cavity closers or sub-frame systems.
  • Fixing methods exist for timber framing, flush or check reveals.


Opening

Inward.

Size

64 mm.

70 mm.

Type

Standard.

Fanlight.

Sidelight.

Manufacturer guidance

Door frame type.

Couplings

Not required.

3310 Slimline coupler.

3197 Slimline coupler.

3705 Slimline coupler.

1130 Reinforced coupler.

Show more

Manufacturer guidance

Door frame couplings.

Extensions

Not required.

2455 Head section.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3300 Add-on.

Guidance for specification option:

Allows additional clearance for hinges.

3301 Add-on.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3302 Add-on.

Guidance for specification option:

Frame build-up for conservatories.

Show more

Manufacturer guidance

Door frame extensions.

Fabrication

Fully welded construction.

Mechanically jointed transom and mullions.

Architraves

Not required.

1044 D-mould.

Guidance for specification option:

30 mm wide.

1087 Architrave.

Guidance for specification option:

40 mm wide.

1178 Quadrant.

Guidance for specification option:

19 mm.

3341 Architrave.

Guidance for specification option:

Architrave adaptor.

Show more

Bay window corner posts

Not required.

3313/3327 Slimline bay pole and adaptor.

Guidance for specification option:

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Guidance for specification option:

Angles from 90°-270°.

6920 90° Square corner post.

3196 Bay post.

Guidance for specification option:

Fixed 135° angle.

Show more

Weather bars

Not required.

3303 Head drip.

3306 Weather bar.

Projecting sill

Not required.

3338 Projecting sill.

Guidance for specification option:

150 mm.

3339 Projecting sill.

Guidance for specification option:

180 mm.

3258 End cap.

Guidance for specification option:

For 3338 Projecting sill.

3259 End cap.

Guidance for specification option:

For 3339 Projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

Guidance for specification option:

95 mm.

3257 End cap.

Guidance for specification option:

For 3337 Stub-sill.

Options

Not required.

Georgian bar.

Leaded lights.

Stainless steel security glazing clip.

Manufacturer guidance

Glazing options.

Ironmongery

As section P21.

Ventilation

Not required.

Proprietary ventilation device.

Guidance for specification option:

Insert requirement.

Thickness

5—42 mm.

Manufacturer guidance

Glazing thickness.

Air permeability

To BS EN 1026, 600 Pa (positive and negative pressure).

UK exposure category

To BS 6375-1, 2000 Pa.

Watertightness

To BS 6375-1, Class 8A.

ThermalTransmittance


1.1.

Sustainability data

Material

PVC-U

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit
 -

1

Third party certifications

BSI Kitemark

BSI Kitemark

PAS24 certificate - Doors
