Heritage 2800 Decorative French Door - F1 Open In

Heritage 2800 Decorative French Door - F1 Open In

Verified by manufacturer over a year ago

Deceuninck Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

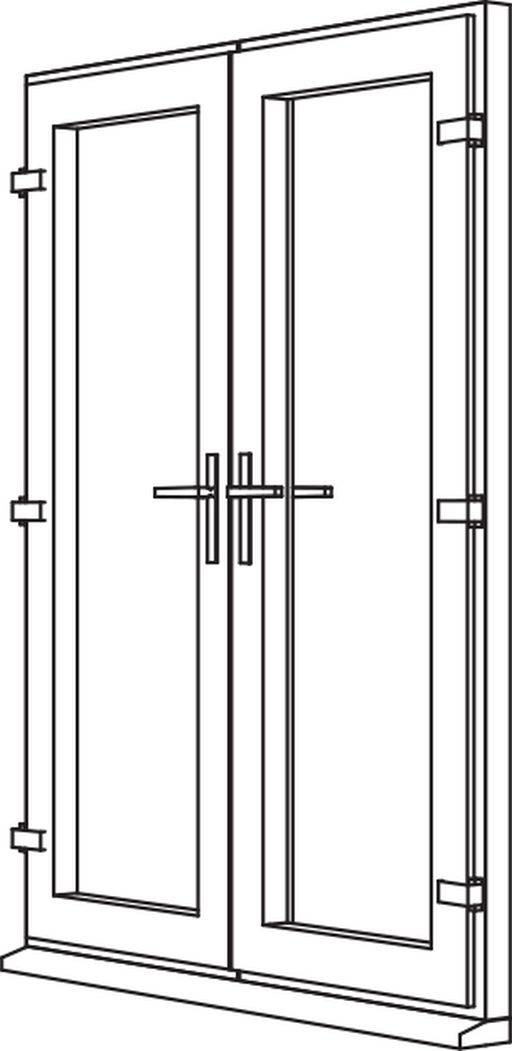

Double opening style door with a decorative design frame.

Jump to:
+44 (0)1249 816969 www.deceuninck.co.uk/en-gb/specification

Application

Suitable for commercial projects.

Description

PVC-U French doors, available in range of styles in three standard finishes.


Years of research and development has resulted in a technically advanced system ideal for commercial projects.

With two sash sizes (85 mm & 110 mm), two frame sizes (55 mm & 70 mm), a slim (70 mm) intermediate (85 mm) or large (110 mm) transom/mullion and a low threshold option.


Features and benefits:

  • The Heritage 2800 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • The system is available in 26 laminate colourways from stock providing the ultimate convenience regarding supply.
  • BSI Kitemark.


General information

Shape

Rectangle

Color

White

RAL 9016 (standard).

Other

Laminated foil, Decoroc colour (RAL).

Material

PVC-U

WarrantyDescription

Manufacturer warranty.

Size

As drawing.

Maximum tested size: double leaf. 1800 x 2150 mm

Uniclass

Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Open In Doors / Decorative (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets

Third party accreditation

BSI Kitemark.

Standard

To BS 7412.

Configuration

Double leaf, single action.

Doorset size

As drawing.

Maximum tested size; double leaf (W x H): 1800 x 2150 mm.

Coupled side panel: 1100 x 2150 mm.

Performance

-

Acoustic performance

32—43 dB.

Strength and durability

To BS 6375-3.

Thermal

  • Whole door ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Door energy ratings E to A++ can be achieved.

Intruder resistance

-

Minimum requirement

In accordance with BS 6375-3 and to PAS 24.

Accessibility

Doc M Compliant.

Low threshold to suit inward and outward opening doors to improve access for the disabled and wheelchair users.

Frame

-

Materials

Steel core with PVC-U sleeve.

Galvanized steel.

Threshold

Not required.

2976 AM3-70 open-in low threshold.

2977 AM5EX-70 open-out low threshold.

14647 Low threshold.

Perimeter seals or inserts

Impregnated foam seal/tape.

Flexible membrane.

Finish and colour

White - RAL 9016.

As standard.

Laminated foil.

Insert requirement.

Decoroc colour (RAL).

Insert requirement.

Installation fasteners

Through frame fasteners.

Fixing lug.

Frame accessories

Trickle ventilator.

Door leaf

-

Thickness

70 mm.

Core

Galvanized steel.

Perimeter seals

High-performance integral multifunctional seal/ gasket.

Material

PVC-U with glazing.

Finish

White - RAL 9016.

As standard.

Laminated foil.

Insert requirement.

Decoroc colour (RAL).

Insert requirement.

Architraves

-

Material

PVC-UE.

Finish

White - RAL 9016.

As standard.

Laminated foil.

Insert requirement.

Decoroc colour (RAL).

Insert requirement.

Glazing

-

Type

Double glazed

Single glazed

Triple glazed

Beading

Internal.

Hardware

  • Will accept hardware from most manufacturers.
  • Full depth euro-groove.
  • Secure location of hardware.

Perimeter seals

High-performance integral multifunctional seal/ gasket.

Installation fasteners

Through frame fasteners.

Fixing lug.

Accessories

Not required.

Head drip.

Weather bar.

Architrave finishing trims.

Georgian bars.

Leaded lights.

Opening

Inward.

Type

Door frame type.

Standard frame.

Fanlight frame.

Sidelight frame.

Couplings

Door frame couplings.

Not required.

3310 Slimline coupler.

3312 Slimline coupler.

3197 Slimline coupler.

3705 Reinforced coupler.

Show more

Extensions

Door frame extensions.

Not required.

2455 Head section.

Accommodates proprietary trickle ventilators.

3300 Add-on.

Allows additional clearance for hinges.

3301 Add-on.

Accommodates proprietary trickle ventilators.

3302 Add-on.

Frame build-up for conservatories.

Show more

Outer frame size

55 mm.

70 nn.

85 mm.

Transoms and mullions size

70 mm.

85 mm.

110 mm.

Architraves

Not required.

1044 D-mould.

30 mm wide.

1087 Architrave.

40 mm wide.

1178 Quadrant.

19 mm.

3341 Add-on.

Architrave adaptor.

Show more

Bay window corner posts

Not required.

3313/ 3327 Slimline bay pole and adaptor.

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Angles from 90°-270°.

6920 90° Square corner post.

3196 Bay post.

Fixed 135° angle.

Show more

Weather bars

Not required.

3303 Head drip.

3306 Weather bar.

Projecting sill

Not required.

3338 Projecting sill.

150 mm.

3339 Projecting sill.

180 mm.

3258 End cap.

For 3338 Projecting sill.

3259 End cap.

For 3339 Projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

95 mm.

3257 End cap.

For 3337 Stub-sill.

Glazing options

Glazing options.

Not required.

Georgian bar.

Leaded lights.

Ironmongery

As section P21.

Ventilation

Not required.

Proprietary ventilation device.

Insert requirements.

Thickness

Glazing thickness.

3—40 mm.

Door frame profile

Decorative.

Type

Beading type.

Decorative 28 mm.

As standard.

Other.

Other styles available for other glazing thicknesses.

Air permeability

To BS 6375-1, Class 4 (600 Pa).

UK exposure category

To BS 6375-1, Class A3 (1200 Pa).

Watertightness

To BS 6375-1, Class E1050 (1050 Pa).

ThermalTransmittance

0.97.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

1

1.3
Revit

Revit 2016

2

2.0
Download now from NBS National BIM Library

Literature

10. Specification Guide - Heritage 2800 decorative series windows & doors

10. Specification Guide - Heritage 2800 decorative series windows & doors
