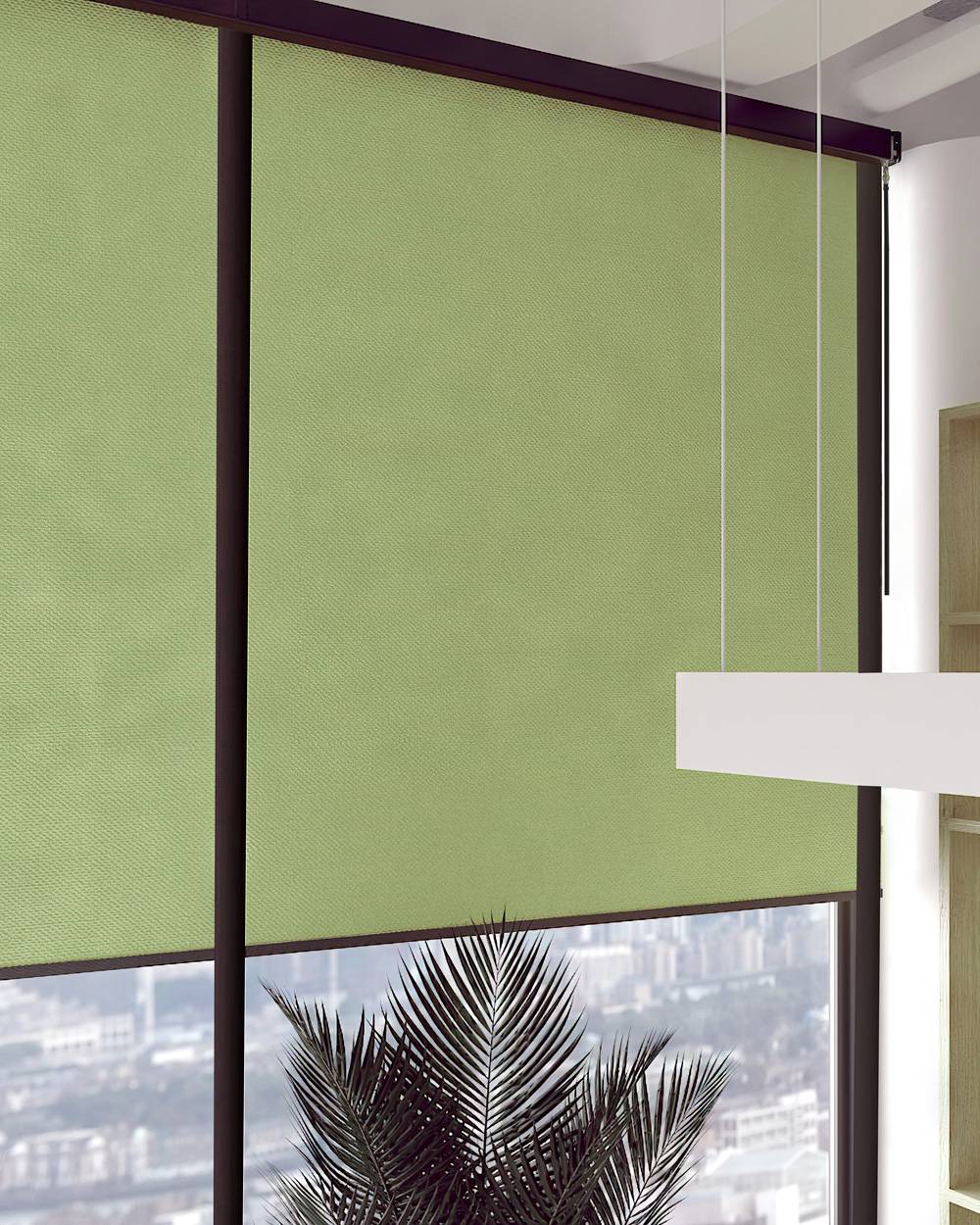

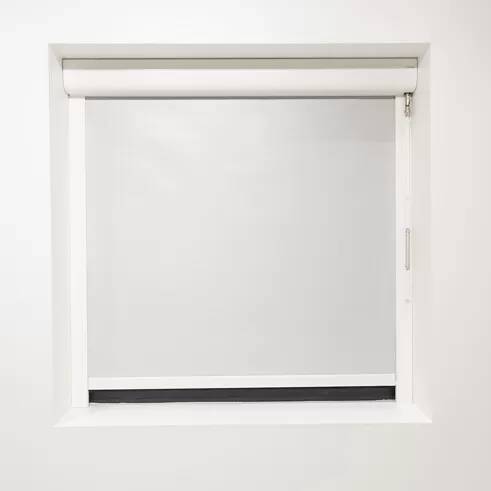

YewdaleDefiant® C44 Cassetted Roller Blind with Crank Mechanism and Side Channels

Verified by manufacturer 4 months ago

C44-120: 120 mm

Yewdale Corporation Ltd Variant:

Cassetted blind with crank.

Jump to:
BOS
+44 (0) 1268 570900 Website

Description

PART NO C44-90**C44-120


A durable and child-safe cassetted blind with aluminium side channels and powerful gear controls.


Features and benefits:

  • Features a compact, robust 1:3½ gear mechanism operated by a detachable crank handle.
  • Square or rounded aluminium headbox
  • Cassette designed for top or face fixing and accommodates 45, 53 or 70 mm grooved aluminium barrels.
  • The fabric is locked into a groove in the barrel with studs fitted at the edge of fabric to retain it within side channels.
  • Aluminium bottom bar.
  • Black or white hardware as standard.

General information

Color

Black

Guidance for specification option:

Hardware

White

Guidance for specification option:

Hardware

Manufacturer guidance

Any RAL colour available

Material

Aluminium

PVC

Polyester

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Lifetime

Uniclass

Pr_30_59_07_72 Roller blindsPrimary

CAWS

N10/70 Blinds

N10/240 Blinds

Product range

Blinds

Specification data - Roller blinds

Position

Face fixing.

Top fixing.

Dimensions (minimum width x depth)

200 x 5000 mm.

Headrail

-

Material

Aluminium.

Colour

Black.

White.

Blinds

-

Material

PVC.

Polyester.

Manufacturer guidance

Various available on request

Finish

YewdaleDefiant Eden Daylight Fabric.

YewdaleDefiant Eden Blackout Fabric.

YewdaleDefiant Roe Fabric.

YewdaleDefiant Dart Fabric.

YewdaleDefiant Thames Fabric.

YewdaleDefiant Roach.

Guidance for specification option:

Not available for vertical blinds

Colour

-

Manufacturer guidance

Various, on request

Tube

-

Material

Aluminium.

Diameter

53 mm.

70 mm.

Operation

Manual, crank.

Accessories

Tracker Fabric Retaining System.

Sustainability data

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

YewdaleDefiant® Brochure for fabric and blind systems

YewdaleDefiant® Brochure for fabric and blind systems
