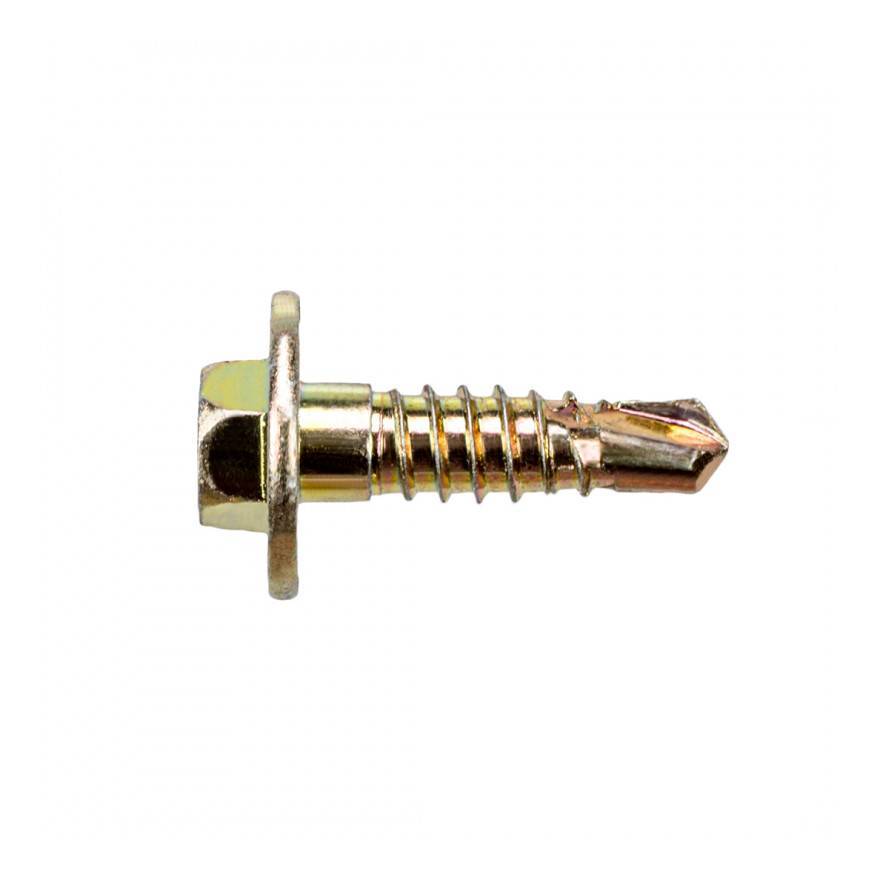

XLSH: Bracket Screw - Self-Drilling Screw
Verified by manufacturer 7 months ago
A zinc coated steel self-drilling screw for light gauge steel.
Application
- For indoor use.
- Fixing LGSSC brackets to light gauge steel.
- Fixing movement clips to light gauge steel.
Description
The XLSH screws are self-drilling screws with a hex washer head and shoulder. The screw connects over-sail movement and LGSSC brackets to light gauge steel sections.
The shoulder screw is positioned through the slots in the movement bracket and fixed to the light gauge steel sections. For the LGSSC bracket, the screw is positioned through the lower slots of the LGSSC bracket and fixed to the lower stud of the light gauge steel sections. Driver bit not included.
Features and benefits:
- Steel with yellow zinc coating.
- Hex head shoulder screw.
- Self-drilling point.
- Suitable for 450 grade hardened steel.
General information
Color | Yellow |
Finish | Coated |
Material | Steel |
Shape | Hexagon |
Length | 19 mm 22 mm |
Width | 6.2 mm |
Uniclass | |
CAWS | Z20/380 Miscellaneous screws |
Specification data - Self-drilling screws
Material | Steel. |
Finish | Zinc plated.Guidance for specification option: Yellow zinc coating. |
Head type | 5/16" Hexagonal with shoulder. |
Size | |
Diameter | 6.2 mm. |
Length | 19 mm.Guidance for specification option: XLSH34B1414-83. 22 mm.Guidance for specification option: XLSH78B1414 screws supplied with specific brackets only. Not available for individual purchase. |
Service class | 1. |
Literature
XLSH: Bracket Screw Technical Data Sheet
