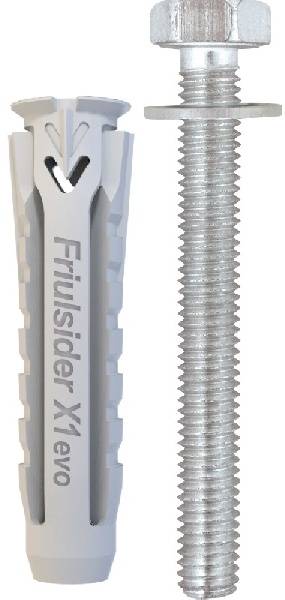

X1 EVO Plug with Hex Head/ Plug Eye Screw
Verified by manufacturer 6 months ago
8 mm diameter, metric hex head
8 mm diameter, metric hex head
Range of coated steel hex head or plug eye screws, with four-segment universal Nylon plug.
Application
Suitable for connections into:
- Concrete.
- Honeycomb brick/ lightweight honeycomb brick.
- Aerated concrete.
- Hollow light aggregate block.
- Plasterboard.
- Cell-like clay brick.
- Hollow dense aggregate block.
- Solid stone.
- Solid brick.
Description
Range of coated steel metric hex head or plug eye screws, with four-segment universal Nylon plug.
Features and benefits:
- Screws are white zinc-plated.
- Suitable for use in a range of solid or hollow substrates.
- A range of alternative heads and/or diameters and lengths is available; consult manufacturer's literature for details.
The use of plastic anchors is not recommended for permanent suspended loading applications above 40°C.
General information
Color | Silver |
Material | Steel Nylon |
Shape | Other |
Length | 30 mm 40 mm 50 mm |
Width | 6 mm 8 mm 10 mm |
Uniclass | |
CAWS | Z20/340 Masonry fixings Z20/340 Masonry fixings |
Specification data - Framing fasteners
Screw material | Carbon steel, grade 5.8.Guidance for specification option: White zinc-plated ≥5 µm, to ISO 4042. |
Sleeve material | Nylon Pa6. |
Head arrangement | Hexagon bolt.Guidance for specification option: Metric. |
Anchor length | 40 mm (60074B0804000).Guidance for specification option: Pack size: 50. |
Thread diameter | 8 mm. |
