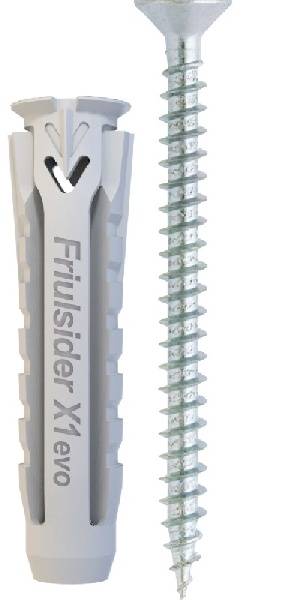

X1 EVO Plug with Countersunk Chipboard Screw
Verified by manufacturer 7 months ago
5 mm diameter
5 mm diameter

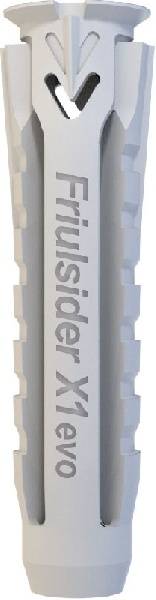

Range of steel chipboard screws, with four-segment universal Nylon plug.
Application
Suitable for connections into:
- Concrete.
- Honeycomb brick/ lightweight honeycomb brick.
- Aerated concrete.
- Hollow light aggregate block.
- Plasterboard.
- Cell-like clay brick.
- Hollow dense aggregate block.
- Solid stone.
- Solid brick.
Description
Range of steel chipboard screws, with four-segment universal Nylon plug.
Features and benefits:
- Suitable for use in a range of solid or hollow substrates.
- A range of alternative heads and/or diameters and lengths is available; consult manufacturer's literature for details.
The use of plastic anchors is not recommended for permanent suspended loading applications above 40°C.
General information
Color | Silver |
Material | Steel Nylon |
Shape | Other |
Length | 25 mm 30 mm 40 mm 50 mm |
Width | 5 mm 6 mm 8 mm 10 mm |
Uniclass | |
CAWS | Z20/380 Miscellaneous screws |
Specification data - Framing fasteners
Screw material | Cemented steel. |
Sleeve material | Nylon Pa6. |
Head arrangement | Countersunk. |
Anchor length | 25 mm (60071B0502500).Guidance for specification option: Pack size: 100. |
Thread diameter | 5 mm. |
