WT2 Type 2 General Purpose Wall Tie

Verified by manufacturer today

200 mm

Wincro Metal Industries Ltd Variant:
Product certifications:
  • DoP

    DoP

    Certificate type

Type 2 - General purpose stainless steel wall ties.

Jump to:
+44 (0)114 242 2171 Website

Application

Suitable for cavities up to 50–125 mm for domestic housing and small commercial developments up to three storeys or not higher than 15 m. WT2 can be used in areas where wind speeds are less than 56 m/s or where calculations prove it suitable. Satisfies most standard masonry to masonry, masonry to steelwork and masonry to concrete applications.

Description

Stainless steel wall ties are designed to replace the ‘double triangle tie’ as a general-purpose tie.

Features and benefits:

  • Can be used in conjunction with the Wincro WIC Insulation Retaining Clip.
  • Meets the requirements of BS EN 845-1 as a Type 2 tie.
  • Has a measured dynamic stiffness of <113MN/m³, meeting the performance requirements of Building Regulations (E&W) Approved Document E as a Type B tie.
  • Assessed independently by the BRE and has NHBC approval for technical requirements.
  • CE marked to BS EN 845-1.

General information

Color

Silver

Finish

Stainless steel

Material

Stainless steel

Guidance for specification option:

Grade 1.4301 (304).

Shape

Other

Length

200 mm

225 mm

250 mm

Warranty description

25 year

Uniclass

Pr_20_85_84_19 Cavity wall tiesPrimary

CAWS

F30/214 Cavity wall ties

F30/215 Cavity wall ties used with partial fill insulation

F30/220 Wall ties

F30/24 Cavity wall ties

F30/25 Cavity wall ties used with partial fill insulation

F30/26 Wall ties

SKU Code

WT2

Specification data - Cavity wall ties

Classification data

Standard

To BS EN 845-1.

Tie type

PD 6697 Type 2 (Masonry – general purpose).

Material

Stainless steel, grade 1.4301 (304).

Guidance for specification option:

Standard.

Stainless steel, grade 1.4401 (316).

Guidance for specification option:

Optional for more corrosive environments.

Length

200 mm.

Dynamic stiffness

<113 MN/m³.

Accessories

Not required.
WIC.

Guidance for specification option:

Plastic insulation retaining clip.

Cavity size

50—75 mm.

Sustainability data

Material

Stainless steel

Guidance for specification option:

Grade 1.4301 (304).

Recyclability

Stainless steel is highly recyclable

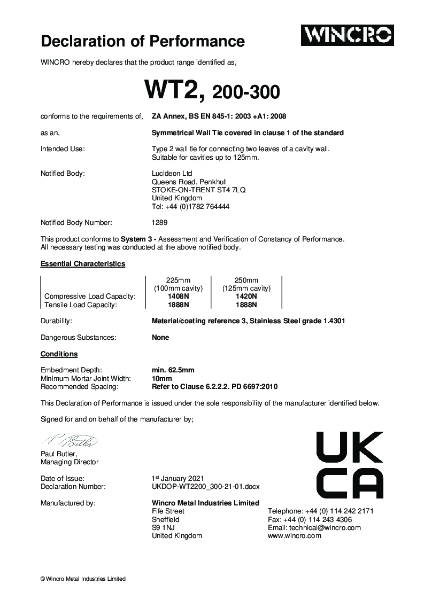

Product certifications

DoP

DoP

UKDOP-WT2200_300-21-01

Literature

Wall Ties & Restraints

Wall Ties & Restraints

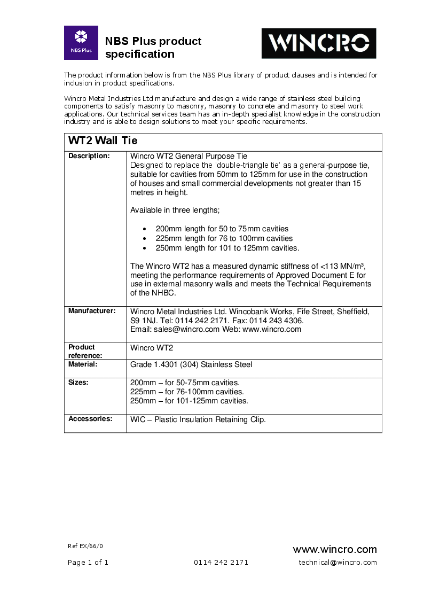

WT2-Wall-Tie-NBS-Datasheet-(EX-66-0)

WT2-Wall-Tie-NBS-Datasheet-(EX-66-0)
