Description

Features:

  • Superior quality and timeless design for prestigious washrooms.

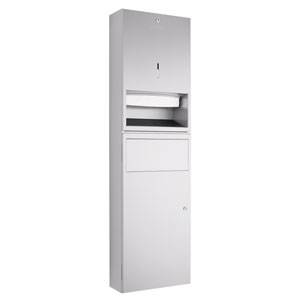

  • The combination comprises an electronic paper roll dispenser and a waste bin.
  • Full metal housing in robust, easy-to-clean stainless steel 304, satin finished, all corners fully welded.
  • Electronic paper roll dispenser designed for paper rolls 215 mm width, inner diameter 50 mm and outer diameter up to 180 mm. Paper length infinitely adjustable by electronic control from 200–1200 mm, factory setting 450 mm.
  • Residual roll function allows reserve roll to be put in operation before residual roll is completely used up.
  • Touch-free, capacitive sensor technology, sensor distance 3.5 cm adjustable idle time 1–5 s, factory setting 1 s.
  • Transformer - or battery powered options available.
  • Waste bin capacity approx 48 L, with removable mesh basket. Waste deposited from top.
  • Also available upon request in a polished finish or with other surfaces.

General information
Finish

AISI 304 stainless steel

As standard.

Polished

Material

18/10 chrome nickel stainless steel

Size

298 x 120 x 1048 mm

Uniclass 2015 Paper roll dispensers (Pr_40_70_22_61)
Specification data
Product Reference

DP4110

Transformer powered.

WP 5456

Battery powered.

Finish

AISI 304 stainless steel

As standard.

Polished

Standard product features

Dimensions (h x w):

1348 x 448 mm.

Projection:

220 mm.

Capacity:

48 L bin, 500 paper towels.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 4 1.3
Revit
Revit 2015 4 1.3
AECOsim
- 1.0
Download now from NBS National BIM Library
