Woodward Brick - Frogged brick in two distinct finishes
Verified by manufacturer 9 days ago
EPD
Certificate type
Concrete facing brick available in two finishes
Application
Suitable for above ground main external wall construction and boundary walls regardless of exposure conditions.
Description

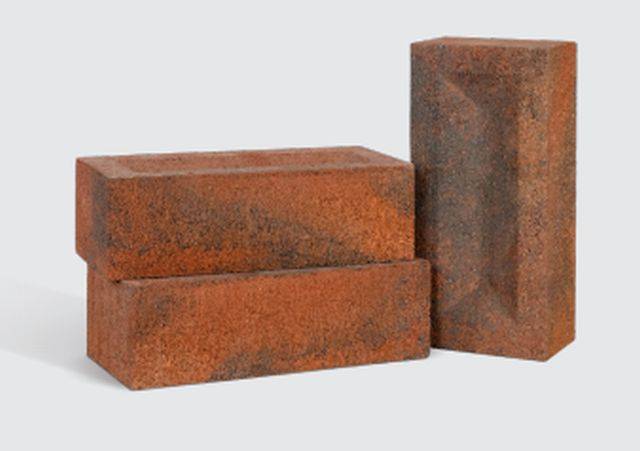

Frogged brick with a lightly glazed face and strong colour blends in two distinct finishes - smooth and antique.
Features and benefits:
- Available in a smooth finish with crisp edges for a contemporary look; and an antique finish with rumbled edges for a more traditional look.
- Woodward bricks are frogged, so they are lighter and easier to handle than solid bricks.
- The frog creates an extra recess for the mortar, resulting in a stronger bond between bricks.
- Frogged bricks reduce the environmental impact as the indentation in the brick saves on materials, which also helps reduce the curing time of the bricks.
- Mean coefficient of water absorption: 4.4 g/m²s.
Type of mortar:
Recommended ratio 6:1, sand to ordinary portland cement (OPC).
General information
Color | Brown Copper Cream Red Yellow |
Finish | Other Guidance for specification option: Rugged |
Material | Concrete |
Shape | Rectangle |
Length | 215 mm |
Width | 102.5 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/215 Concrete facing brickwork F10/5 Facing brickwork |
Product range |
Specification data - Aggregate concrete bricks
Standard | Manufactured to BS EN 771-3:2011. |
Compressive strength | |
Mean value | ≥22 N/mm².Guidance for specification option: Compressive strength (to PD 6697: 2010 and Eurocode 6): |
Thermal conductivity | 1.56 W/m·K. |
Work sizes (length x width x height) | 214 x 101.5 x 65 mm.Manufacturer guidanceSize (l x w): 214 x 101.5 mm. Depth: 65 mm. Weight: 2.9 kg. |
Tolerance category | D2.Guidance for specification option: Size tolerance: BS EN 771-3: 2011 (T1) Category D2. |
Density | |
Gross dry density | 2200 kg/m³. |
Reaction to fire | A1 Class. |
Water absorption by capillarity | 0.42 kg/m²m-1. |
Water vapour permeability | 5/ 15.Guidance for specification option: Water vapour permeability (µ, to EN 1745) |
Edges | Antique: Distressed, round edges. Smooth: Crisp, clean edges. |
Finish | Ashbrooke Antique*. Ashbrooke Smooth*. Blue*. Clarendon Antique. Clarendon Smooth. Manufacturer guidance* Minimum order quantities apply. Consult manufacturer for availability of colours and to obtain samples. |
Durability designation | F2 severe exposure. |
Water absorption | 6% Guidance for specification option: Maximum. |
Bond strength | 0.15 N/mm². |
Active soluble salts | 0.03%. |
Moisture movement | 0.46 mm/m. Guidance for specification option: Moisture movement coefficient (to BS EN 772-14: 2001 (E)): 0.46 mm/m. |
Sustainability data
Material | Concrete |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidance
|
Recyclability | 100% Manufacturer guidance
|
