Woodfac Click - Facade Cladding

Verified by manufacturer 1 month ago

Nordic Facades Third party certifications:
  • Fire Safety Certification

    Certificate type

Tailor-made click-fix facade cladding solution with wood slats.

Jump to:
07809216733 Website

Application

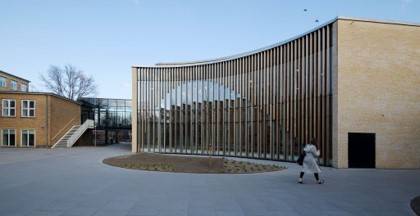

Facade cladding suitable for housing complexes, universities, hospitals, shops, parking garages and screening.


Can be fitted onto concrete and steel structures, around corners, curves, windows and doorways. Our facades can be installed horizontally, vertically or as a ceiling.

Description

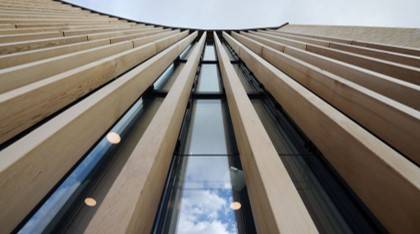

Tailor-made click-fix facade cladding solution, with wood lamella slats mounted onto an aluminium structure.


Features and benefits:

  • Provides the entire facade solution.
  • Tailored to project requirements.
  • Wood components: Uses FSC® or PEFC™ certified wood, which guarantees responsible and sustainable forestry and traceability throughout the supply chain. The thermal treatment is applied as standard (Burnblocks), and ensures dimensional stability and high lifespan, with durability up to 50+ years depending on the type of wood.
  • Auminium components: Sustainable system with Greenline Aluminium components, which requires no maintenance and has an expected lifespan of more than 70 years.
  • Suitable for fire-proof constructions - Fire End Use classification tested and approved according to European standards (BR18).
  • Offers natural pre-patination, ensuring that all of the project’s lamella are patinated evenly, regardless of position and location of the mounting.
  • Designed with clean, sharp lines.
  • Installed with a single click.
  • Lamella are designed with an optional centre-to-centre distance and are mounted horizontally, vertically or as a ceiling.
  • No visible screws.
  • Built-in thermal movement.
  • Quick and easy installation.
  • Aluminium fixing components are manufactured from 100% collected and recycled aluminium.
  • Available in a wide range of wood types including ash, pine, cedar, ayous and accoya.
  • Manufactured in accordance with EN 16755 and EN 14915.
  • Can be combined with partial solutions, e.g. perforated plates, stretched metal, trapezoidal plates, and profile plates.


System components:

  • Mounting profile.
  • Lamella.
  • Fix-plate.


Installation:

  • Mounting: The mounting profile is attached to the load-bearing facade with a maximum distance of 400 mm between attachment points.
  • Click: The lamella is pushed into the click groove, and the wide base is pushed into place. When the lamella foot is in the click groove, the lamella is tilted in one complete motion into place with a click.
  • Fix: When a lamella has been clicked into place, fix-plates are installed in all cross joints between the mounting rail and lamella. Slats are prepared for thermal movement. The thermal 0 point must be placed equally on all lamella.

General information

Color

Brown

Other

Beige

Black

Blue

Show more

Finish

Woodgrain

Pre-treated

Natural

Powder-coated

Material

Aluminium

Wood

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Other

Uniclass

Ss_25_20_08_95 Weatherboarding systemsPrimary

CAWS

B91/460 Timber cladding

H21/15 Horizontal timber weatherboarding

H21/10 Vertical timber weatherboarding

H21/116 Horizontal timber weatherboarding

H21/115 Vertical timber weatherboarding

H21/111 Horizontal timber weatherboarding

H21/110 Vertical timber weatherboarding

H20/150 Sheet cladding (attached to metal support systems)

Specification data - Weatherboarding systems

Cladding support

-

Counter battens

Aluminium battens.

Battens

Aluminium battens.

Fasteners

Aluminium mounting rails.

Guidance for specification option:

Maximum distance of 400 mm between attachment points.


The free span between the lamella fixing to the mounting rail is typically 1400–2000 mm (dependent on the dimension of the lamella and the facades structure).

Sheathing

Existing wall sheathing.

Guidance for specification option:

Suitable for concrete and steel substrates.

Weatherboarding

-

Material

Thermo-D Ash.

Guidance for specification option:

  • Density: 580 kg/m³.
  • Shape stability: High.
  • Durability class: Class 1.
  • Minimum life expectancy (vertically mounted): 45–50 years.
  • Fire classification: B-s1,d0.

Thermo-D Pine.

Guidance for specification option:

  • Density: 450 kg/m³.
  • Shape stability: Very high.
  • Durability class: Class 2.
  • Minimum life expectancy (vertically mounted): 25–30 years.
  • Fire classification: B-s2,d0.


Thermo-D Pine Premium.

Guidance for specification option:

  • Density: 450 kg/m³.
  • Shape stability: Very high.
  • Durability class: Class 2.
  • Minimum life expectancy (vertically mounted): 25–30 years.
  • Fire classification: B-s2,d0.


Western Red Cedar.

Guidance for specification option:

  • Density: 400 kg/m³.
  • Shape stability: Very high.
  • Durability class: Class 2.
  • Minimum life expectancy (vertically mounted): 25–30 years.
  • Fire classification: B-s2,d0.


Thermo-D Ayous.

Guidance for specification option:

  • Density: 375 kg/m³.
  • Shape stability: Very high.
  • Durability class: Class 2.
  • Minimum life expectancy (vertically mounted): 25–30 years.
  • Fire classification: B-s2,d0.


Accoya.

Guidance for specification option:

  • Density: 512 kg/m³.
  • Shape stability: Very high.
  • Durability class: Class 1.
  • Minimum life expectancy (vertically mounted): 50+ years.
  • Fire classification: D-s2,d2.


Accoya® is FSC® and Cradle to Cradle Gold certified, as well as holding a Nordic Swan Ecolabel. Accoya has a guaranteed durability for +50 years above ground and 25 years in soil/ underwater. The Accoya wood is from sustainable sources, CO2 neutral, and 100% recyclable.

Manufacturer guidance

Designed with an optional centre-to-centre distance, consult manufacturer for details.

Fasteners

Aluminium fix-plates.

Reveals

Aluminium.

System accessories

Not required.

Cover profiles.

Guidance for specification option:

Available for front and back profiles.

Helps to cover fastenings and provide a cleaner finish.

Installation

Three points installation systems: mount, click, fix.

Design

Design intent available.

Manufacturer guidance

Consult manufacturer and insert requirements, including project size.


Note that solutions can be incorporated for corner solutions, section divisions, and transitions with the following:

  • External corner, 45° angle.
  • External corner, L-shape.
  • Internal corner.
  • Horizontal transition.

Fire retardant treatment

Burnblocks fire retardant - B-s1,d0.

Guidance for specification option:

100% non-toxic, environmentally friendly, and naturally biodegradable.

Maintains fire technical properties (ISO 5660-1) both before and after accelerated aging tests according to test method EN 927-6, which is part of EN 16755:2017.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Denmark

Material

Aluminium

Wood

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guidance for specification option:

Aluminium components.

Greenline Aluminium is produced from 100% collected and recycled aluminium, and uses only 5% of the energy used to

produce primary aluminium.

Third party certifications

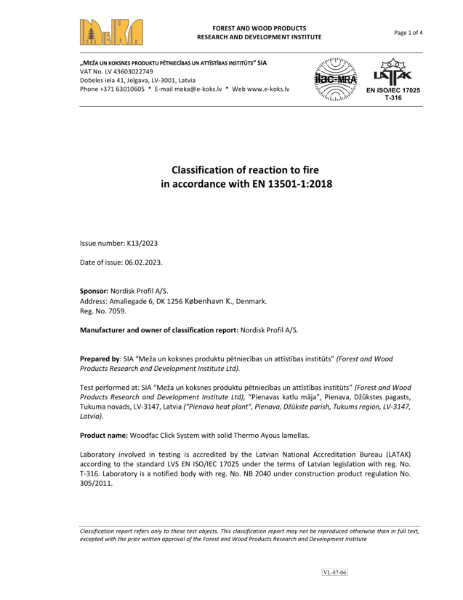

Fire Safety Certification

Fire Safety Certification

Woodfac Click System with solid Thermo Ayous Lamellas
