webertec EP pourable grout - Epoxy Resin Grout
Verified by manufacturer 6 months ago
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
High-strength, chemically-resistant grout.
Application
Suitable for the following:
- Bearings.
- Starter bars.
- Dowels.
- Balustrading.
- Crane rails.
- Machine baseplates.
- Setting-in bolts.
- Fixing runway lights.
- Situations where tight clearances add to the difficulties of obtaining secure fixings.
- Filling gaps of between 5–75 mm.
Do not apply below 5°C.
Description
Three-component pourable grout, formulated from epoxy resin and graded aggregates.
Features and benefits:
- Complies with BS EN 1504-3 and -6.
- Capable of withstanding high dynamic loads.
- High compressive and tensile strength.
- Very good chemical resistance.
- Cures within the temperature range 5–35°C.
- Negligible shrinkage factor allows use for underplate or rail grouting.
- Grout remains in contact with the underside.
- Can be placed in much thinner sections than cementitious grouts, resulting in cost savings.
- Good flow characteristics.
- UK Conformity Assessed (UKCA).
Consult manufacturer's literature for preparation and mixing guidelines, and CEN flow readings.
General information
Material | Epoxy resin Aggregate |
Shape | Formless |
Uniclass | |
CAWS | E40/430 dowel bars E40/520 Sheet joint filler L30/560 Proprietary balustrades E60/325 Grouting E42/330 Anchor bolts E40/520 Sheet joint filler |
Specification data - Epoxy resin grouts
Third-party product certification | UK Conformity Assessed (UKCA). |
CompressiveStrength | At 10°C: 70 MPa (maximum). Guidance for specification option: At 10°C: After 24 hours: 25 MPa, After 3 days: 55 MPa, After 7 days: 70 MPa. At 20°C: After 6 hours: 25 MPa, After 12 hours: 40 MPa, After 24 hours: 60 MPa, After 3 days: 70 MPa, After 7 days: 80 MPa. |
Flexural strength | At 10°C: 28 MPa (maximum). Guidance for specification option: At 10°C: After 24 hours: 12 MPa, After 3 days: 20 MPa, After 7 days: 28 MPa. At 20°C: After 24 hours: 21 MPa, After 3 days: 29 MPa, After 7 days: 35 MPa. |
TensileStrength | At 10°C: 12 MPa (maximum). Guidance for specification option: At 10°C: After 24 hours: 5 MPa, After 3 days: 7 MPa, After 7 days: 12 MPa. At 20°C: After 24 hours: 10 MPa, After 3 days: 15 MPa, After 7 days: 17 MPa. |
Adhesion bond strength | At 10°C: Dry concrete: 1.95 MPa. Damp concrete: 1.5 MPa. Guidance for specification option: After 7 days. |
Minimum bearing area | At 10°C: 95%. |
Chemical resistance | Unaffected by a wide range of acids, alkalis and industrial chemicals. Guidance for specification option:
|
Application temperature | 5–35°C. |
Working time | 40 minutes up to 5 hours (dependent on temperature). |
Standard | To BS EN 1504-3 and -6. |
Sustainability data
Material | Epoxy resin Aggregate |
Third party certifications
Literature

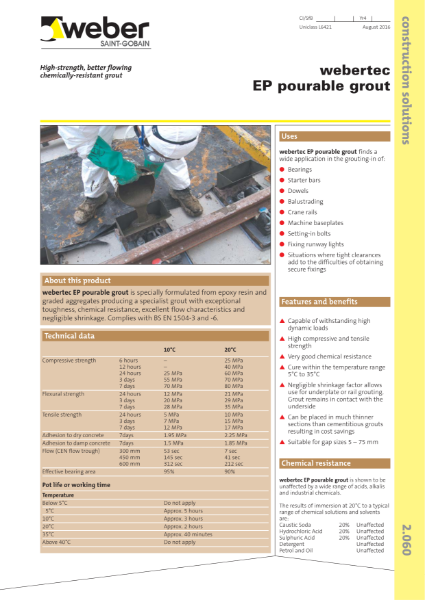

webertec EP pourable grout - Technical datasheet
