Description

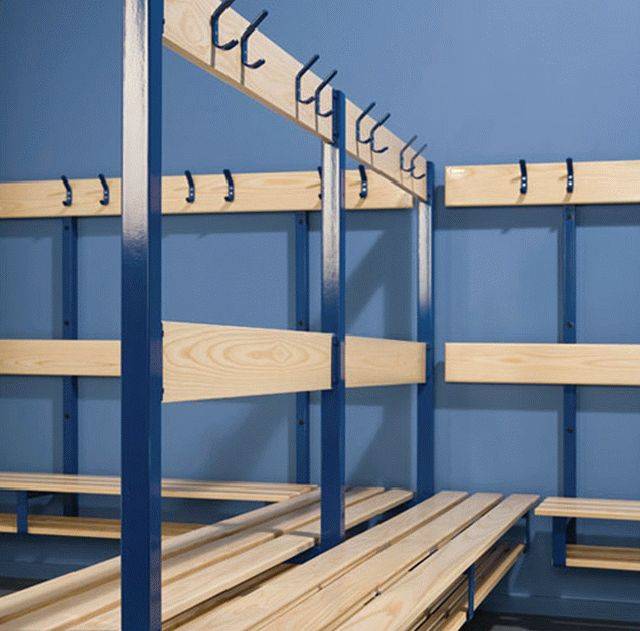

Wall-bearing changing and cloakroom units with integral shoe trays, benches, backrests and peg rails.

General information
Uniclass 2015
Linked seats (Pr_40_50_12_47)Primary
Specification data - Linked seats
Product Reference

Wall-bearing Changing and Cloakroom Units

Type

WA (300)

WA (400)

WA (450)

WA/C (300)

WA/C (400)

WA/FA (400)

WA/FS (300)

WA/H20 (400)

WA/L (300)

WA/L (360)

WA/L (400)

WA/LF (300)

WA/LF (400)

WAT (300)

WAT (400)

WB

Height

Infant

Junior

Senior

Length

___ m

As drawing ___

Colour -
Frame

Beige, RAL 1015

Black, RAL 9005

Blue, RAL 5010

Brown, RAL 8017

Green, RAL 6005

Grey, RAL 7035

Red, RAL 3000

White, RAL 9010

Yellow, RAL 1018

Seats/ Backrests/ Peg rails

Icy blue

Icy blue speckled

Pastel grey

Pastel grey speckled

Sand

Sand speckled

Silver grey

Silver grey speckled

White

White speckled

Formica, ___

Polyrey, ___

Trespa, ___

As drawing ___

As schedule ___

Pegs -
Type

A

Standard peg for general hat and coat storage.

K

Safety peg for use without bench seats.

Lollipeg

Easy coat storage and safety for small children.

T

Towel peg for shower drying areas, etc.

Arrangement

Inline at 150 mm centres

Inline at ___ mm centres

Paired at 150/ 350 mm centres

Paired at ___/ ___ mm centres

Staggered at 150 mm centres

Staggered at ___ mm centres

Other requirements

None

Adjustable feet

Adjustable beehive foot standard for A/H20 units.

Ducted shoe tray

Allows heating pipes or coils to run behind shoe trays.

Heating pipe guards

Removable, hot-dip nylon coated steel mesh guards to protect small children from heating pipes.

Omit backrests

Omit shoe trays

Number discs, colour ___

Engraved laminate number discs, to fit lollipegs.

Pigeon shoe storage

Makes defined separate shoe storage.

Secret fixing feet

Welded peg rail

For installations at high risk of vandalism.

Standard product features

Frame finish:

Hot-dip nylon coated.

Seats/ Backrests/ Peg rails:

Manufactured from prime American White Ash and finished with two coats of high performance water based lacquer, except for wet area (WA/H20) units which are manufactured from 20 mm thick solid grade laminate.

Product Options

Type:

– WA/L (300):

  • Wall mounted unit without back rest.
  • Depth: 300 mm.

– WA/L (360):

  • Wall mounted unit with back rest.
  • Depth: 360 mm.

– WA/L (400):

  • Wall mounted unit with back rest.
  • Depth: 400 mm.

– WA/C (300):

  • Wall mounted unit.
  • Peg rail fixed separately.
  • Depth: 300 mm.

– WA/C (400):

  • Wall mounted unit.
  • Peg rail fixed separately.
  • Depth: 400 mm.

– WA/LF (300):

  • Wall-bearing unit with front legs.
  • Depth: 300 mm.

– WA/LF (400):

  • Wall-bearing unit with front legs.
  • Depth: 400 mm.

– WA/H20 (400):

  • Wall-bearing unit with front legs.
  • Peg rail fixed separately.
  • Wet area specification: Zinc pre-treated steel with hot dip nylon coating, solid laminate seats, backrests and peg rails, 'beehive' concealed feet with integral height adjusters.
  • Depth: 400 mm.

– WA (300):

  • Wall-bearing unit with front legs.
  • Peg rail fixed separately.
  • Depth: 300 mm.

– WA (400):

  • Wall-bearing unit with front legs.
  • Peg rail fixed separately.
  • Depth 400 mm.

– WA (450):

  • Wall-bearing unit with front legs.
  • Peg rail fixed separately.
  • Depth: 450 mm.
  • Meets Sport England requirements.

– WA/FS (300):

  • Free-standing unit.
  • Peg rail fixed separately.
  • Depth 300 mm.

– WA/FA (400):

  • Free-standing unit.
  • Peg rail fixed separately.
  • Depth 400 mm.

– WAT (300):

  • Bag tray unit.
  • Depth: 300 mm.

– WAT (400):

  • Bag tray unit.
  • Depth: 400 mm.

– WB:

Peg rail only.

Height:

– Infant:

  • Shoe rack: 150 mm above floor level.
  • Seat: 250 mm above floor level.
  • Overall height: 1150 mm.

– Junior:

  • Shoe rack: 200 mm above floor level.
  • Seat: 400 mm above floor level.
  • Overall height: 1350 mm.

– Senior:

  • Shoe rack: 250 mm above floor level.
  • Seat: 450 mm above floor level.
  • Overall height: 1650 mm.

Seats/ Backrests/ Peg rails:

Ten standard laminate colours are available. The full ranges of colours from Trespa, Formica and Polyrey are available on request.
