Visqueen Ultimate Hydrocarbon Urban Drainage Geomembrane (UDG)

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

  • QA Certificate

    Certificate type

Visqueen

Multi-layer thermoplastic geomembrane.

Jump to:
+44 (0) 333 202 6800 www.visqueen.com
Application

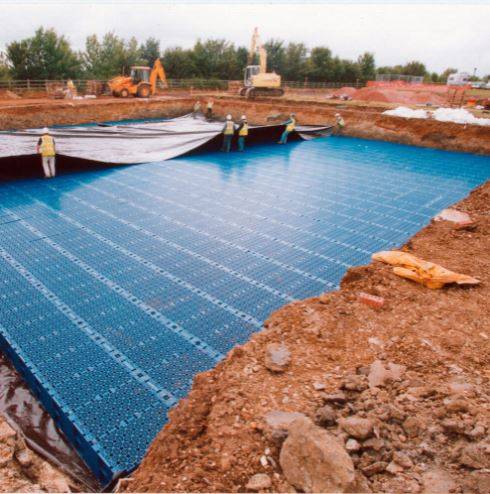

Suitable for wrapping attenuation tanks and other VOC geomembrane applications such as lagoons, canals, artificial lakes and contaminated cut-off trenches.

Description

A multi-layer thermoplastic geomembrane suitable for attenuation tanks and permeable paving systems where hydrocarbons and volatile organic compounds (VOCs) exist and a VOC decay resistant membrane is required.

When used as part of a Type C porous paving system, the membrane adds extra security as it will not suffer from erosion from the passage of hydrocarbon or VOCs from the surface above the product. In normal backfilling applications no additional protection is required, however in demanding applications, Visqueen TreadGUARD 300 should be used. Pipe penetrations should be over sealed with the Visqueen 300 mm detailing strip.

The membrane is grey in colour, 1 mm thick and supplied in 2.44 x 41 m rolls.

Features and benefits:

  • Conforms to Appendix C of CIRIA C697, C753 and C748.
  • Protects against hydrocarbon and VOC liquids and vapours.
  • Excellent welding characteristics.
  • Excellent tear and puncture resistance under high compressive loads.
  • Suitable for radon applications.
  • Can be used in SuUDS Type C porous paving infiltration systems and attenuation systems.
  • Available in eEasy to handle roll format.
  • CE Marked to EN 14909.

Applications:

Suitable for wrapping attenuation tanks and other VOC geomembrane applications such as lagoons, canals, artificial lakes and contaminated cut-off trenches.

General information
Specification data
Product Reference

Visqueen Ultimate Hydrocarbon Urban Drainage Geomembrane (UDG)

Standard product features

Roll size (w x l):

2.44 x 41 m.

Thickness:

1 mm.

Colour:

Grey and black.

Technical characteristics:

  • Methane permeability (to ISO 15105-1): Pass.
  • Puncture resistance (to BS EN ISO 12236:2006): 2850 N.
  • Impact resistance (to EN 12691): Method A hard surface: 750 mm; method B soft surface: >2000 mm.
  • Watertightness (to EN 1928): Pass (at 60 kPa).
  • Tensile yield strength (to ASTM D4885-01): Machine direction: 11.9 kN/m; cross direction: 12.7 kN/m.
  • Elongation at break (to ASTM D4885-01): Machine direction: >500%; cross direction: >501%.
  • Tear resistance - trouser method A (to BS ISO 34-1): Machine direction: 79.6 kN/m; cross direction: 75.8 kN/m.
  • Tear resistance - angle method B (to BS ISO 34-1): Machine direction: 128.3 N; cross direction: 126.9 N.
  • Benzene, toluene, ethyl benzene, m,p xylene, hexane, vinyl chloride, tetrachloroethene (PCE), trichloroethene (TCE) and naphthalene permeability (to ISO 15105-2): <1 ml/m²/d.

Third party certifications
  • 94/3059
  • CE: Marked - EN 14909
