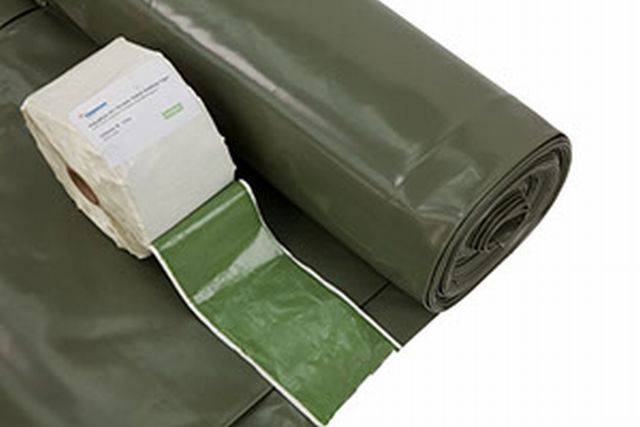

Visqueen Aquaflow SC Membrane™

Application

Used in Sustainable Urban Drainage Systems (SUDS) to prevent run-off and flooding and as a method of collecting and cleaning storm water.

Description

A 2000 gauge copolymer thermoplastic membrane that provides an impervious layer ensuring attenuation of collected storm water.


Features and benefits:

  • Restricts water entering the sub-grade and preserves sub-grade structural integrity.
  • Installation options including tape jointing.
  • In applications where a high level of waterproofing integrity is required, the membrane should be laid with welded joints.
  • Manufactured under a Quality Management System approved to ISO 9001: 2008; Environmental System 14001:2004 and BS OHSAS 18001:2007.

General information

Finish

Loose laid sheet

Color

Green

Material

Copolymer thermoplastic

Shape

Rectangular

Size

4000 x 12 500 mm

Rolls

Uniclass 2015

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/297 Waterproofing/ Damp proofing membrane

Specification data - Plastics sheets Enhanced data

Material

Copolymer thermoplastic.

Purpose

Water retention layer.

Third-party certification

To ISO 9001: 2008.

Physical properties

-

Colour

Green.

Dimensions

-

Thickness (minimum)

500 μm (2000 gauge).

Width (minimum)

4 m.

Roll length (minimum)

12.5 m.

Recycled content

90%.

Product Reference

Visqueen Aquaflow SC Membrane™

Accessories

Not required.

Corner protection units.

GX jointing tape.

PFU top hat.

UDG jointing tape.

Show more

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

90
